Attributes
Model:
4
Technical Construction:
CLAMPED
Wetted Path Material:
IRON
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size:
4.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size:
4.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
IRON
Air Side Material:
STAINLESS STEEL
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
FKM
O Rings Gasket Material:
FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure:
125.0
Max Air Pressure:
125.0

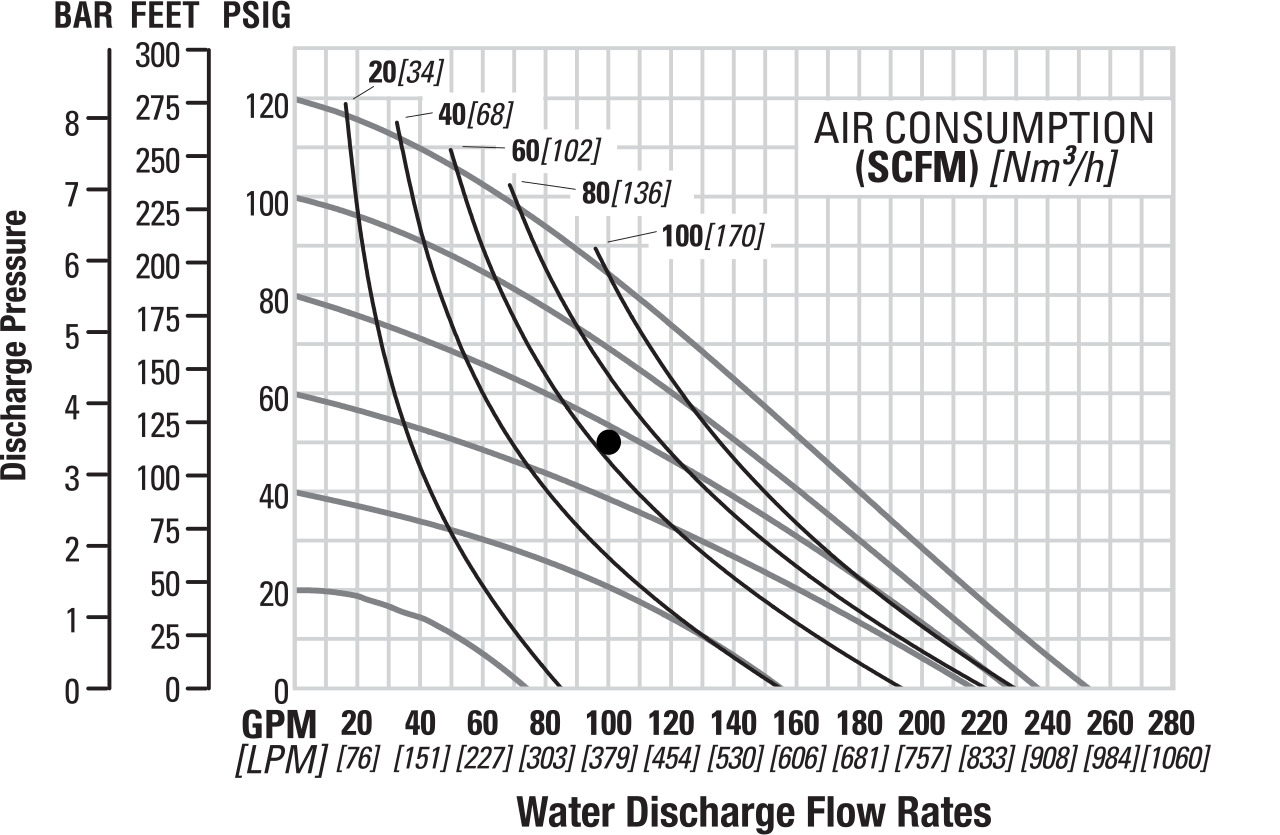

Max Flow Rate:
232.0
Flow Rate 40 Psi:
158.0
Flow Rate 50 Psi:
142.0
Flow Rate 60 Psi:
128.0
Flow Rate 70 Psi:
114.0
Flow Rate 80 Psi:
96.0
Flow Rate 90 Psi:
78.0
Flow Rate 100 Psi:
58.0
Flow Rate 120 Psi:
0.0

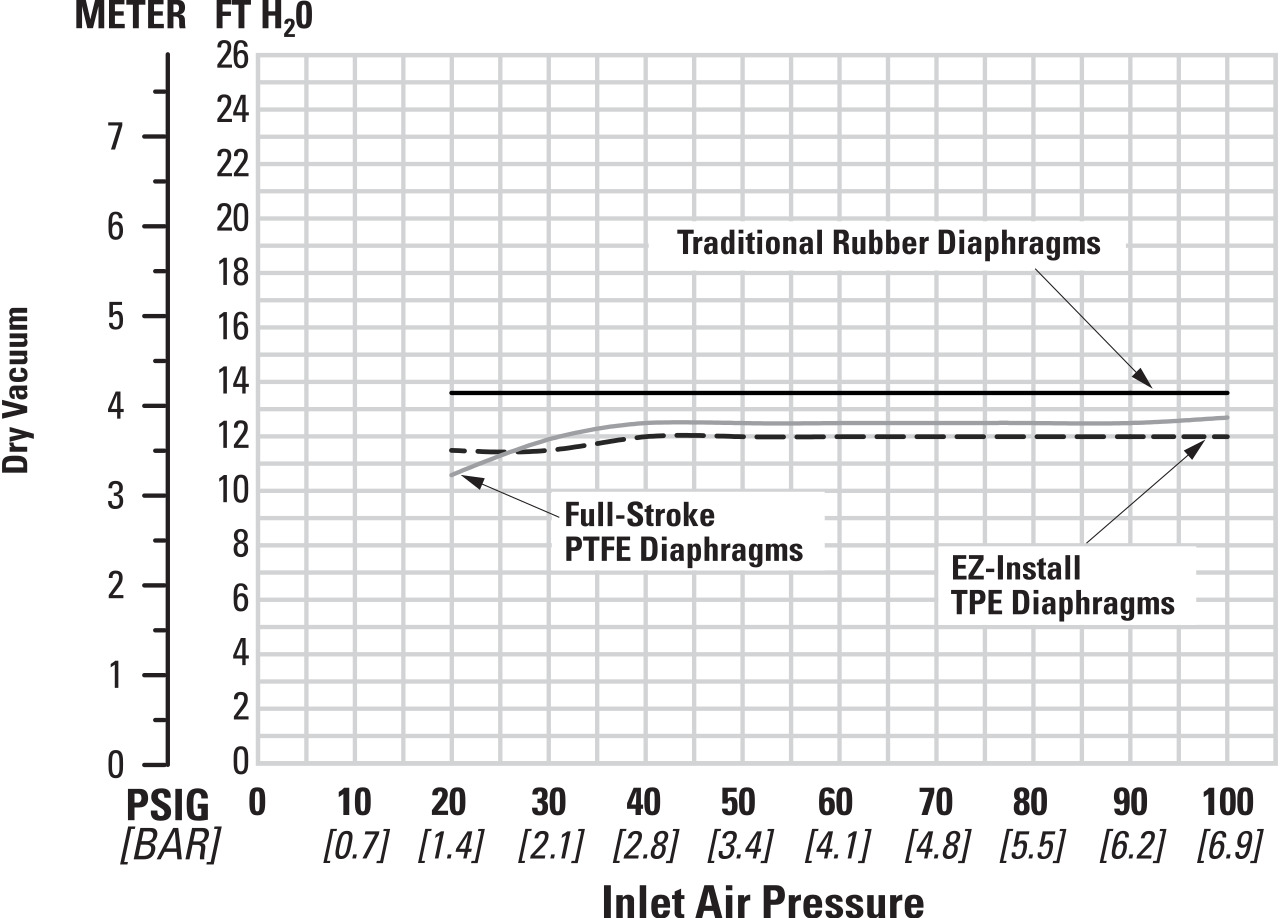

Max Suction Lift Dry:
11.33333333
Max Operating Temperature:
220.0
Min Operating Temperature:
40.0
Max Viscosity:
125000
Max Air Consumption:
140.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Country Of Origin:
UNITIED STATES
