Attributes for item 20-10051
Model (in.):
4
Technical Construction:
CLAMPED
Wetted Path Material:
IRON
Diaphragm Material:
Buna-N
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
4.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
4.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
IRON
Air Side Material:
POLYPROPYLENE
Valve Material:
POLYURETHANE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
EPDM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

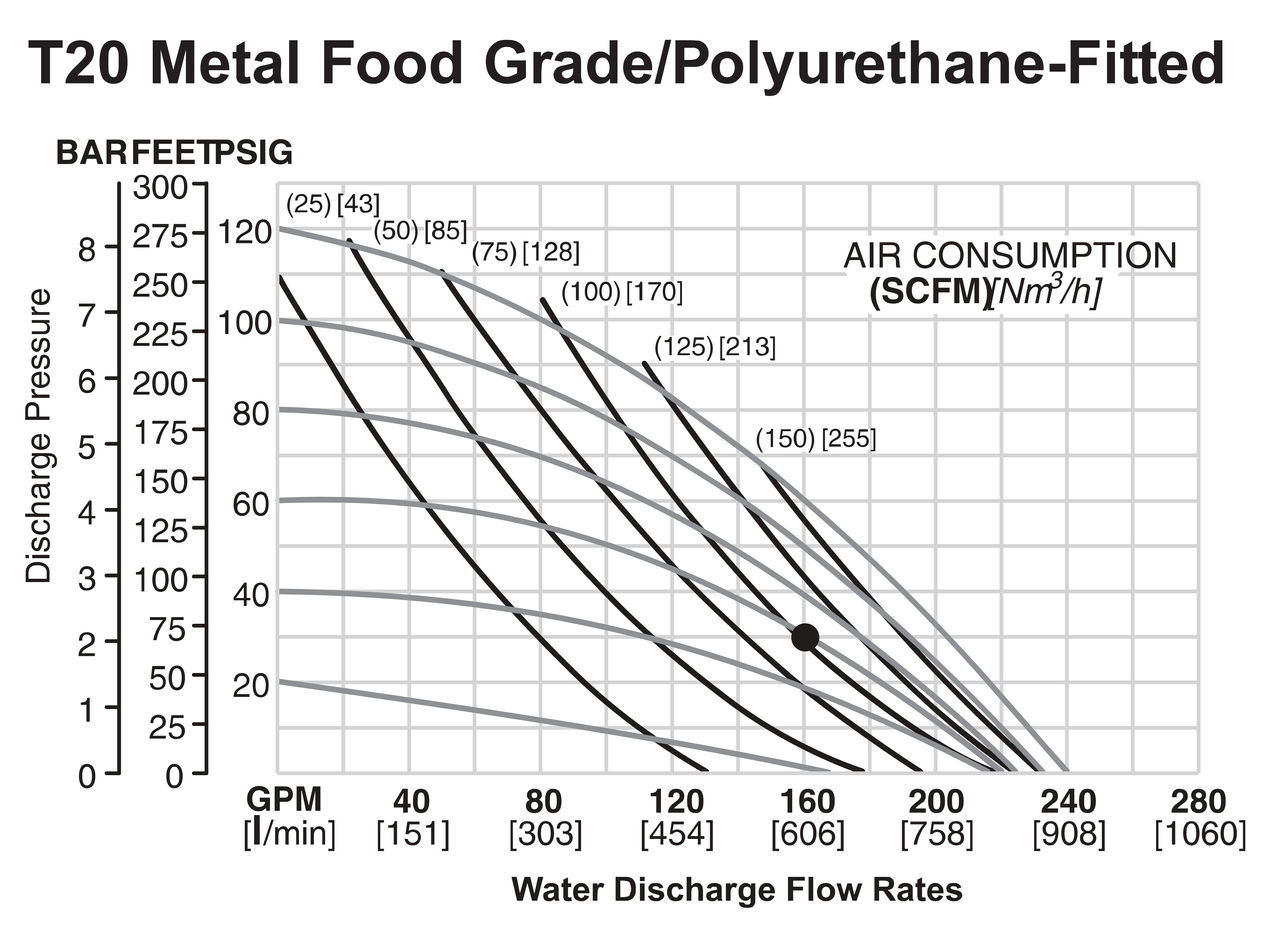

Max Flow Rate (gpm):
274.0
Flow Rate 40 Psi (gpm):
219.0
Flow Rate 50 Psi (gpm):
200.0
Flow Rate 60 Psi (gpm):
184.0
Flow Rate 70 Psi (gpm):
164.0
Flow Rate 80 Psi (gpm):
144.0
Flow Rate 90 Psi (gpm):
120.0
Flow Rate 100 Psi (gpm):
94.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
12.0
Max Operating Temperature (°F):
150.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
175.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
554
Country Of Origin:
USA
