Attributes for item 15-13138
Model (in.):
3
Technical Construction:
Bolted
Wetted Path Material:
Iron
Diaphragm Material:
Neoprene
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
DIN
Inlet Size (in.):
3.0
Inlet Orientation:
Center Horizontal Back
Discharge Size (in.):
3.0
Discharge Orientation:
Center Horizontal Front
Outer Piston Materials:
Iron
Air Side Material:
Aluminum
Valve Material:
Neoprene
Valve Type:
Flap Valve
Valve Seat MATERIAL:
Santoprene®
O Rings Gasket Material:
Neoprene
Hardware Material:
Diaphragm Dependent
Muffler Material:
Aluminum
Self Priming:
TRUE
Power Source:
Compressed Air
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

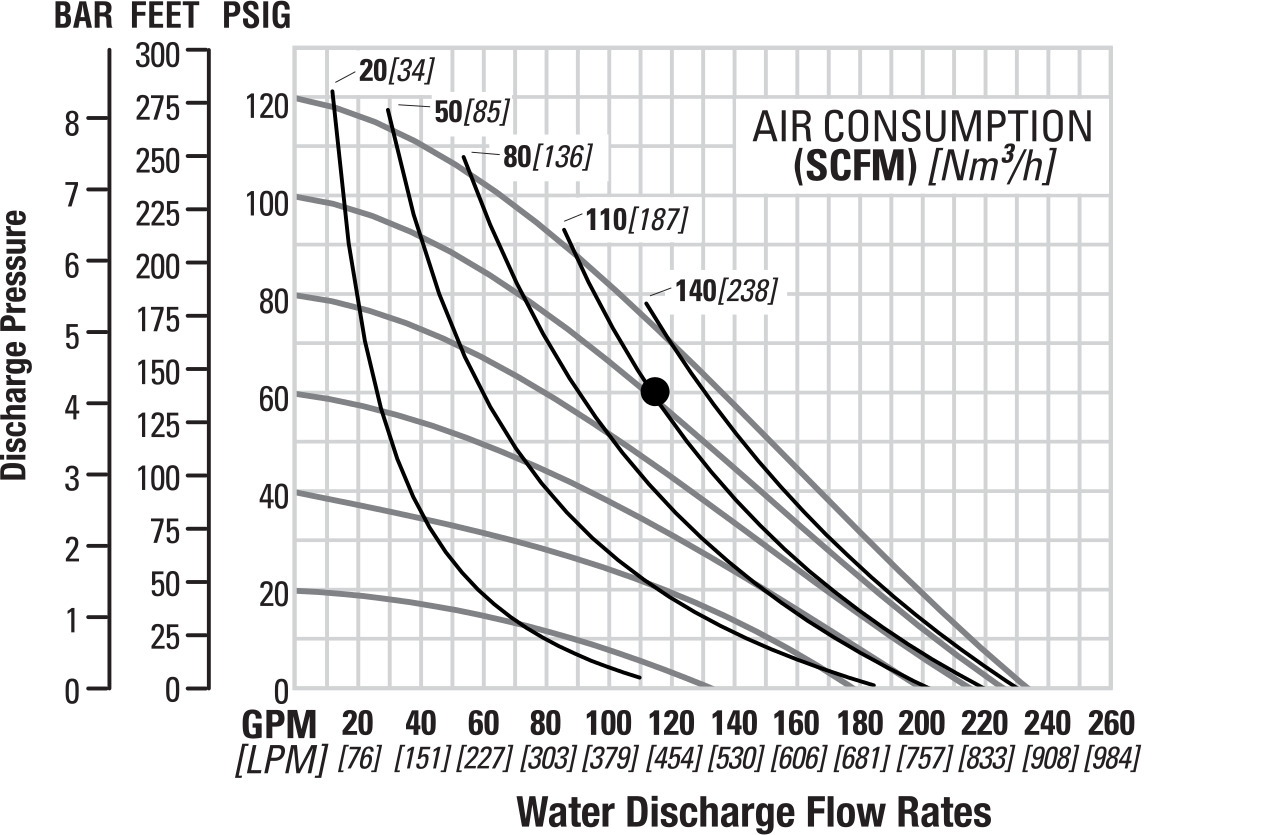

Max Flow Rate (gpm):
234.0
Flow Rate 40 Psi (gpm):
156.0
Flow Rate 50 Psi (gpm):
150.0
Flow Rate 60 Psi (gpm):
138.0
Flow Rate 70 Psi (gpm):
120.0
Flow Rate 80 Psi (gpm):
102.0
Flow Rate 90 Psi (gpm):
88.0
Flow Rate 100 Psi (gpm):
68.0
Flow Rate 120 Psi (gpm):
0.0

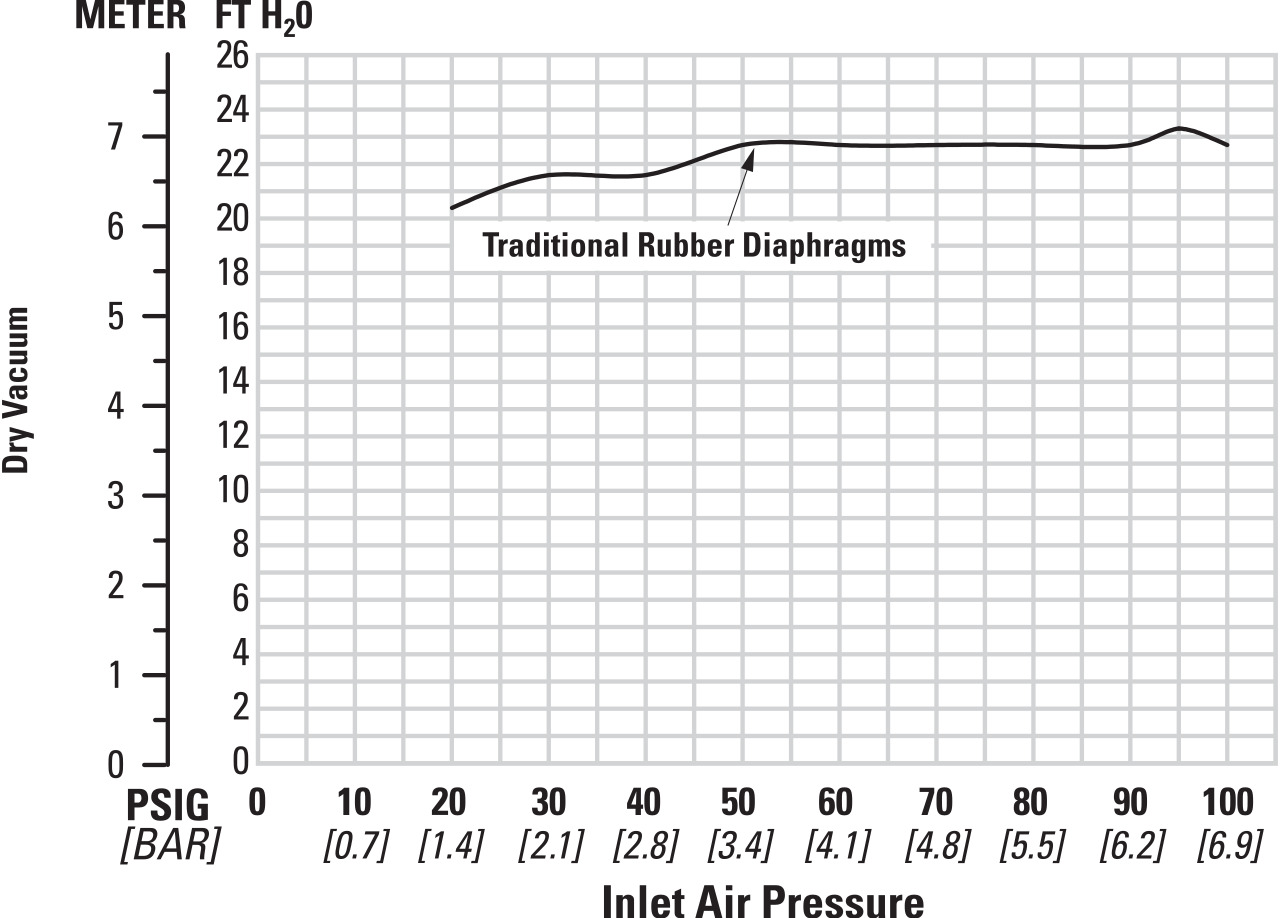

Max Suction Lift Dry (ft.):
23.3
Max Suction Lift Wet (ft.):
29.5
Max Operating Temperature (°F):
200.0
Min Operating Temperature (°F):
0.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
90.0
Atex Rated:
TRUE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Weight (lbs):
397
Country Of Origin:
USA
