Attributes for item 15-12938
Model (in.):
3
Technical Construction:
BOLTED
Wetted Path Material:
IRON
Diaphragm Material:
Neoprene
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
3.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
3.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
IRON
Air Side Material:
ALUMINUM
Valve Material:
NEOPRENE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
NEOPRENE
O Rings Gasket Material:
NEOPRENE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.25
Max Flow Rate (gpm):
271.0
Flow Rate 40 Psi (gpm):
186.0
Flow Rate 50 Psi (gpm):
166.0
Flow Rate 60 Psi (gpm):
146.0
Flow Rate 70 Psi (gpm):
128.0
Flow Rate 80 Psi (gpm):
110.0
Flow Rate 90 Psi (gpm):
88.0
Flow Rate 100 Psi (gpm):
68.0
Flow Rate 120 Psi (gpm):
0.0

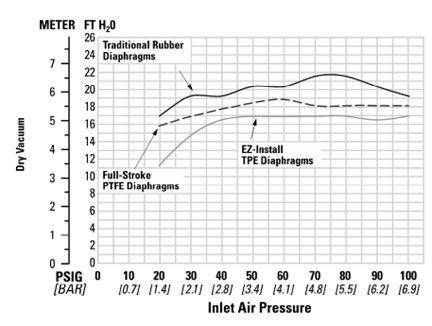

Max Suction Lift Dry (ft.):
22.1
Max Operating Temperature (°F):
200.0
Min Operating Temperature (°F):
0.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
110.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Dimensions:
37.25" W X 24.25" L X 47" H
Country Of Origin:
UNITIED STATES
