Attributes for item 15-12770
Model (in.):
3
Technical Construction:
Bolted
Wetted Path Material:
Stainless Steel
Diaphragm Material:
Santoprene®
Diaphragm Design:
EZ-INSTALL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
3.0
Inlet Orientation:
Center Horizontal Back
Discharge Size (in.):
3.0
Discharge Orientation:
Center Horizontal Front
Outer Piston Materials:
Stainless Steel
Air Side Material:
Aluminum
Valve Material:
Santoprene®
Valve Type:
Valve Ball
Valve Seat MATERIAL:
Santoprene®
O Rings Gasket Material:
Santoprene®
Hardware Material:
Stainless Steel
Muffler Material:
None
Self Priming:
TRUE
Power Source:
Natural Gas | Compressed Air
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

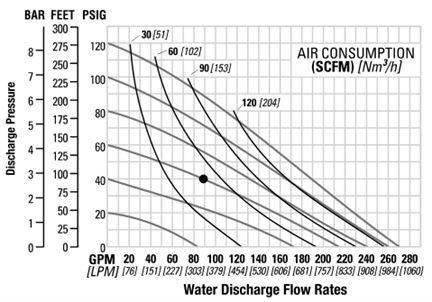

Max Flow Rate (gpm):
271.0
Flow Rate 40 Psi (gpm):
190.0
Flow Rate 50 Psi (gpm):
170.0
Flow Rate 60 Psi (gpm):
150.0
Flow Rate 70 Psi (gpm):
130.0
Flow Rate 80 Psi (gpm):
109.0
Flow Rate 90 Psi (gpm):
88.0
Flow Rate 100 Psi (gpm):
62.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
17.6
Max Suction Lift Wet (ft.):
28.4
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
140.0
ATEX Rated:
FALSE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
TRUE
Country Of Origin:
USA
Family:
CSA Certified
Lead Time (days):
15
