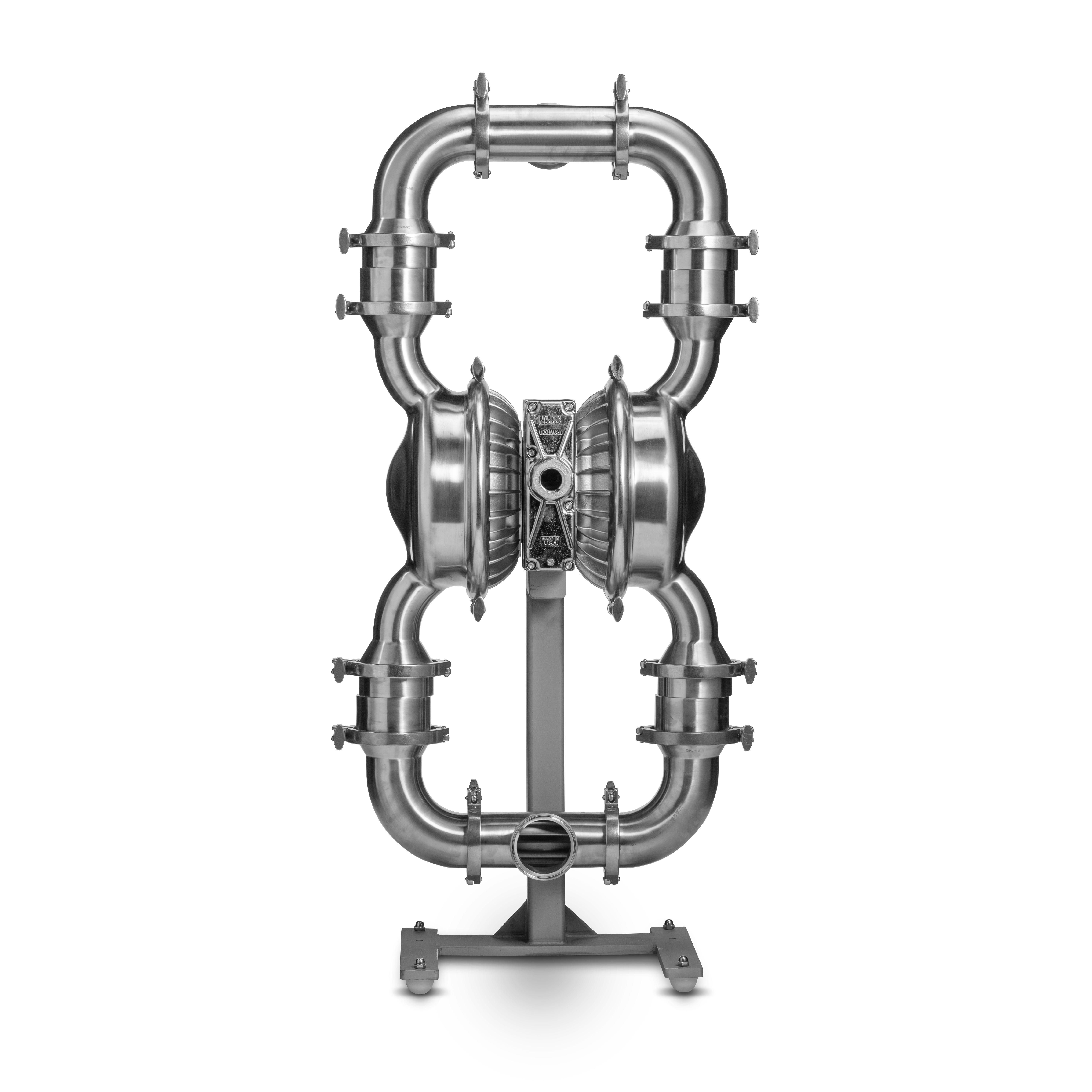

Attributes for item 15-12672
Model (in.):
3
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Santoprene®
Diaphragm Design:
IPD SANITARY
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
3.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
3.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
NO OUTER PISTON
Air Side Material:
ALUMINUM|NICKEL PLATED
Valve Material:
SANITARY Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
SANITARY EPDM
O Rings Gasket Material:
SANITARY EPDM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
-40.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Dimensions:
25" W X 22" L X 51.5" H
Country Of Origin:
UNITIED STATES
