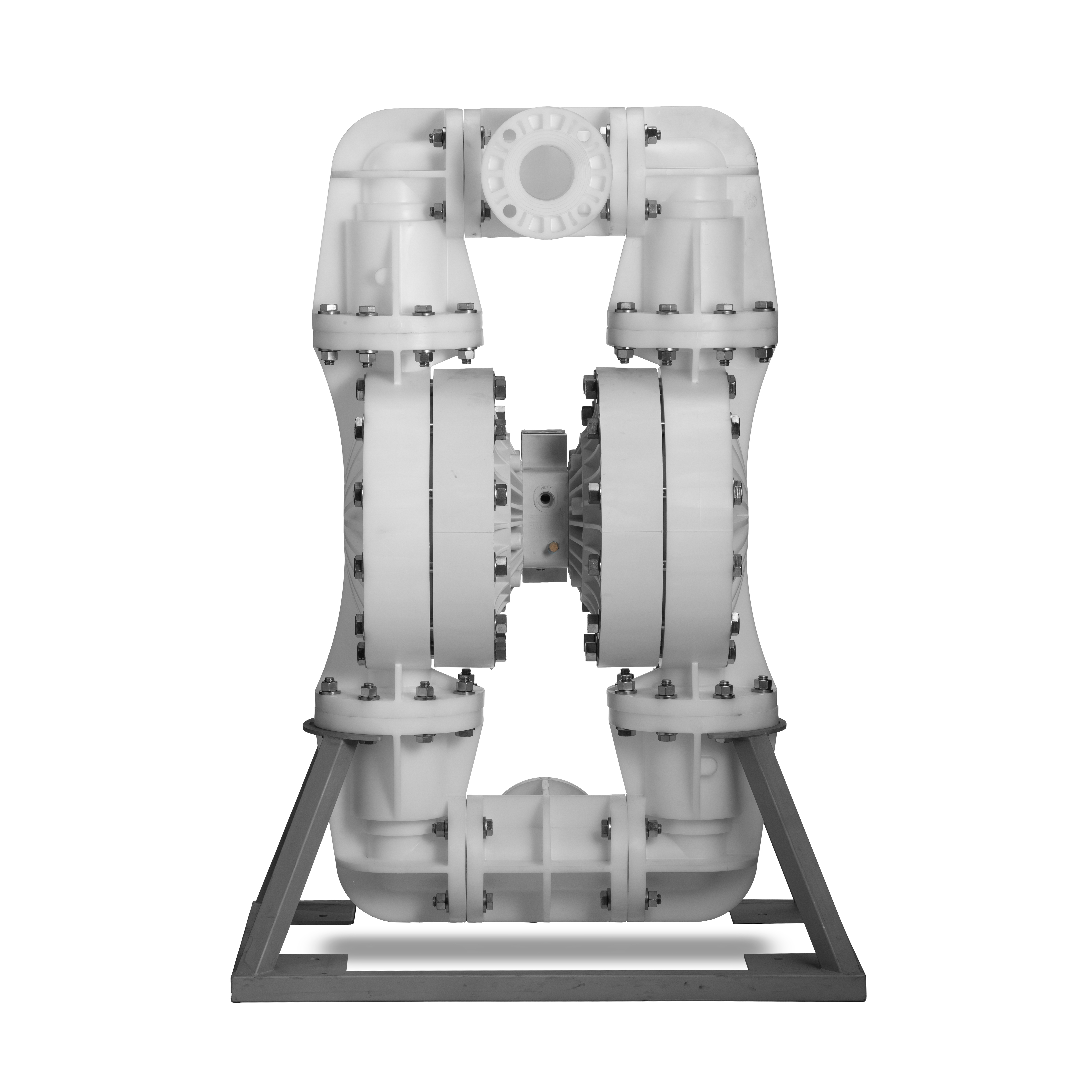

Attributes for item 15-12618
Model (in.):
3
Technical Construction:
BOLTED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
3.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
3.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.25

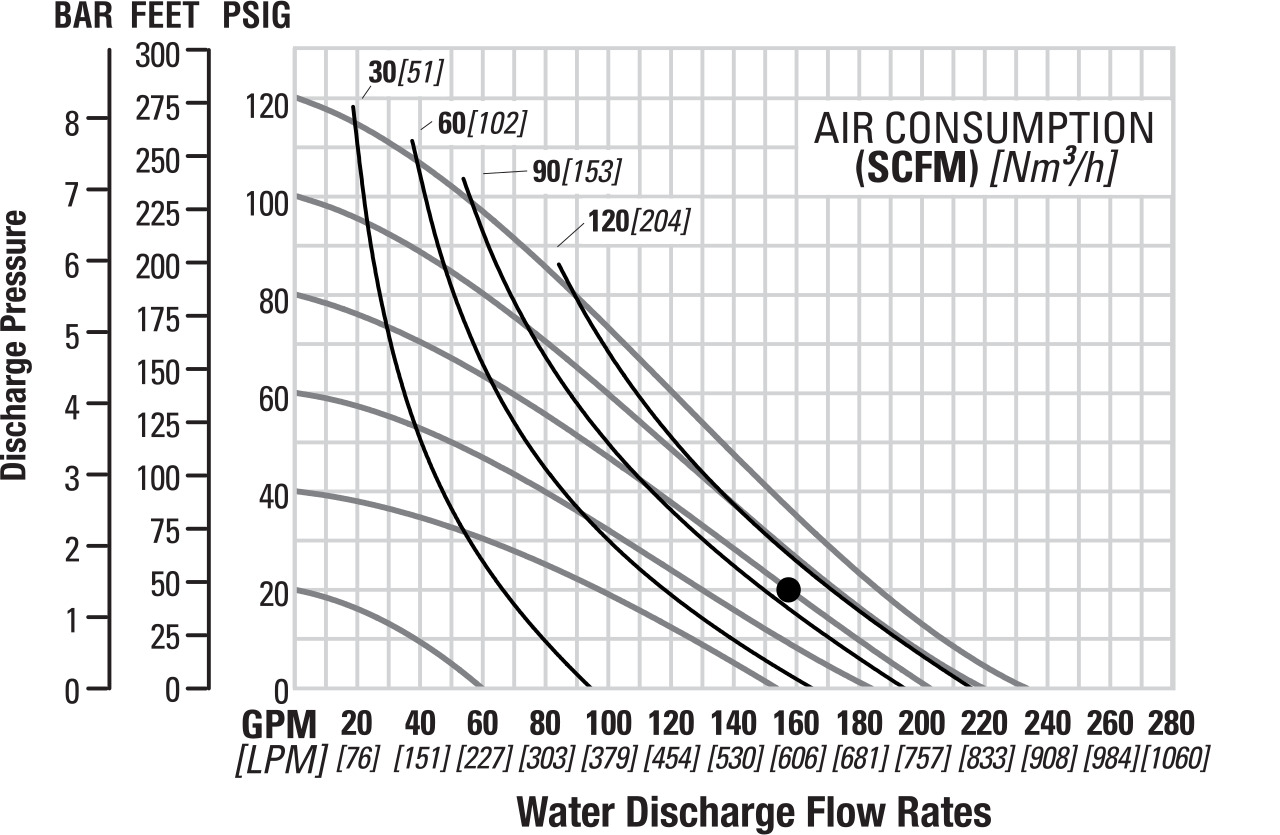

Max Flow Rate (gpm):
232.0
Flow Rate 40 Psi (gpm):
150.0
Flow Rate 50 Psi (gpm):
138.0
Flow Rate 60 Psi (gpm):
120.0
Flow Rate 70 Psi (gpm):
108.0
Flow Rate 80 Psi (gpm):
90.0
Flow Rate 90 Psi (gpm):
72.0
Flow Rate 100 Psi (gpm):
58.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
11.6
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
140.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
275
Shipping Dimensions:
37.25" W X 24.25" L X 50.63" H
Country Of Origin:
UNITIED STATES
