Attributes for item 15-12252
Model (in.):
3
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Santoprene®
Diaphragm Design:
SANITARY
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
3.0
Inlet Orientation:
CENTER HORIZONTAL FRONT
Discharge Size (in.):
3.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POWDER-COATED
Valve Material:
SANITARY Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
SANITARY EPDM
O Rings Gasket Material:
SANITARY EPDM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
85.0
Max Air Pressure (psig):
85.0

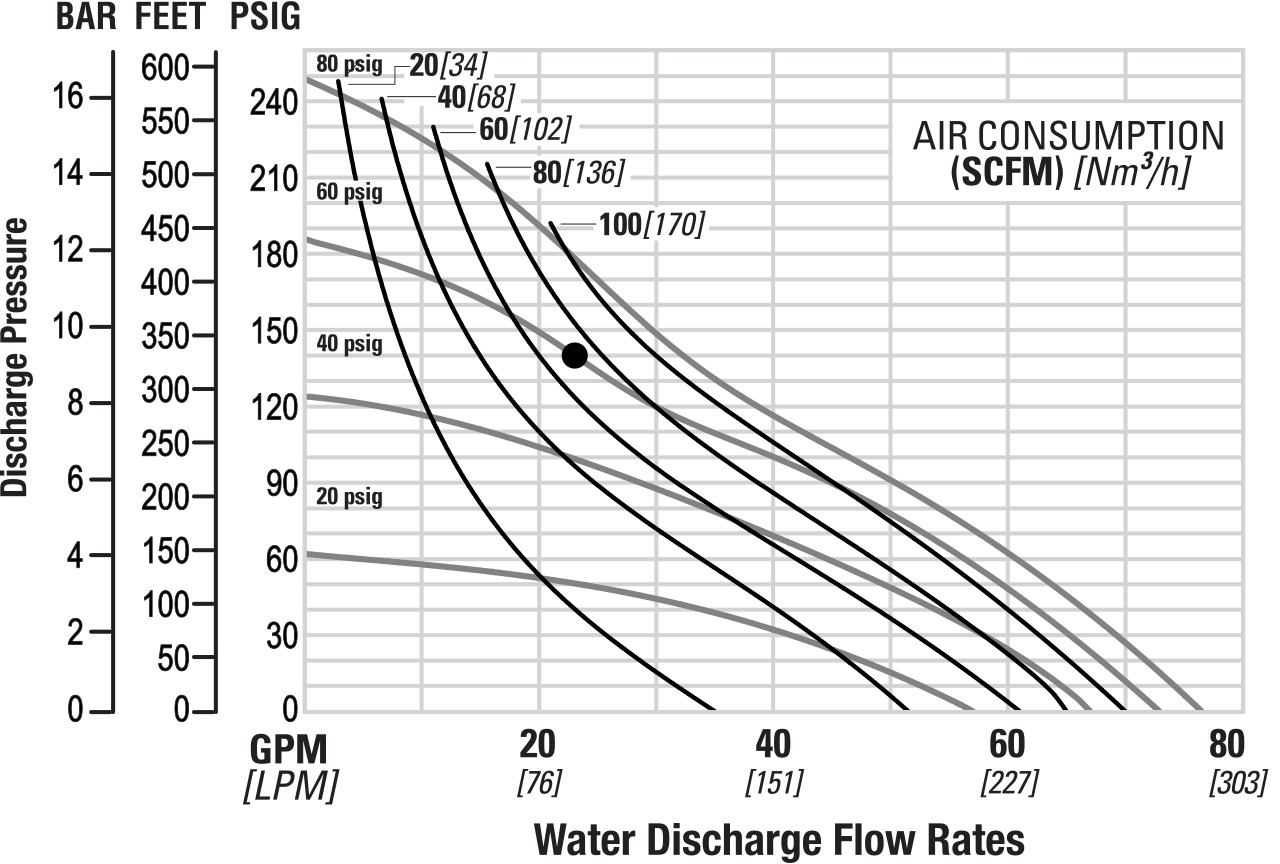

Max Flow Rate (gpm):
77.0
Flow Rate 40 Psi (gpm):
35.0
Flow Rate 50 Psi (gpm):
64.0
Flow Rate 60 Psi (gpm):
60.0
Flow Rate 70 Psi (gpm):
57.0
Flow Rate 80 Psi (gpm):
54.0
Flow Rate 90 Psi (gpm):
50.0
Flow Rate 100 Psi (gpm):
45.0
Flow Rate 120 Psi (gpm):
38.0

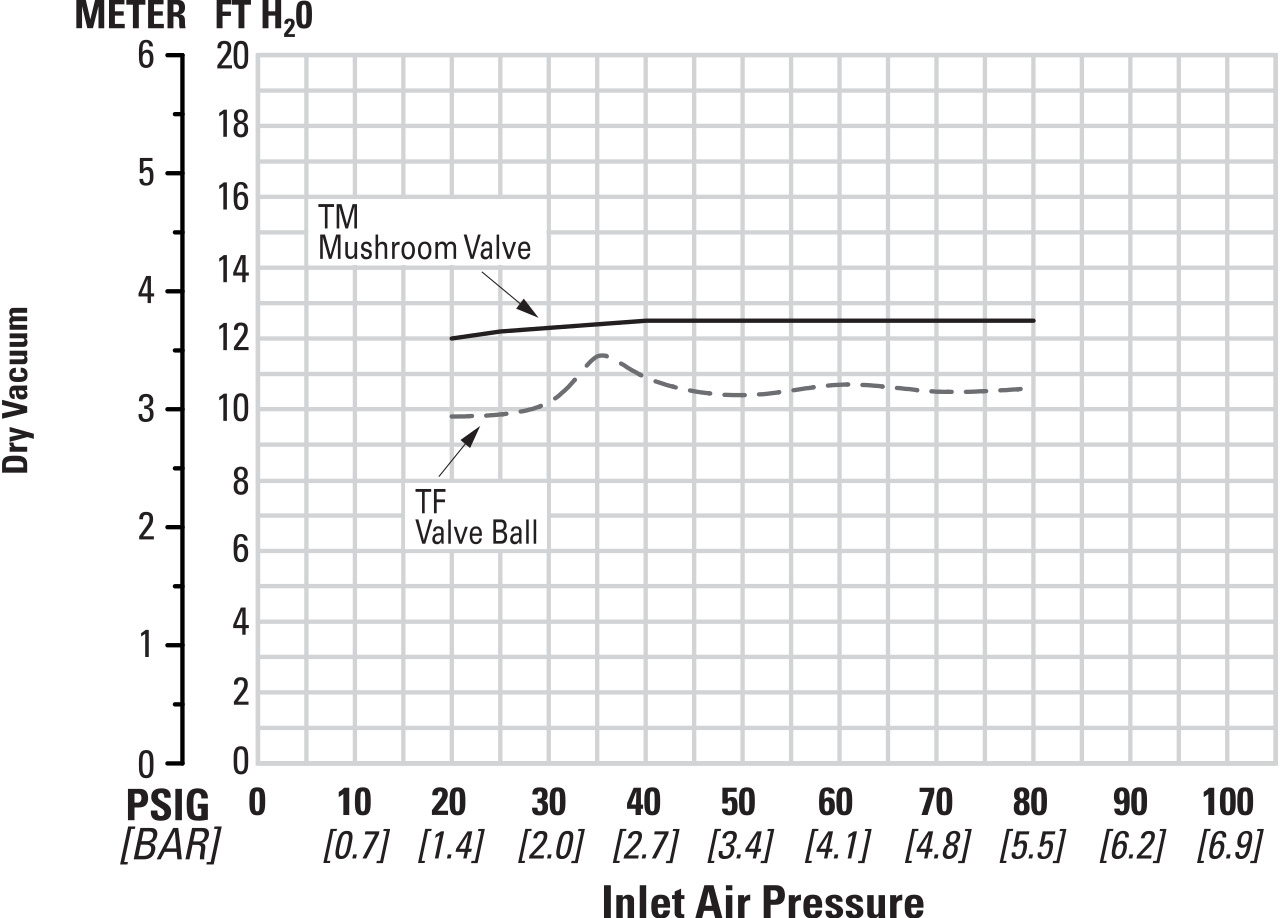

Max Suction Lift Dry (ft.):
12.5
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
120.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
300
Shipping Dimensions:
37.25" W X 24.25" L X 50.63" H
Country Of Origin:
UNITIED STATES
