Attributes
Model:
3
Technical Construction:
BOLTED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size:
3.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size:
3.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure:
125.0
Max Air Pressure:
125.0
Max Diameter Solids:
0.25

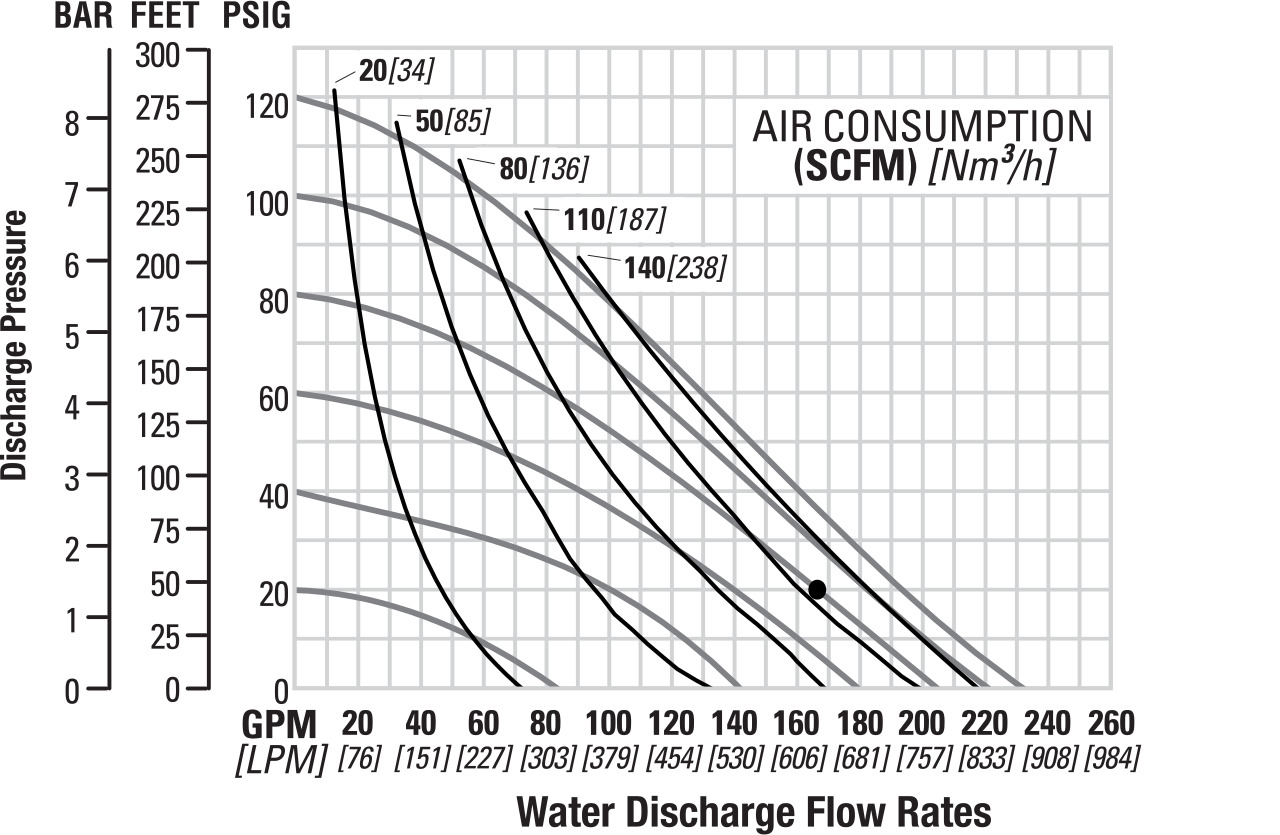

Max Flow Rate:
232.0
Flow Rate 40 Psi:
160.0
Flow Rate 50 Psi:
143.0
Flow Rate 60 Psi:
130.0
Flow Rate 70 Psi:
111.0
Flow Rate 80 Psi:
89.0
Flow Rate 90 Psi:
80.0
Flow Rate 100 Psi:
70.0
Flow Rate 120 Psi:
0.0
Max Suction Lift Dry:
18.2
Max Operating Temperature:
175.0
Min Operating Temperature:
40.0
Max Viscosity:
125000
Max Air Consumption:
160.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight:
275
Shipping Dimensions:
37.25" W X 24.25" L X 50.63" H
Country Of Origin:
UNITIED STATES
