Attributes
Model (in.):
3
Technical Construction:
CLAMPED
Wetted Path Material:
ALUMINUM
Diaphragm Material:
Santoprene®
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
3.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
3.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
ALUMINUM
Air Side Material:
POLYPROPYLENE
Valve Material:
NEOPRENE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
NEOPRENE
O Rings Gasket Material:
NEOPRENE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
.75" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0

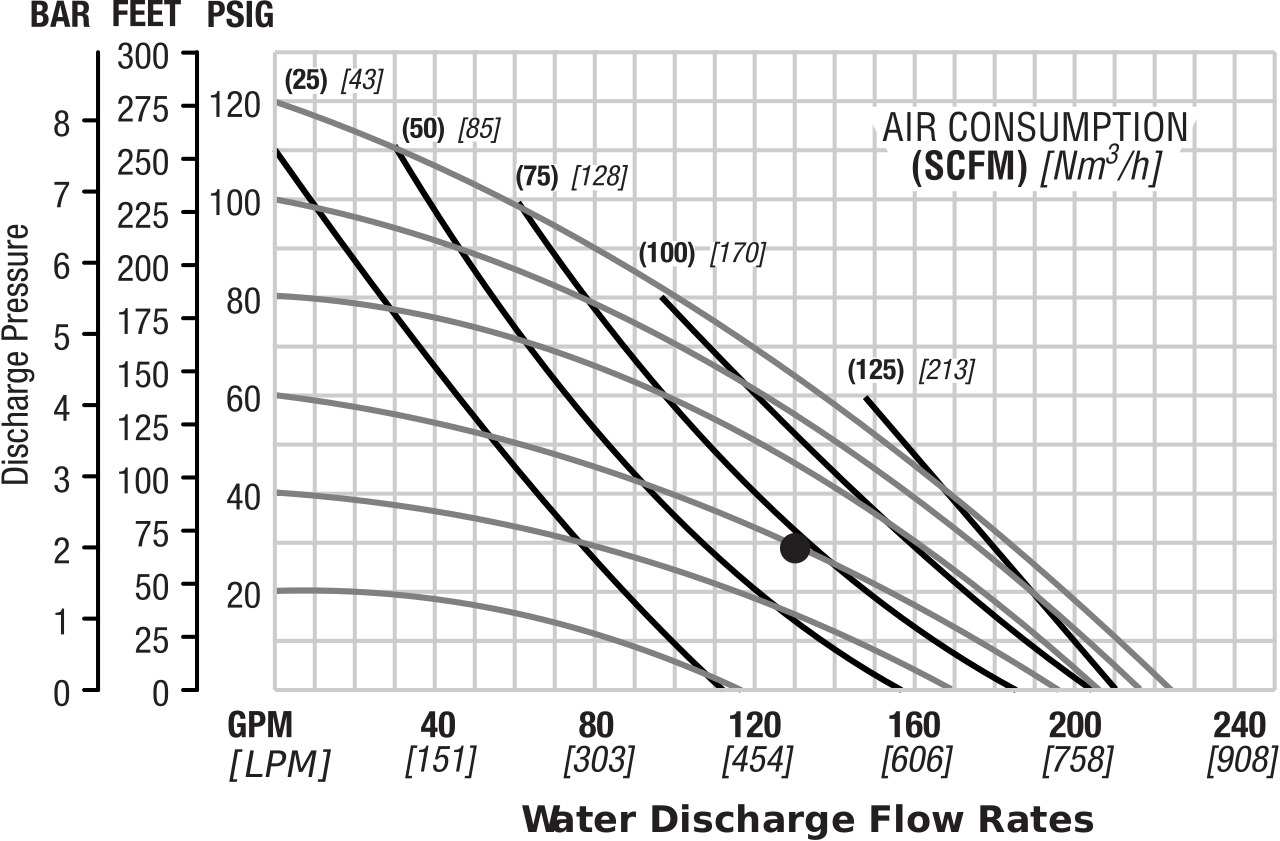

Max Flow Rate (gpm):
223.0
Flow Rate 40 Psi (gpm):
170.0
Flow Rate 50 Psi (gpm):
150.0
Flow Rate 60 Psi (gpm):
140.0
Flow Rate 70 Psi (gpm):
120.0
Flow Rate 80 Psi (gpm):
100.0
Flow Rate 90 Psi (gpm):
80.0
Flow Rate 100 Psi (gpm):
60.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
13.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
130.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
116
Shipping Dimensions:
21.5" W X 17.75" L X 33.88" H
Country Of Origin:
UNITIED STATES
