Attributes
Model:
2
Technical Construction:
CLAMPED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
Buna-N
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size:
2.0
Inlet Orientation:
CENTER SWIVEL
Discharge Size:
2.0
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
Buna-N
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
Buna-N
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure:
125.0
Max Air Pressure:
125.0
Max Diameter Solids:
0.25

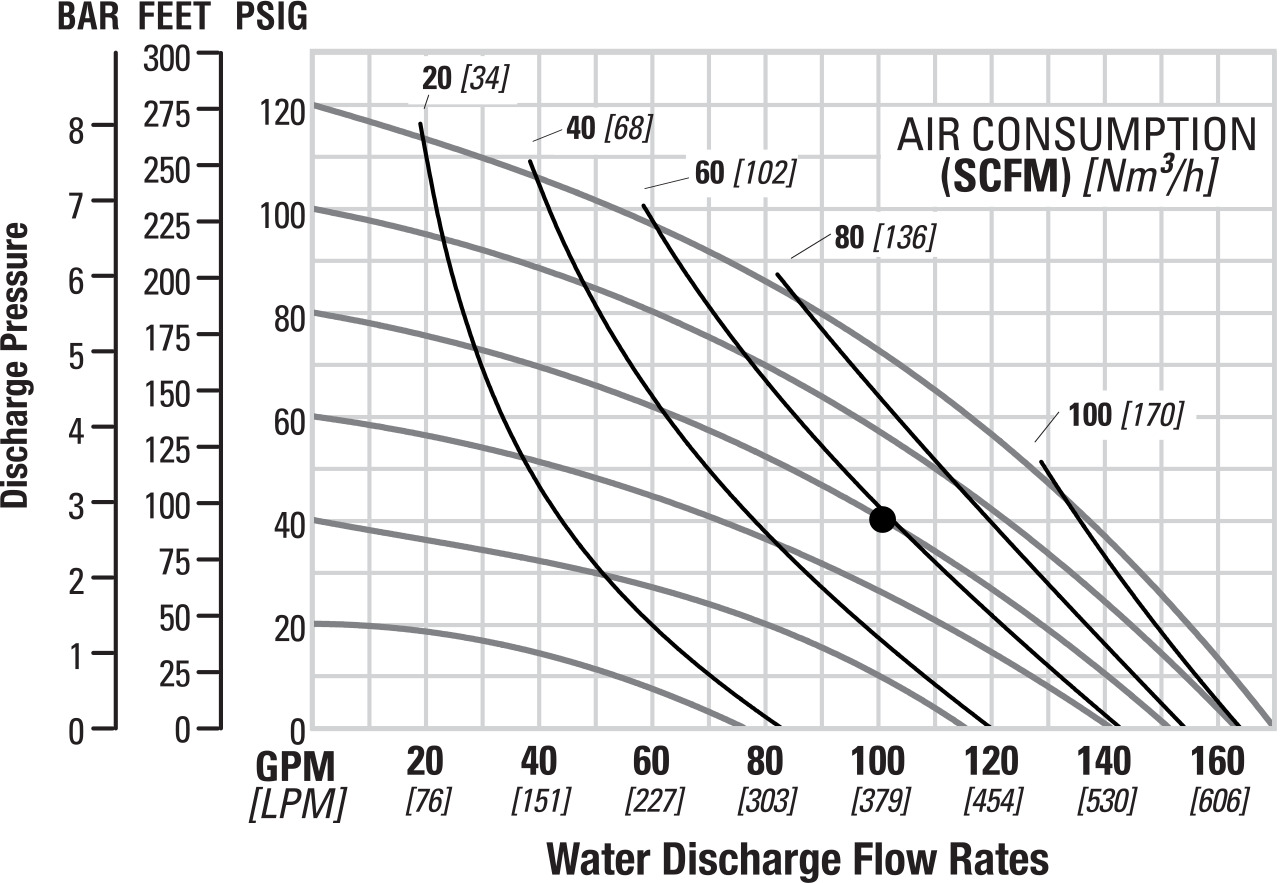

Max Flow Rate:
170.0
Flow Rate 40 Psi:
135.0
Flow Rate 50 Psi:
130.0
Flow Rate 60 Psi:
102.0
Flow Rate 70 Psi:
95.0
Flow Rate 80 Psi:
88.0
Flow Rate 90 Psi:
65.0
Flow Rate 100 Psi:
59.0
Flow Rate 120 Psi:
0.0

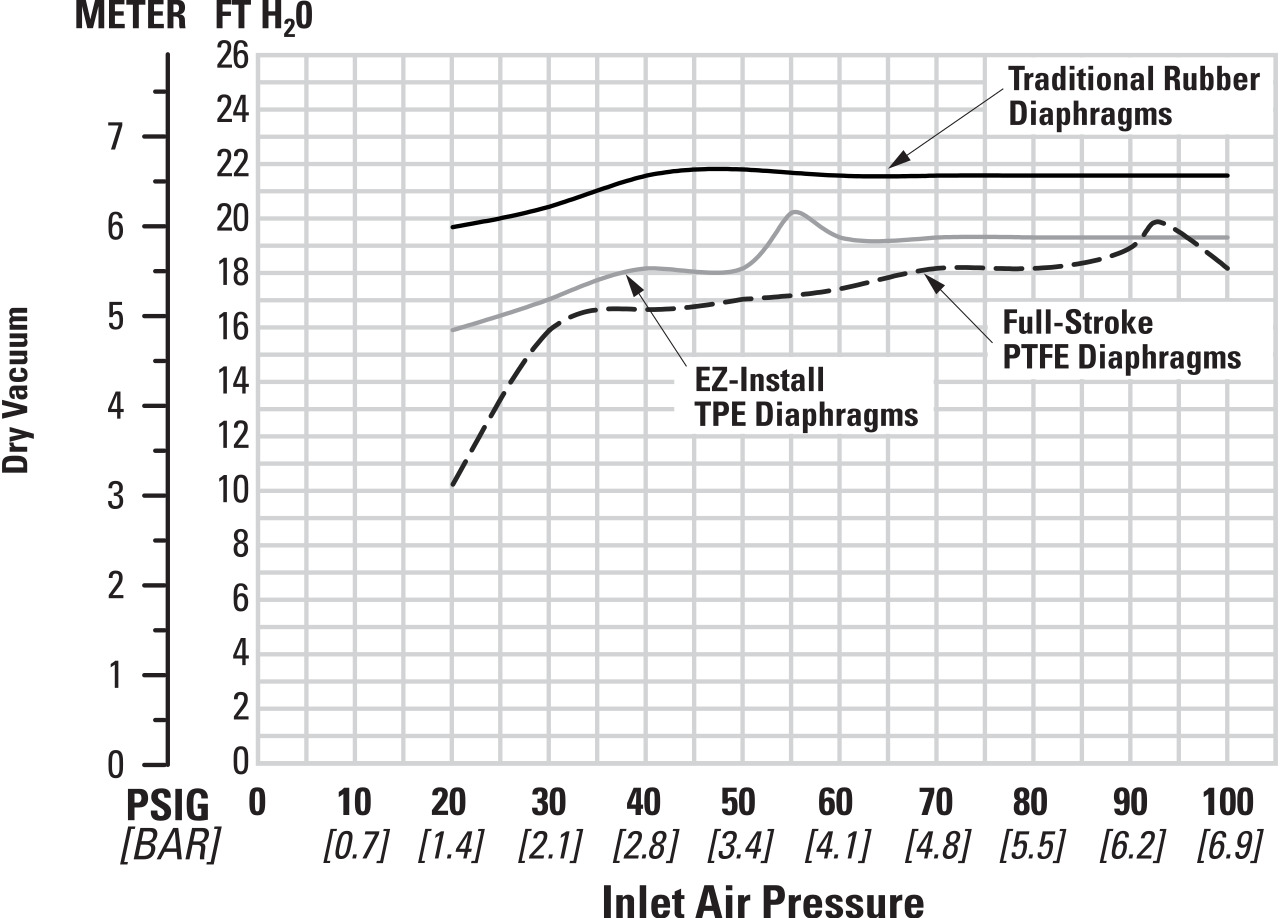

Max Suction Lift Dry:
21.8
Max Operating Temperature:
175.0
Min Operating Temperature:
32.0
Max Viscosity:
125000
Max Air Consumption:
120.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight:
79
Country Of Origin:
UNITIED STATES
