Attributes for item 08-15994
Model (in.):
2
Technical Construction:
CLAMPED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
2.0
Inlet Orientation:
CENTER SWIVEL
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.25

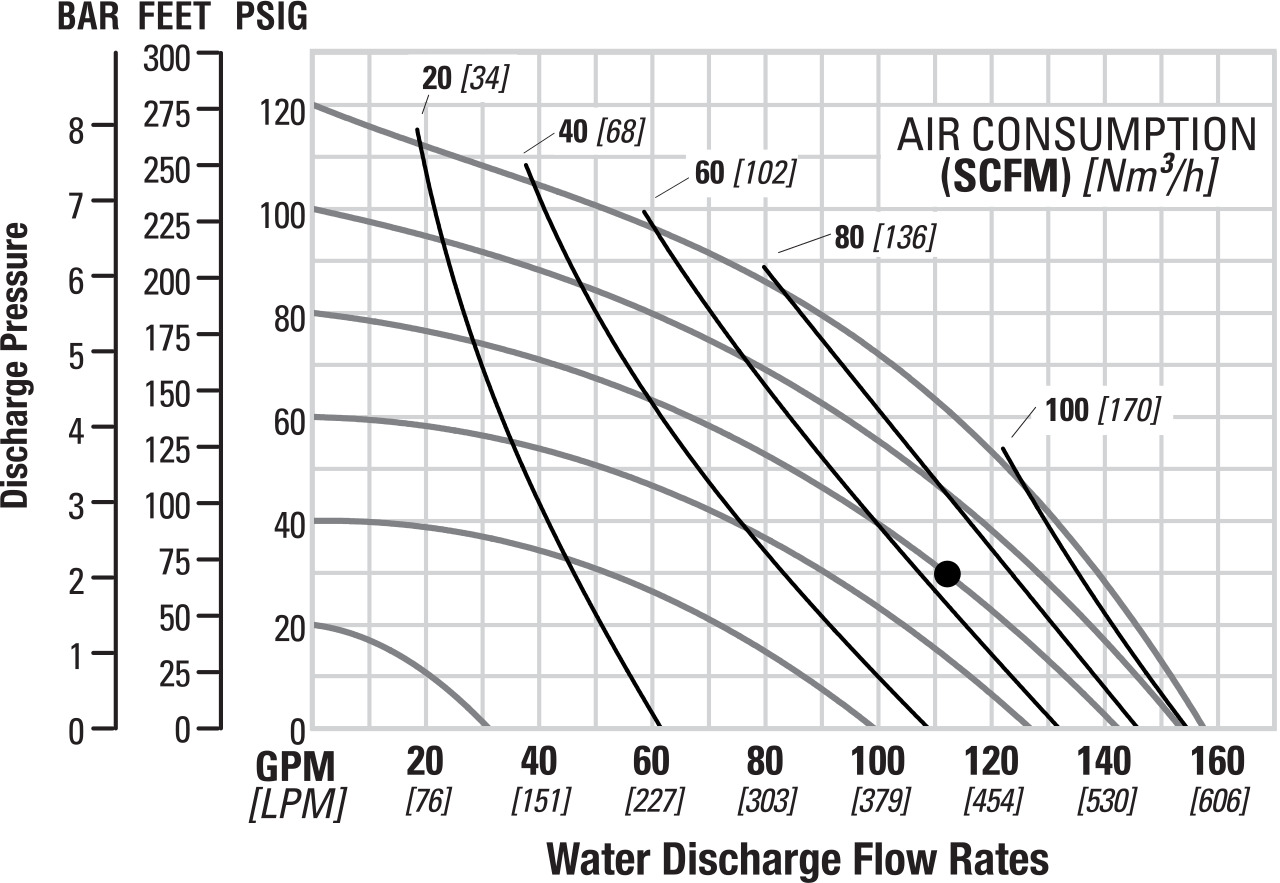

Max Flow Rate (gpm):
158.0
Flow Rate 40 Psi (gpm):
130.0
Flow Rate 50 Psi (gpm):
124.0
Flow Rate 60 Psi (gpm):
100.0
Flow Rate 70 Psi (gpm):
92.0
Flow Rate 80 Psi (gpm):
85.0
Flow Rate 90 Psi (gpm):
80.0
Flow Rate 100 Psi (gpm):
59.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
19.9
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
120.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
79
Country Of Origin:
UNITIED STATES
