Attributes for item 08-15561
Model (in.):
2
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Santoprene®
Diaphragm Design:
EZ-INSTALL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
2.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYPROPYLENE
Valve Material:
Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
SANTOPRENE
O Rings Gasket Material:
SANTOPRENE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/2" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.25

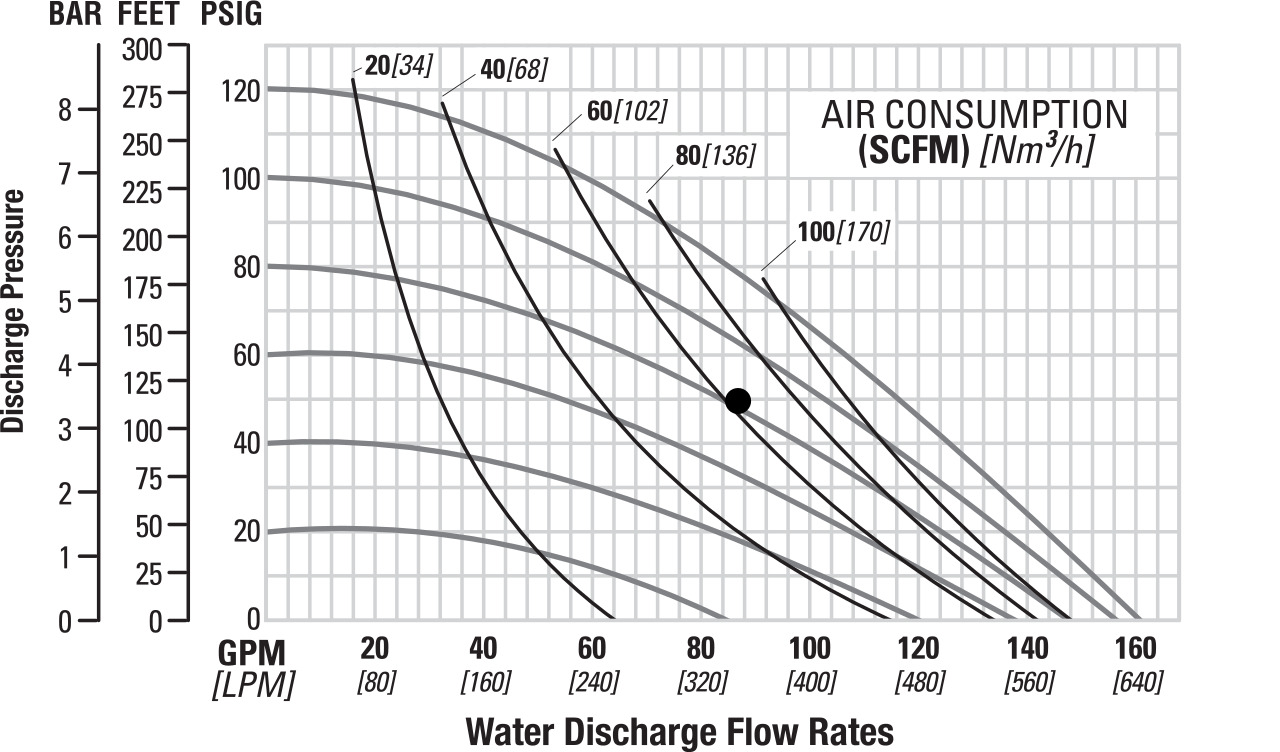

Max Flow Rate (gpm):
161.0
Flow Rate 40 Psi (gpm):
127.0
Flow Rate 50 Psi (gpm):
116.0
Flow Rate 60 Psi (gpm):
109.0
Flow Rate 70 Psi (gpm):
97.0
Flow Rate 80 Psi (gpm):
84.0
Flow Rate 90 Psi (gpm):
73.0
Flow Rate 100 Psi (gpm):
60.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
24.3
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
32.0
Max Air Consumption (psi):
120.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Dimensions:
21.5" W X 17.75" L X 33.88" H
Country Of Origin:
UNITIED STATES
