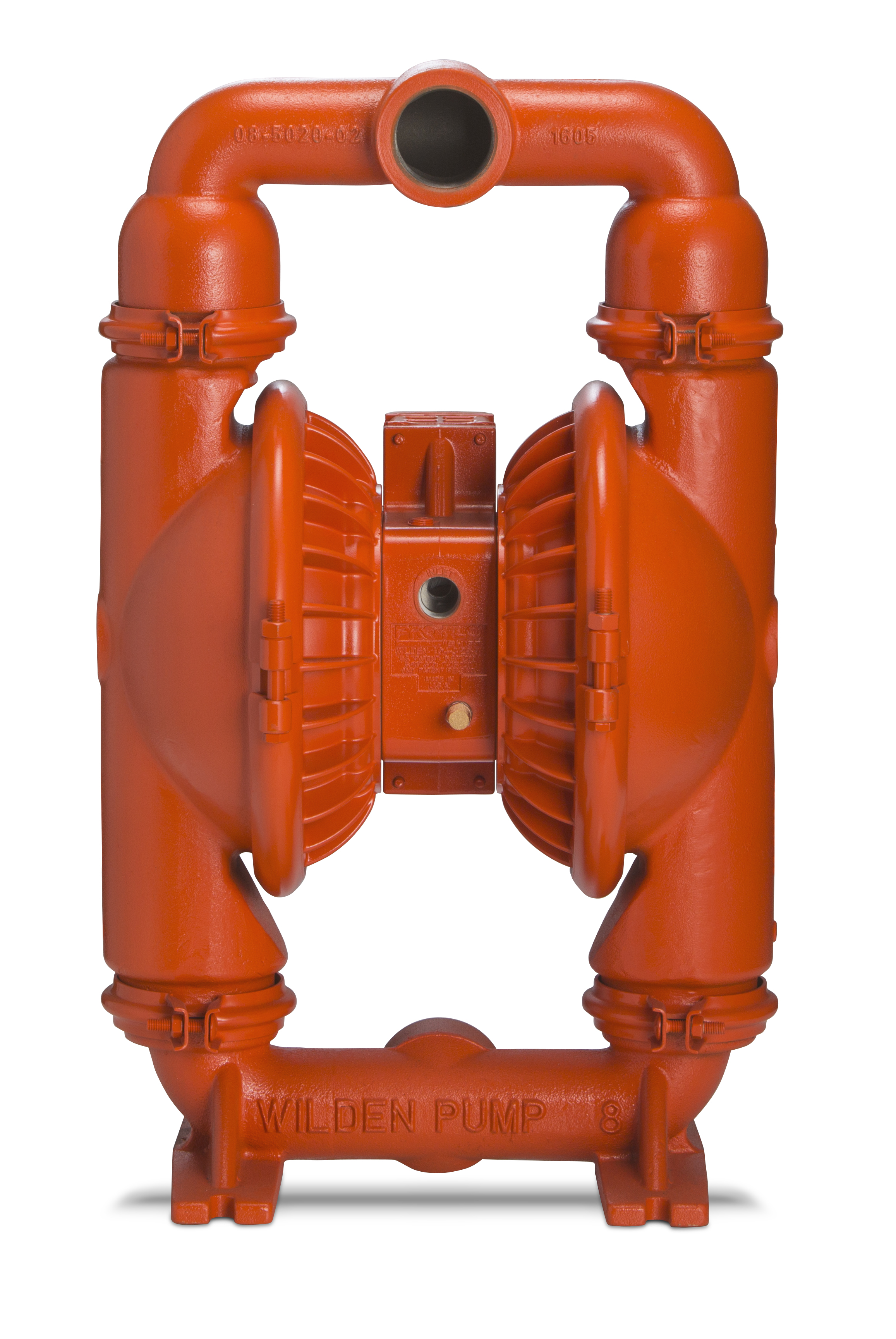

Attributes for item 08-15237
Model (in.):
2
Technical Construction:
Clamped
Wetted Path Material:
Iron
Diaphragm Material:
EPDM
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
2.0
Inlet Orientation:
Center Horizontal Back
Discharge Size (in.):
2.0
Discharge Orientation:
Center Horizontal Front
Outer Piston Materials:
Iron
Air Side Material:
Aluminum
Valve Material:
EPDM
Valve Type:
Valve Ball
Valve Seat MATERIAL:
EPDM
O Rings Gasket Material:
EPDM
Hardware Material:
Diaphragm Dependent
Muffler Material:
Aluminum
Self Priming:
TRUE
Power Source:
Compressed Air
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Flow Rate (gpm):
185.0
Flow Rate 40 Psi (gpm):
135.0
Flow Rate 50 Psi (gpm):
122.0
Flow Rate 60 Psi (gpm):
110.0
Flow Rate 70 Psi (gpm):
97.0
Flow Rate 80 Psi (gpm):
83.0
Flow Rate 90 Psi (gpm):
78.0
Flow Rate 100 Psi (gpm):
50.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
23.8
Max Suction Lift Wet (ft.):
29.5
Max Operating Temperature (°F):
280.0
Min Operating Temperature (°F):
-60.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
110.0
Atex Rated:
TRUE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Weight (lbs):
109
Shipping Dimensions:
17.5" W X 14.63" L X 30.25" H
Country Of Origin:
USA
