Attributes for item 08-15053
Model (in.):
2
Technical Construction:
BOLTED
Wetted Path Material:
IRON
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
2.0
Inlet Orientation:
CENTER HORIZONTAL FRONT
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
IRON
Air Side Material:
ALUMINUM
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
PTFE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
85.0
Max Air Pressure (psig):
85.0

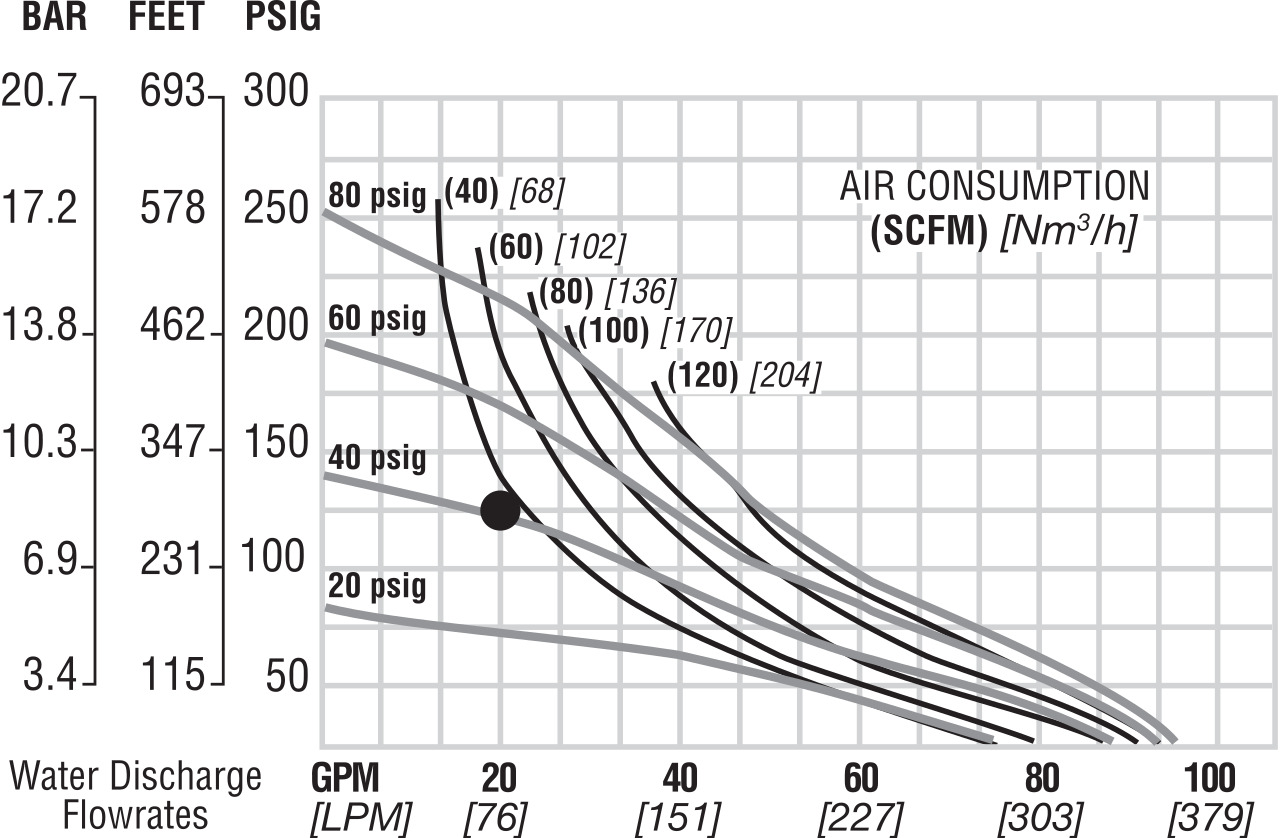

Max Flow Rate (gpm):
95.0
Flow Rate 40 Psi (gpm):
89.0
Flow Rate 50 Psi (gpm):
87.0
Flow Rate 60 Psi (gpm):
74.0
Flow Rate 70 Psi (gpm):
68.0
Flow Rate 80 Psi (gpm):
64.0
Flow Rate 90 Psi (gpm):
59.0
Flow Rate 100 Psi (gpm):
52.0
Flow Rate 120 Psi (gpm):
48.0

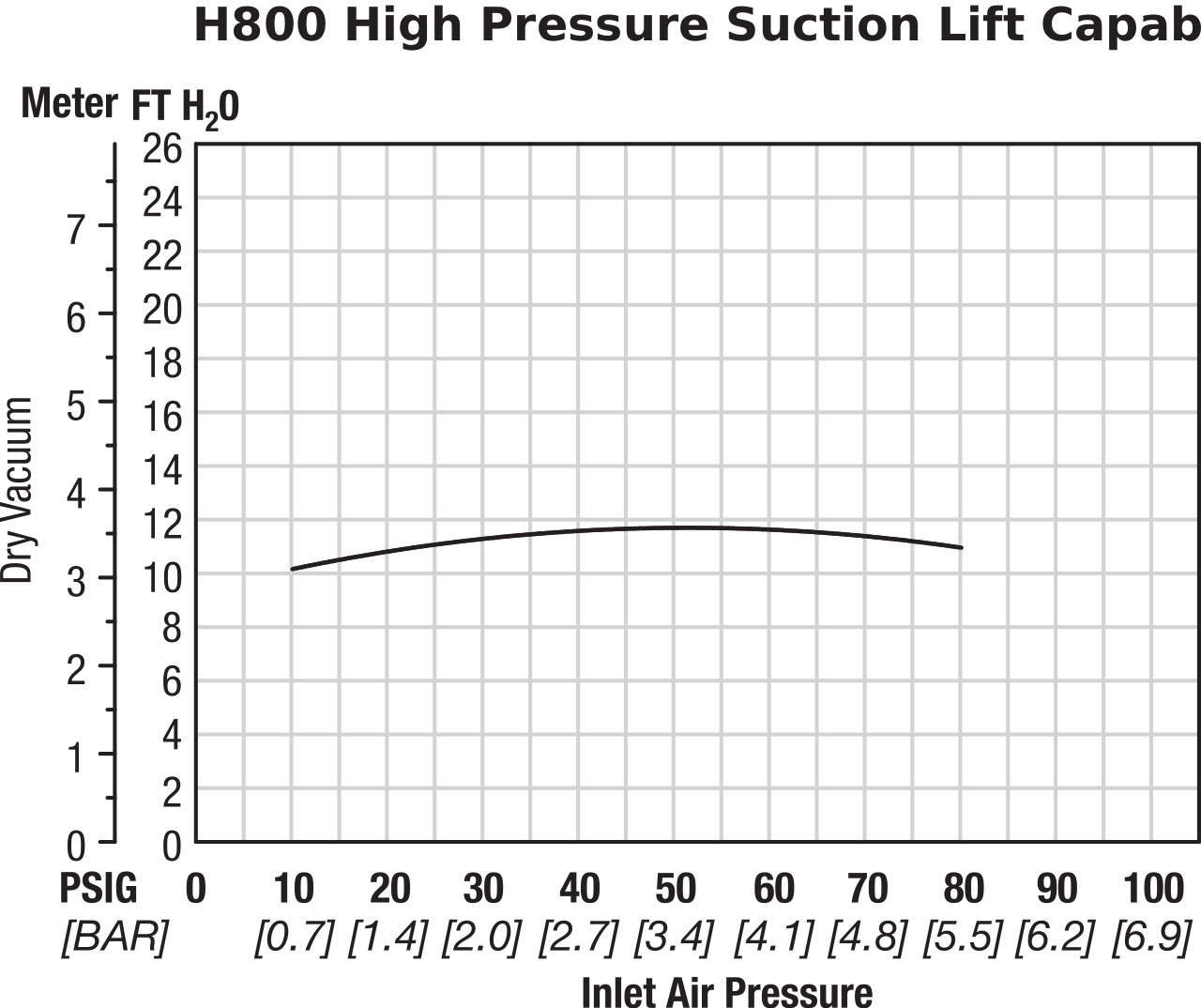

Max Suction Lift Dry (ft.):
12.0
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
140.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
283
Country Of Origin:
UNITIED STATES
