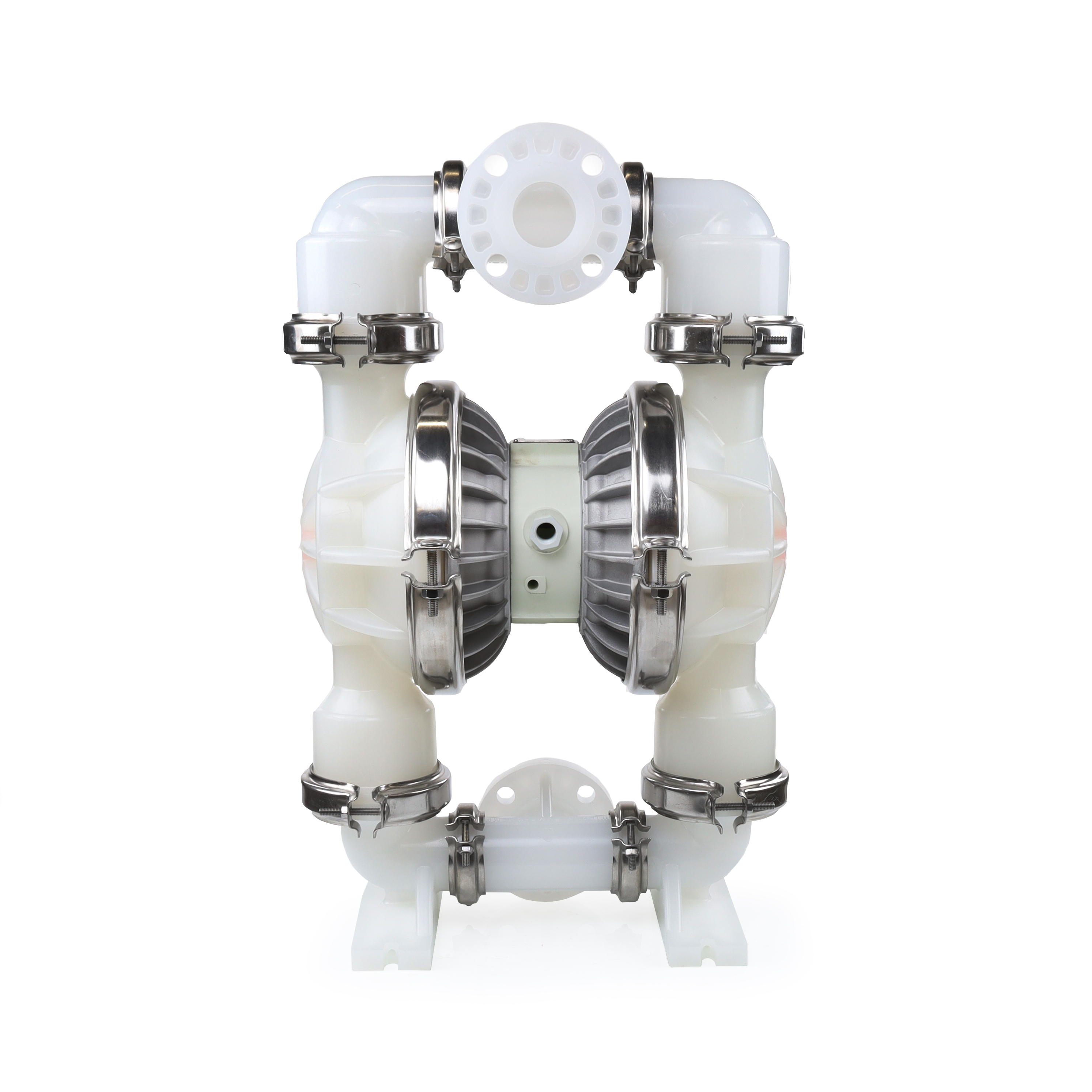

Attributes for item 08-14210
Model (in.):
2
Technical Construction:
CLAMPED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
EPDM
Diaphragm Design:
ULTRA-FLEX
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
2.0
Inlet Orientation:
CENTER SWIVEL
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
EPDM
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Max Diameter Solids (in.):
0.25
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
97
Country Of Origin:
UNITIED STATES
