Attributes for item 08-14008
Model (in.):
2
Technical Construction:
Clamped
Wetted Path Material:
Aluminum
Diaphragm Material:
Hytrel®
Diaphragm Design:
TRADITIONAL SANITARY
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
2.0
Inlet Orientation:
Center Horizontal Back
Discharge Size (in.):
2.0
Discharge Orientation:
Center Horizontal Front
Outer Piston Materials:
Aluminum
Air Side Material:
Aluminum
Valve Material:
Buna-N
Valve Type:
Valve Ball
Valve Seat MATERIAL:
Buna-N
O Rings Gasket Material:
Buna-N
Hardware Material:
Diaphragm Dependent
Muffler Material:
Aluminum
Self Priming:
TRUE
Power Source:
Compressed Air
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

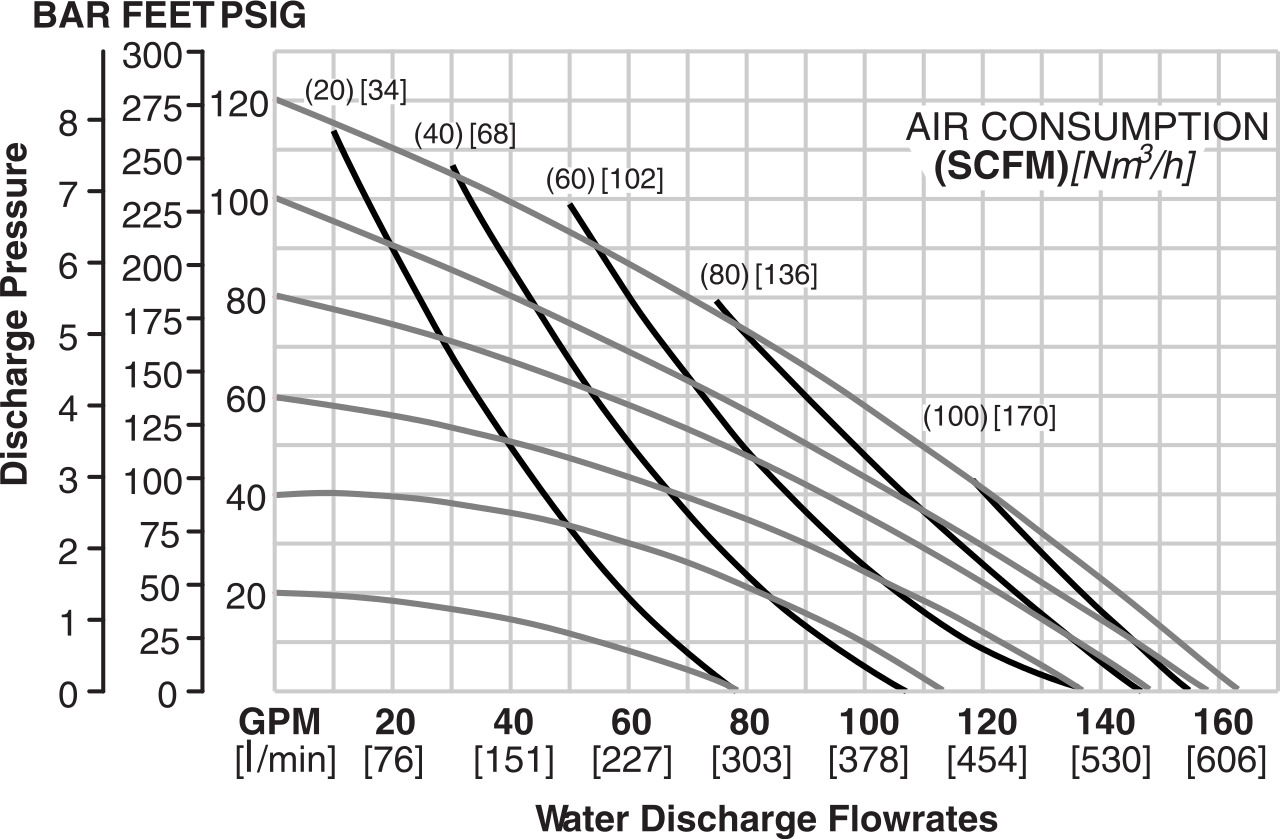

Max Flow Rate (gpm):
162.0
Flow Rate 40 Psi (gpm):
120.0
Flow Rate 50 Psi (gpm):
99.0
Flow Rate 60 Psi (gpm):
90.0
Flow Rate 70 Psi (gpm):
81.0
Flow Rate 80 Psi (gpm):
60.0
Flow Rate 90 Psi (gpm):
55.0
Flow Rate 100 Psi (gpm):
32.0
Flow Rate 120 Psi (gpm):
0.0

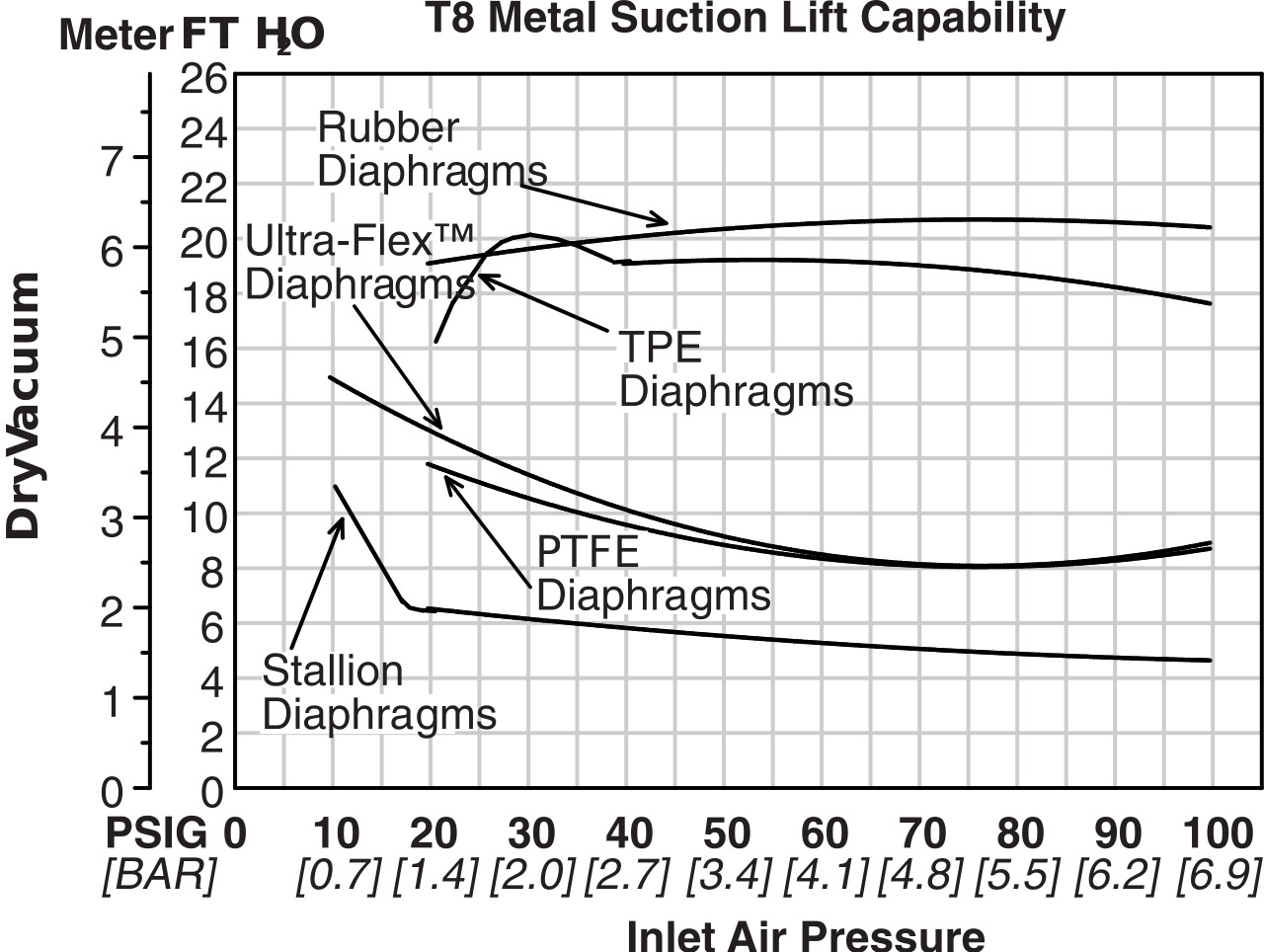

Max Suction Lift Dry (ft.):
20.0
Max Suction Lift Wet (ft.):
31.0
Max Operating Temperature (°F):
180.0
Min Operating Temperature (°F):
10.0
Max Air Consumption (psi):
120.0
Atex Rated:
FALSE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Weight (lbs):
72
Shipping Dimensions:
17.5" W X 14.63" L X 30.25" H
Country Of Origin:
USA
