Attributes for item 08-13396
Model (in.):
2
Technical Construction:
CLAMPED
Wetted Path Material:
IRON
Diaphragm Material:
Neoprene
Diaphragm Design:
ULTRA-FLEX
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
2.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
IRON
Air Side Material:
ALUMINUM
Valve Material:
POLYURETHANE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
POLYURETHANE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

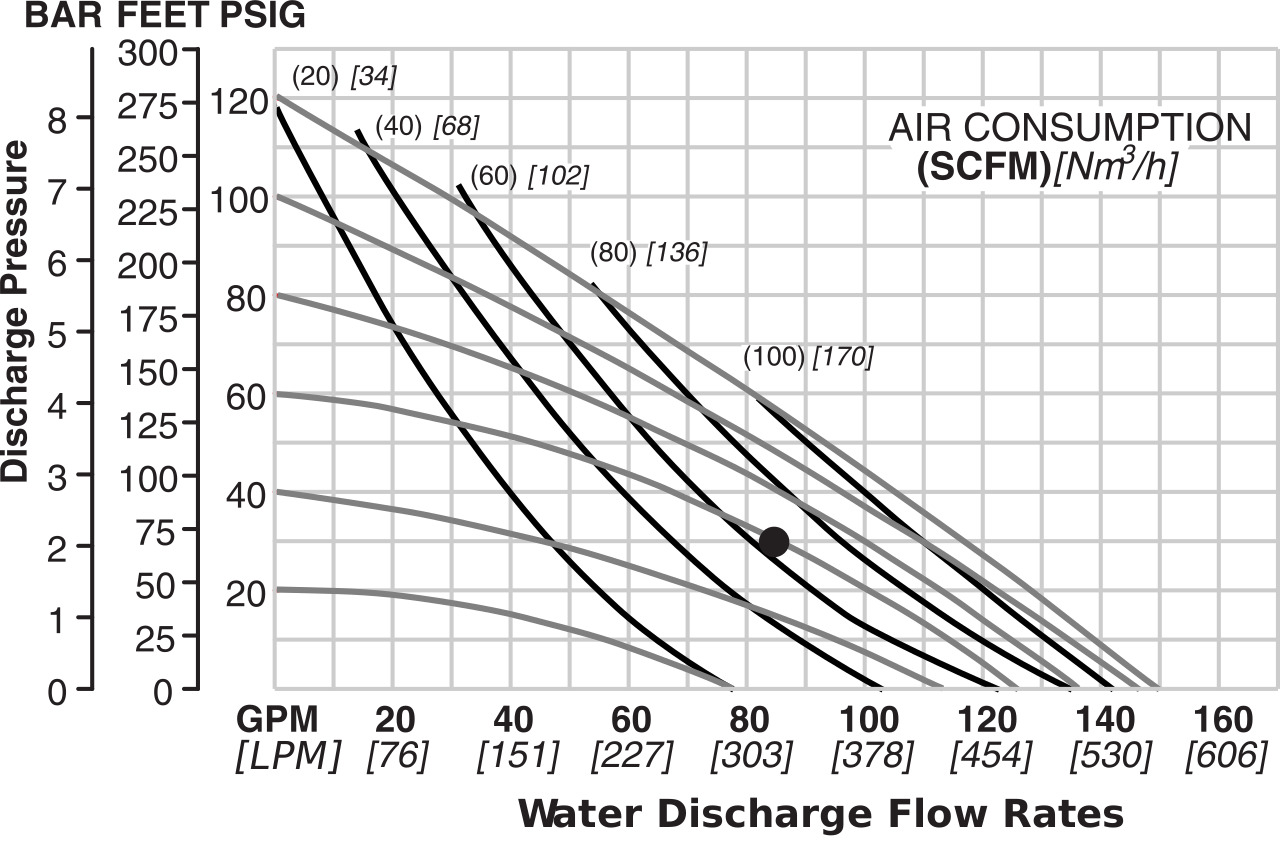

Max Flow Rate (gpm):
150.0
Flow Rate 40 Psi (gpm):
100.0
Flow Rate 50 Psi (gpm):
90.0
Flow Rate 60 Psi (gpm):
70.0
Flow Rate 70 Psi (gpm):
62.0
Flow Rate 80 Psi (gpm):
55.0
Flow Rate 90 Psi (gpm):
38.0
Flow Rate 100 Psi (gpm):
32.0
Flow Rate 120 Psi (gpm):
0.0

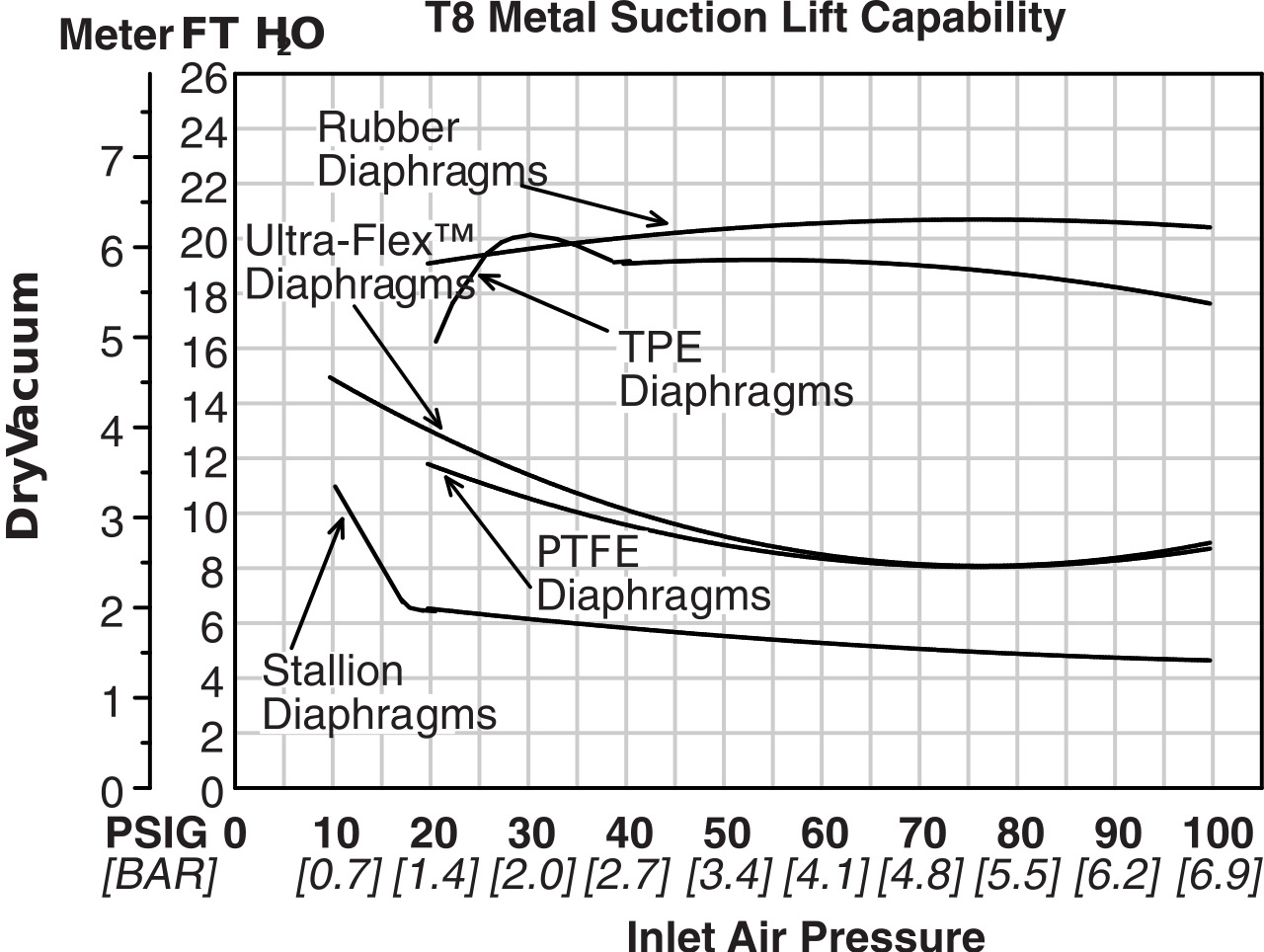

Max Suction Lift Dry (ft.):
11.0
Max Operating Temperature (°F):
150.0
Min Operating Temperature (°F):
32.0
Max Air Consumption (psi):
120.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
140
Shipping Dimensions:
17.5" W X 14.63" L X 30.25" H
Country Of Origin:
UNITIED STATES
