Attributes for item 08-13299
Model (in.):
2
Technical Construction:
CLAMPED
Wetted Path Material:
ALUMINUM
Diaphragm Material:
Buna-N
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
2.0
Inlet Orientation:
SCREEN BASE
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
ALUMINUM
Air Side Material:
ALUMINUM
Valve Material:
Buna-N
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
Buna-N
O Rings Gasket Material:
Buna-N
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

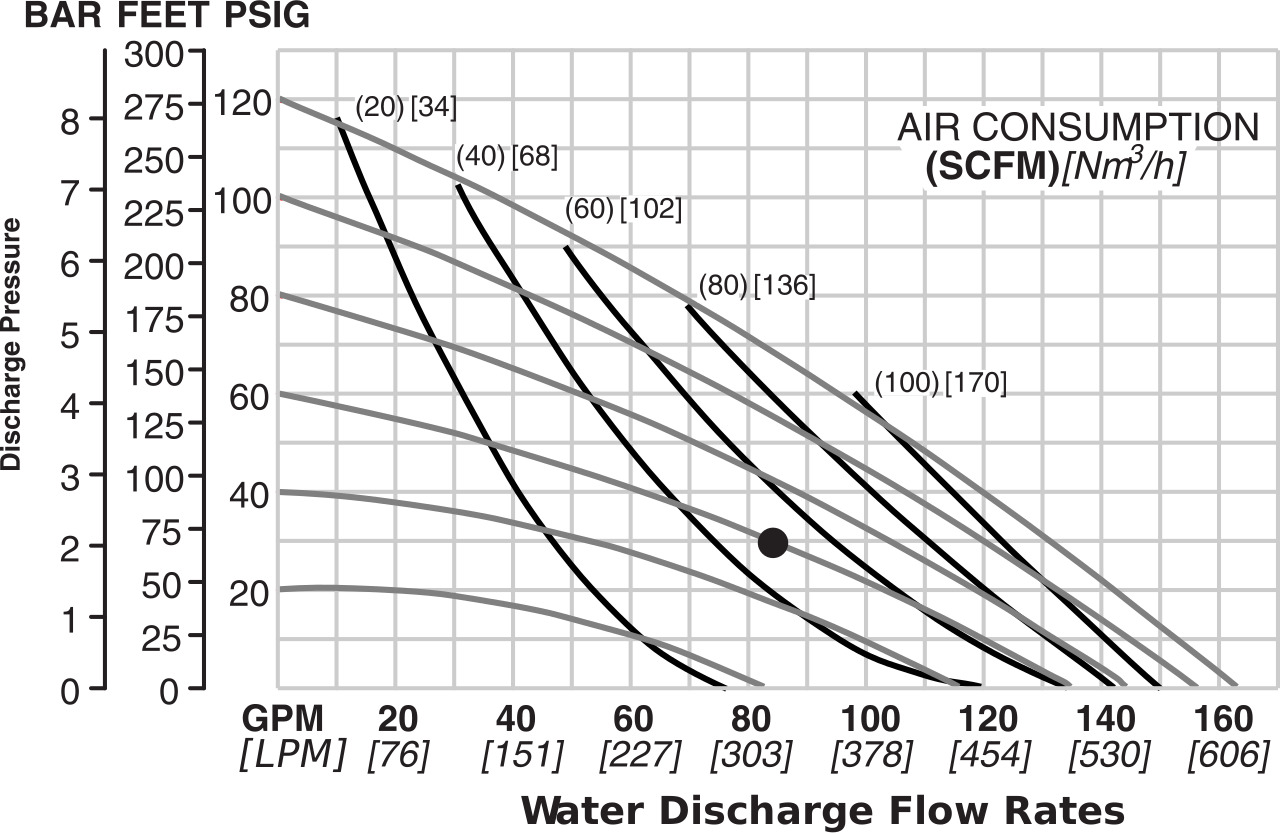

Max Flow Rate (gpm):
163.0
Flow Rate 40 Psi (gpm):
115.0
Flow Rate 50 Psi (gpm):
108.0
Flow Rate 60 Psi (gpm):
83.0
Flow Rate 70 Psi (gpm):
75.0
Flow Rate 80 Psi (gpm):
55.0
Flow Rate 90 Psi (gpm):
50.0
Flow Rate 100 Psi (gpm):
31.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
21.0
Max Operating Temperature (°F):
180.0
Min Operating Temperature (°F):
10.0
Max Air Consumption (psi):
120.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
72
Shipping Dimensions:
17.5" W X 14.63" L X 30.25" H
Country Of Origin:
UNITIED STATES
