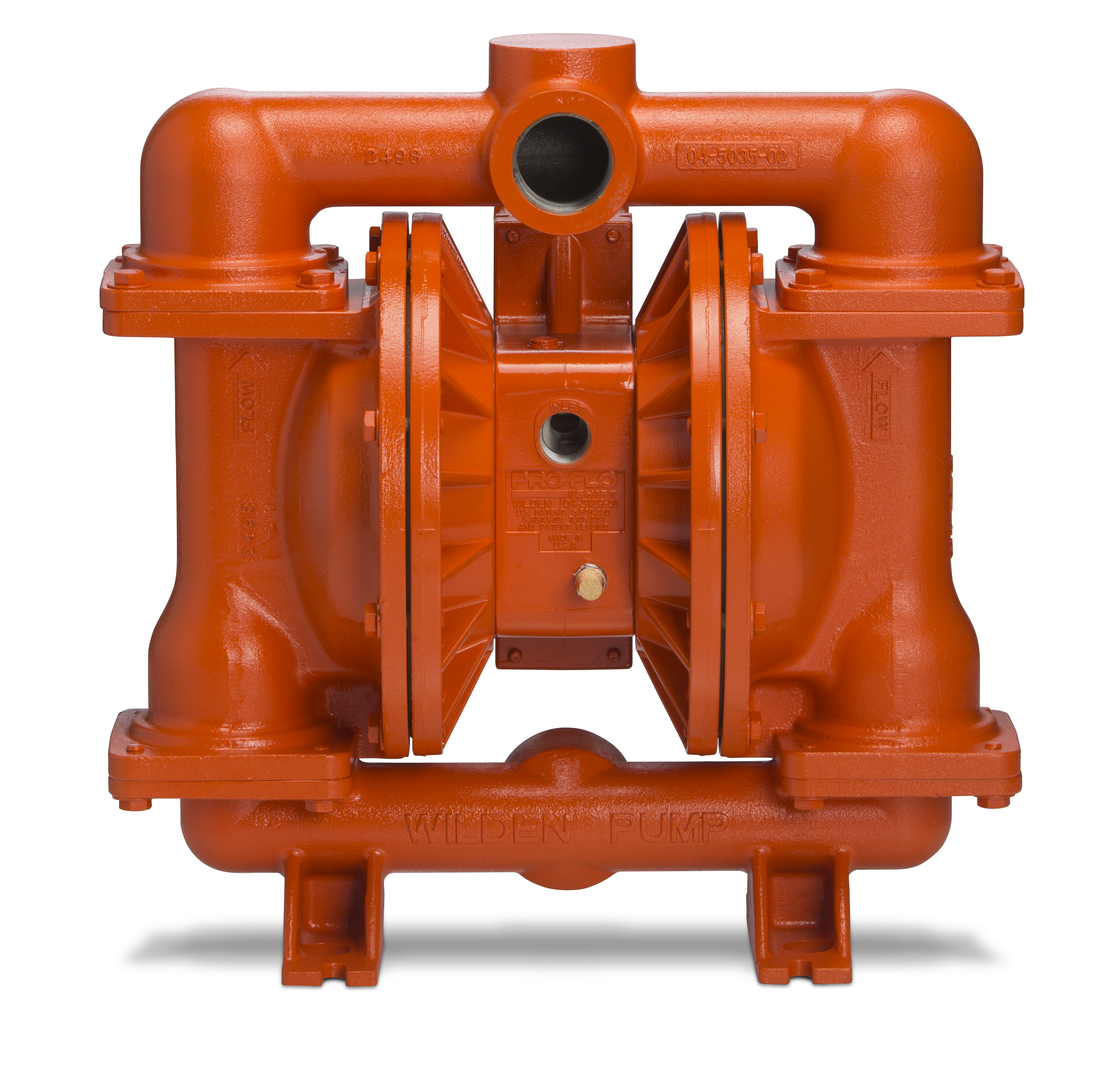

Attributes for item 04-14071
Model (in.):
1.5
Technical Construction:
BOLTED
Wetted Path Material:
IRON
Diaphragm Material:
Santoprene®
Diaphragm Design:
TPE IPD
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
1.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.5
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
NO OUTER PISTON
Air Side Material:
ALUMINUM
Valve Material:
POLYURETHANE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
MILD STEEL
O Rings Gasket Material:
PTFE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.25
Max Flow Rate (gpm):
135.0
Flow Rate 40 Psi (gpm):
100.0
Flow Rate 50 Psi (gpm):
90.0
Flow Rate 60 Psi (gpm):
80.0
Flow Rate 70 Psi (gpm):
71.0
Flow Rate 80 Psi (gpm):
61.0
Flow Rate 90 Psi (gpm):
50.0
Flow Rate 100 Psi (gpm):
38.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
19.5
Max Operating Temperature (°F):
150.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
85.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
86
Shipping Dimensions:
17.88" W X 13.75" L X 22.19" H
Country Of Origin:
UNITIED STATES
