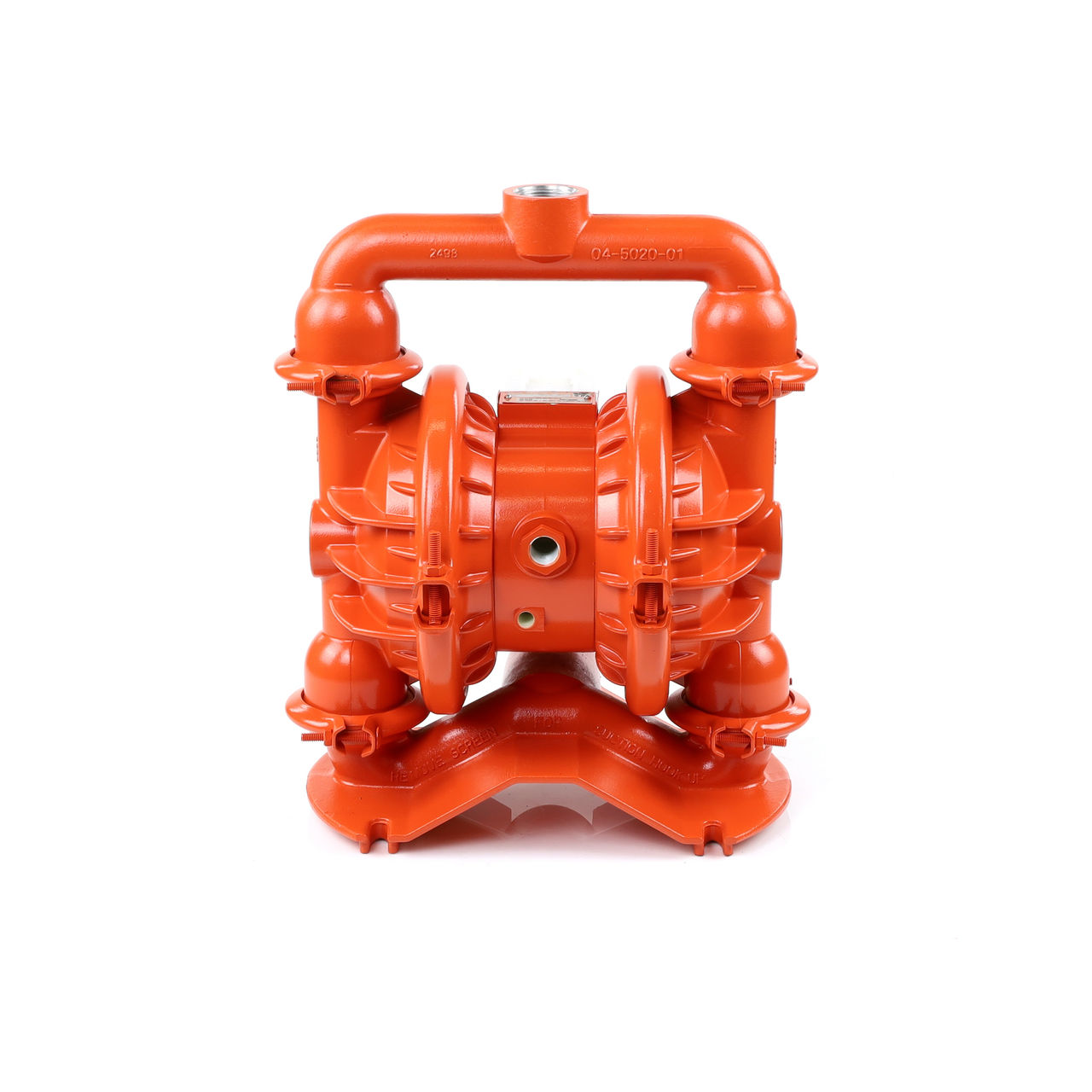

Attributes for item 04-14018
Model (in.):
1.5
Technical Construction:
Clamped
Wetted Path Material:
Aluminum
Diaphragm Material:
Santoprene®
Diaphragm Design:
EZ-INSTALL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
1.5
Inlet Orientation:
Center Horizontal Back
Discharge Size (in.):
1.5
Discharge Orientation:
Center Vertical
Outer Piston Materials:
Aluminum
Air Side Material:
Polypropylene
Valve Material:
Santoprene®
Valve Type:
Valve Ball
Valve Seat MATERIAL:
Santoprene®
O Rings Gasket Material:
Santoprene®
Hardware Material:
Diaphragm Dependent
Muffler Material:
Aluminum
Self Priming:
TRUE
Power Source:
Compressed Air
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Flow Rate (gpm):
81.0
Flow Rate 40 Psi (gpm):
68.0
Flow Rate 50 Psi (gpm):
64.0
Flow Rate 60 Psi (gpm):
60.0
Flow Rate 70 Psi (gpm):
55.0
Flow Rate 80 Psi (gpm):
50.0
Flow Rate 90 Psi (gpm):
43.0
Flow Rate 100 Psi (gpm):
33.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
17.0
Max Suction Lift Wet (ft.):
29.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
65.0
ATEX Rated:
FALSE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Weight (lbs):
38
Shipping Dimensions:
16.25" W X 14.13" L X 18.5" H
Country Of Origin:
USA
Family:
Metal Industrial
Lead Time (days):
10
