Attributes for item 04-13618
Model (in.):
1.5
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
EPDM
Diaphragm Design:
TRADITIONAL SANITARY
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
1.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.5
Discharge Orientation:
CENTER VERTICAL
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
STAINLESS STEEL
Valve Material:
Hytrel®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
HYTREL
O Rings Gasket Material:
HYTREL
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
.75" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

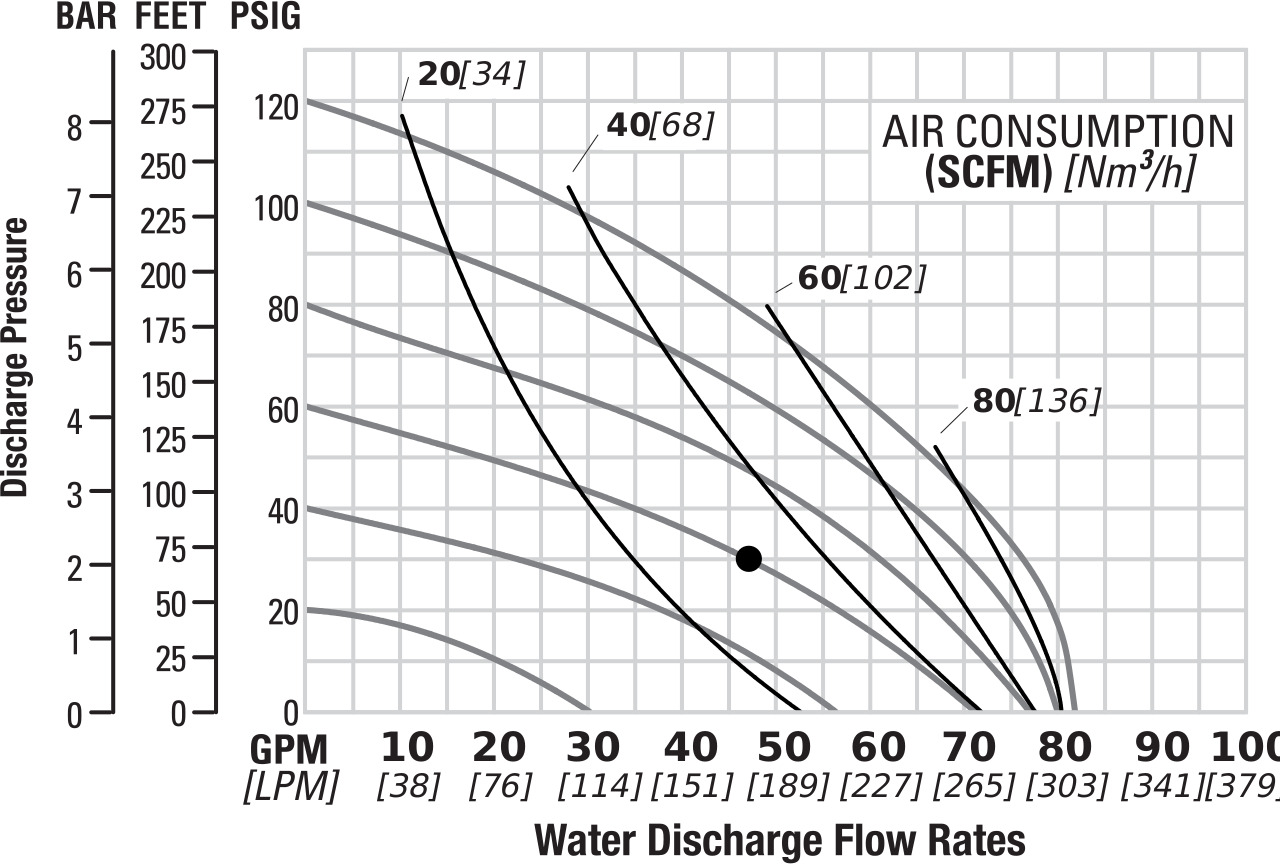

Max Flow Rate (gpm):
82.0
Flow Rate 40 Psi (gpm):
72.0
Flow Rate 50 Psi (gpm):
66.0
Flow Rate 60 Psi (gpm):
60.0
Flow Rate 70 Psi (gpm):
54.0
Flow Rate 80 Psi (gpm):
45.0
Flow Rate 90 Psi (gpm):
36.0
Flow Rate 100 Psi (gpm):
27.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
22.9
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
-20.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
85.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
62
Shipping Dimensions:
16.25" W X 14.13" L X 18.5" H
Country Of Origin:
UNITIED STATES
