Attributes for item 04-13531
Model (in.):
1.5
Technical Construction:
Clamped
Wetted Path Material:
Polypropylene
Diaphragm Material:
Buna-N
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
DIN
Inlet Size (in.):
1.5
Inlet Orientation:
Center Swivel
Discharge Size (in.):
1.5
Discharge Orientation:
Center Swivel
Outer Piston Materials:
Polypropylene
Air Side Material:
Polypropylene
Valve Material:
Buna-N
Valve Type:
Valve Ball
Valve Seat MATERIAL:
Polypropylene
O Rings Gasket Material:
Buna-N
Hardware Material:
Stainless Steel
Muffler Material:
Plastic
Self Priming:
TRUE
Power Source:
Compressed Air
Air Inlet Connection:
1 1/2" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.18

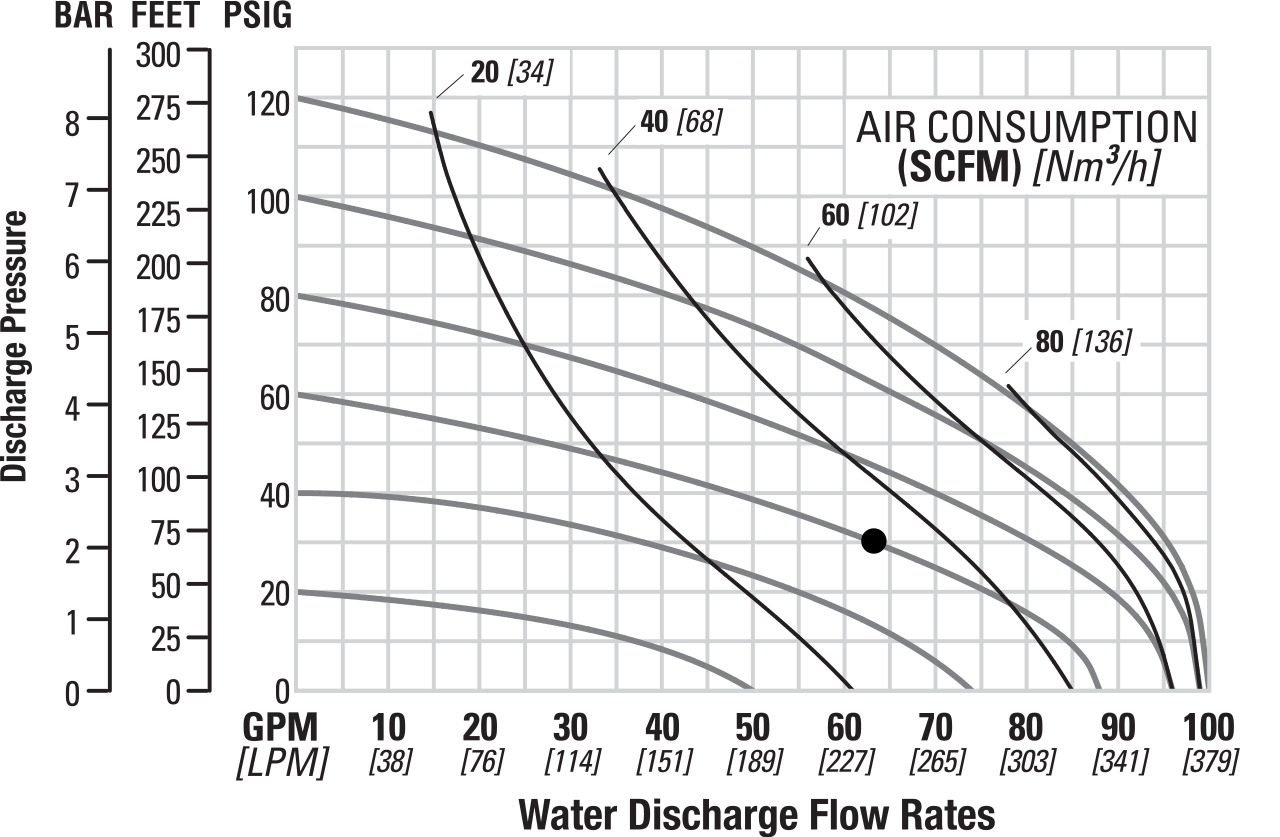

Max Flow Rate (gpm):
100.0
Flow Rate 40 Psi (gpm):
91.0
Flow Rate 50 Psi (gpm):
85.0
Flow Rate 60 Psi (gpm):
77.0
Flow Rate 70 Psi (gpm):
70.0
Flow Rate 80 Psi (gpm):
60.0
Flow Rate 90 Psi (gpm):
50.0
Flow Rate 100 Psi (gpm):
36.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
19.5
Max Suction Lift Wet (ft.):
27.2
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
82.0
Atex Rated:
FALSE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Weight (lbs):
40.2
Shipping Dimensions:
17.88" W X 13.75" L X 22.19" H
Country Of Origin:
USA
