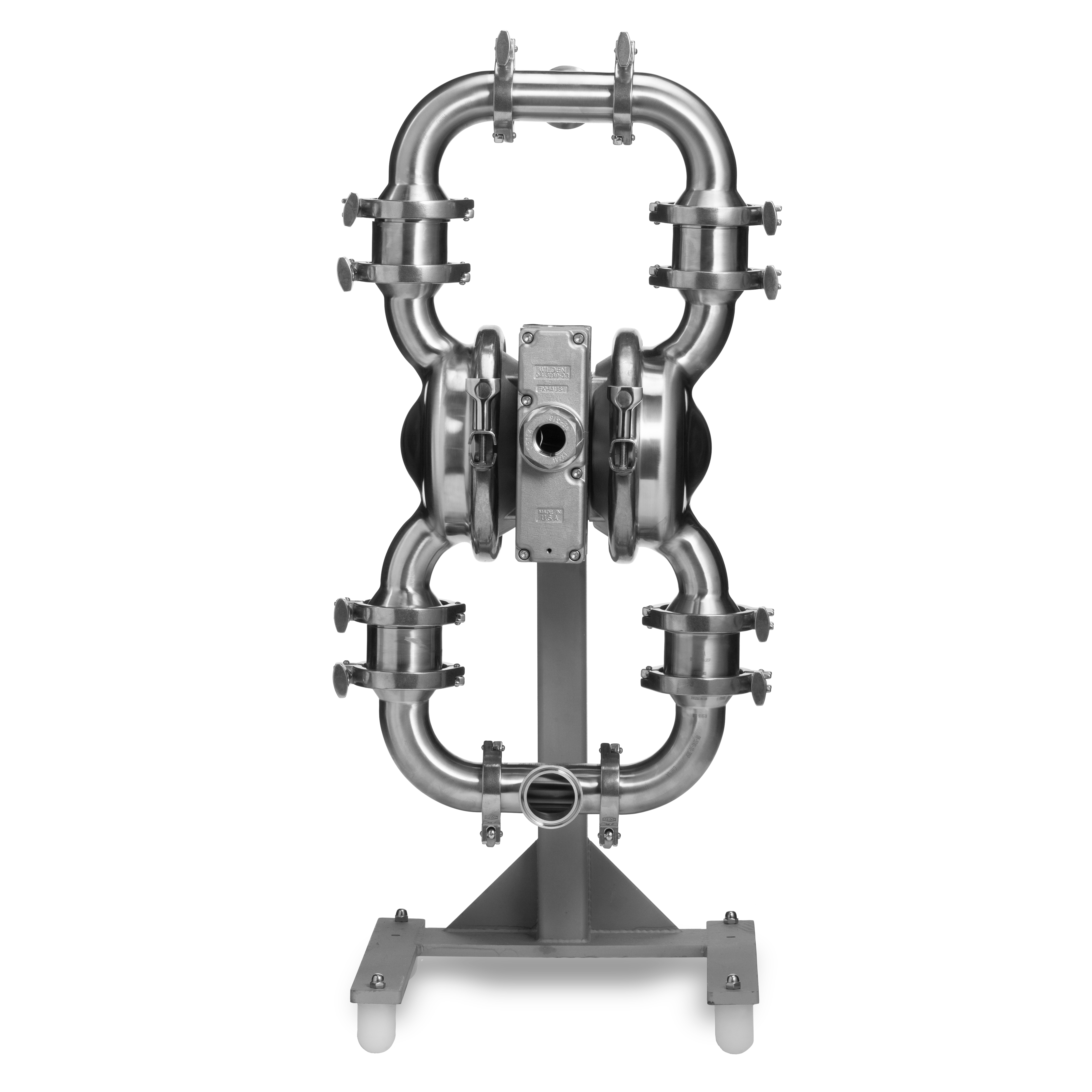

Attributes for item 04-13403
Model (in.):
1.5
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
1.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.5
Discharge Orientation:
CENTER VERTICAL
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ALUMINUM|NICKEL PLATED
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PTFE
O Rings Gasket Material:
PTFE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0

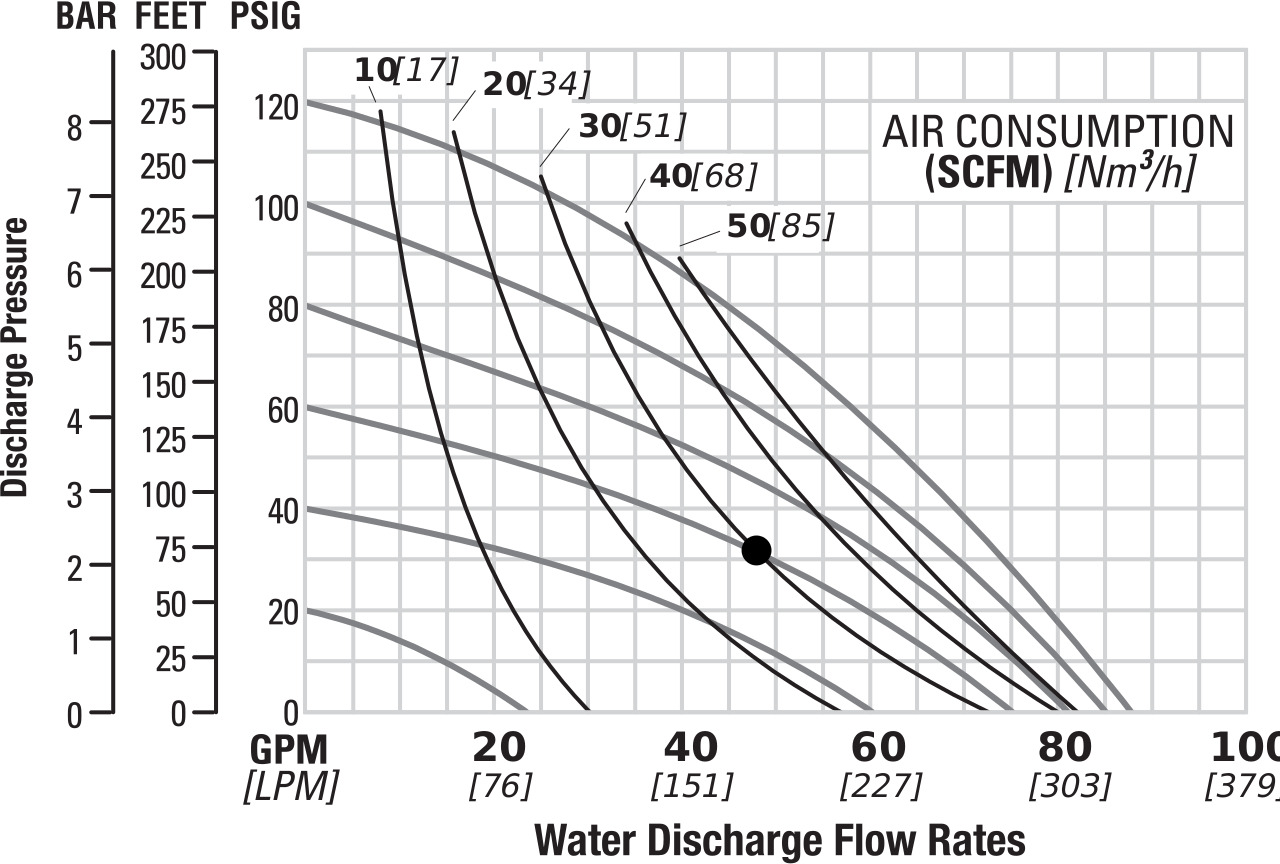

Max Flow Rate (gpm):
94.0
Flow Rate 40 Psi (gpm):
70.0
Flow Rate 50 Psi (gpm):
65.0
Flow Rate 60 Psi (gpm):
60.0
Flow Rate 70 Psi (gpm):
52.0
Flow Rate 80 Psi (gpm):
45.0
Flow Rate 90 Psi (gpm):
38.0
Flow Rate 100 Psi (gpm):
30.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
17.6
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
60.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
114
Shipping Dimensions:
22" W X 18.63" L X 34.88" H
Country Of Origin:
UNITIED STATES
