Attributes for item 04-13305
Model (in.):
1.5
Technical Construction:
BOLTED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
Santoprene®
Diaphragm Design:
EZ-INSTALL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
1.5
Inlet Orientation:
SIDE LEFT
Discharge Size (in.):
1.5
Discharge Orientation:
SIDE LEFT
Outer Piston Materials:
POLYPROPYLENE
Air Side Material:
POLYPROPYLENE
Valve Material:
Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
SANTOPRENE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.25

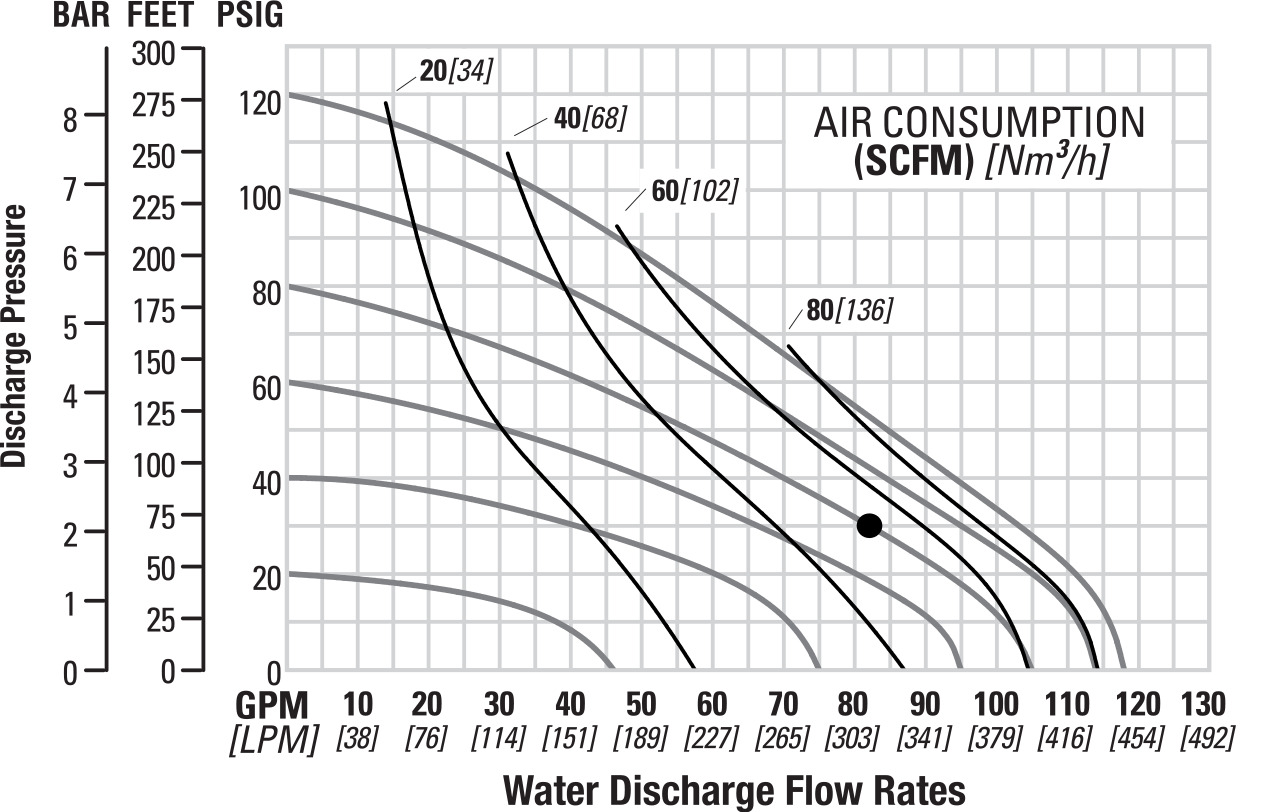

Max Flow Rate (gpm):
118.0
Flow Rate 40 Psi (gpm):
94.0
Flow Rate 50 Psi (gpm):
85.0
Flow Rate 60 Psi (gpm):
75.0
Flow Rate 70 Psi (gpm):
65.0
Flow Rate 80 Psi (gpm):
56.0
Flow Rate 90 Psi (gpm):
46.0
Flow Rate 100 Psi (gpm):
35.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
13.1
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
85.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
56
Shipping Dimensions:
20.88" W X 15.38" L X 29.38" H
Country Of Origin:
UNITIED STATES
