Attributes
Model (in.):
1.5
Technical Construction:
CLAMPED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
FKM
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI
Inlet Size (in.):
1.5
Inlet Orientation:
CENTER SWIVEL
Discharge Size (in.):
1.5
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
POLYPROPYLENE
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.18

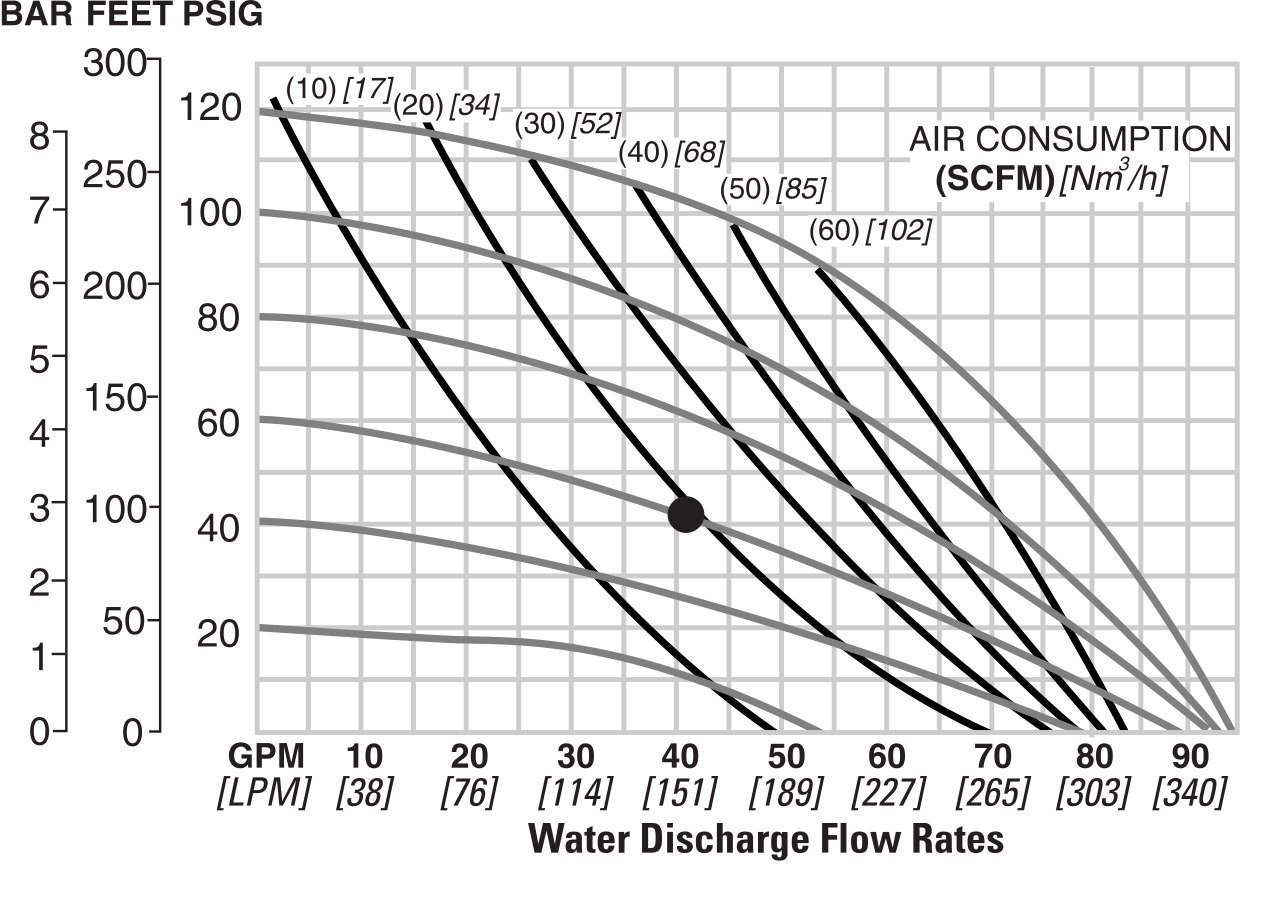

Max Flow Rate (gpm):
92.0
Flow Rate 40 Psi (gpm):
80.0
Flow Rate 50 Psi (gpm):
77.0
Flow Rate 60 Psi (gpm):
72.0
Flow Rate 70 Psi (gpm):
67.0
Flow Rate 80 Psi (gpm):
61.0
Flow Rate 90 Psi (gpm):
55.0
Flow Rate 100 Psi (gpm):
45.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
16.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
120.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
37
Shipping Dimensions:
17.88" W X 13.75" L X 22.19" H
Country Of Origin:
UNITIED STATES
