Attributes
Model:
1.5
Technical Construction:
BOLTED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
ANSI
Inlet Size:
1.5
Inlet Orientation:
SIDE LEFT
Discharge Size:
1.5
Discharge Orientation:
SIDE LEFT
Outer Piston Materials:
POLYPROPYLENE
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure:
125.0
Max Air Pressure:
125.0
Max Diameter Solids:
0.25

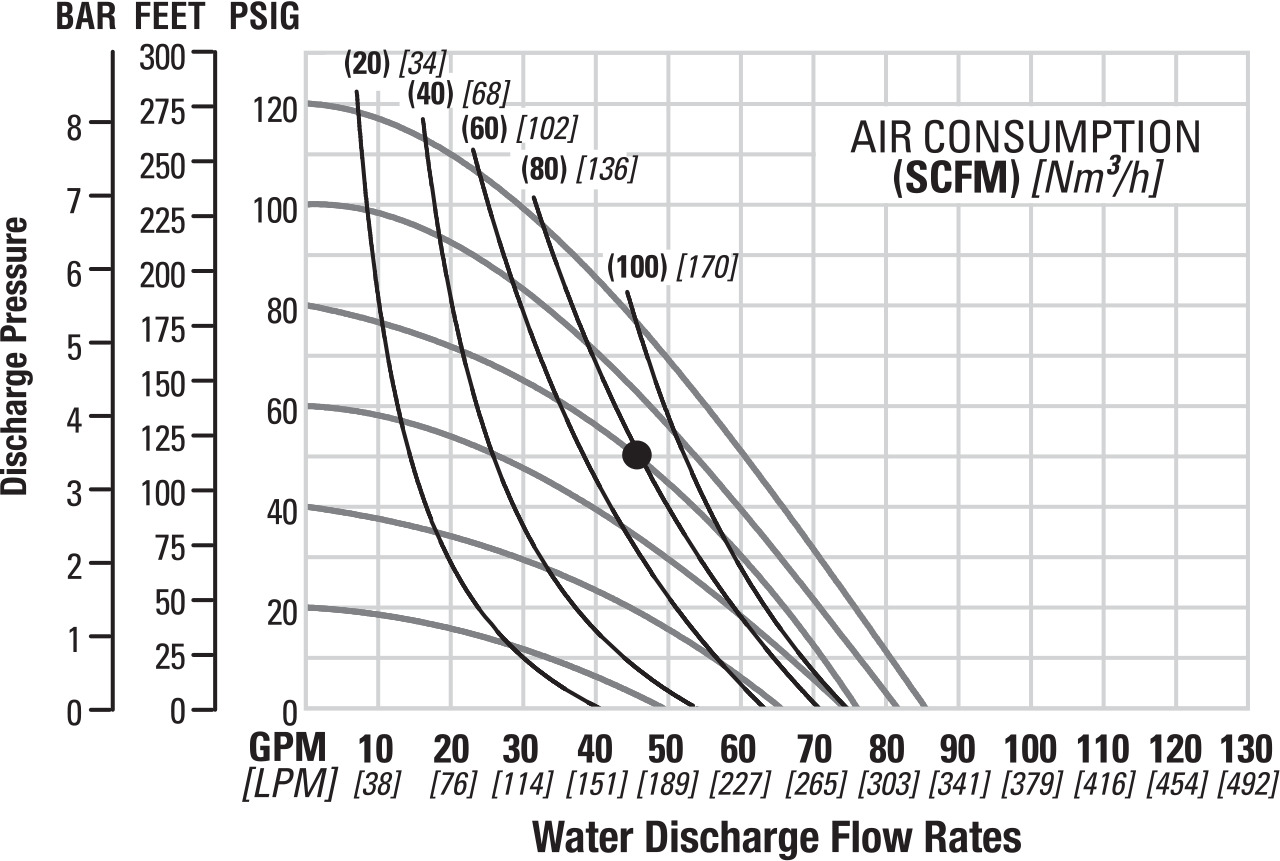

Max Flow Rate:
84.0
Flow Rate 40 Psi:
65.0
Flow Rate 50 Psi:
60.0
Flow Rate 60 Psi:
55.0
Flow Rate 70 Psi:
50.0
Flow Rate 80 Psi:
45.0
Flow Rate 90 Psi:
35.0
Flow Rate 100 Psi:
30.0
Flow Rate 120 Psi:
0.0
Max Suction Lift Dry:
10.8
Max Operating Temperature:
175.0
Min Operating Temperature:
40.0
Max Viscosity:
125000
Max Air Consumption:
125.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight:
56
Shipping Dimensions:
20.88" W X 15.38" L X 29.38" H
Country Of Origin:
UNITIED STATES
