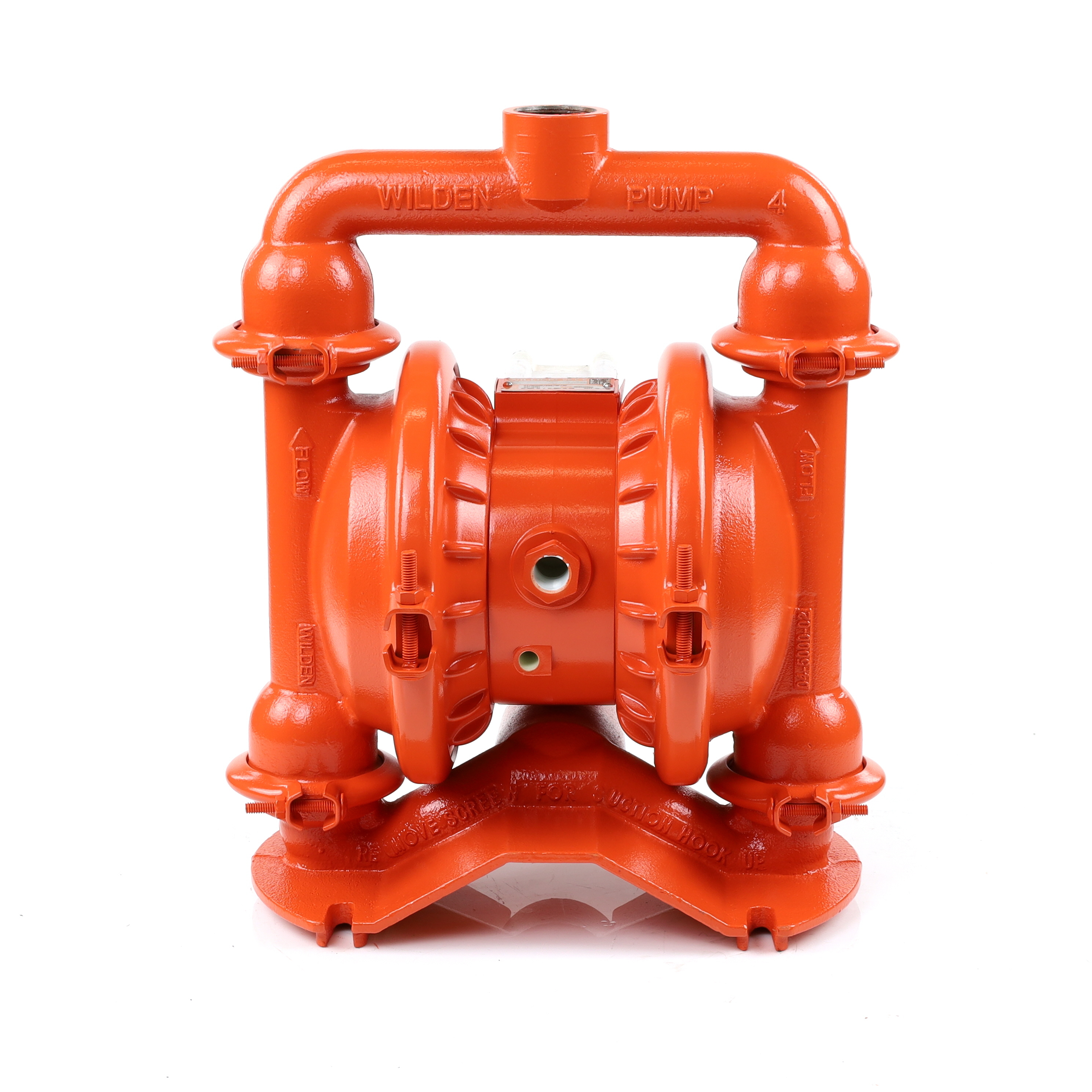

Attributes for item 04-10308
Model (in.):
1.5
Technical Construction:
CLAMPED
Wetted Path Material:
IRON
Diaphragm Material:
EPDM
Diaphragm Design:
ULTRA-FLEX
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
NPT
Inlet Size (in.):
1.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.5
Discharge Orientation:
CENTER VERTICAL
Outer Piston Materials:
IRON
Air Side Material:
POLYPROPYLENE
Valve Material:
EPDM
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
EPDM
O Rings Gasket Material:
EPDM
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0

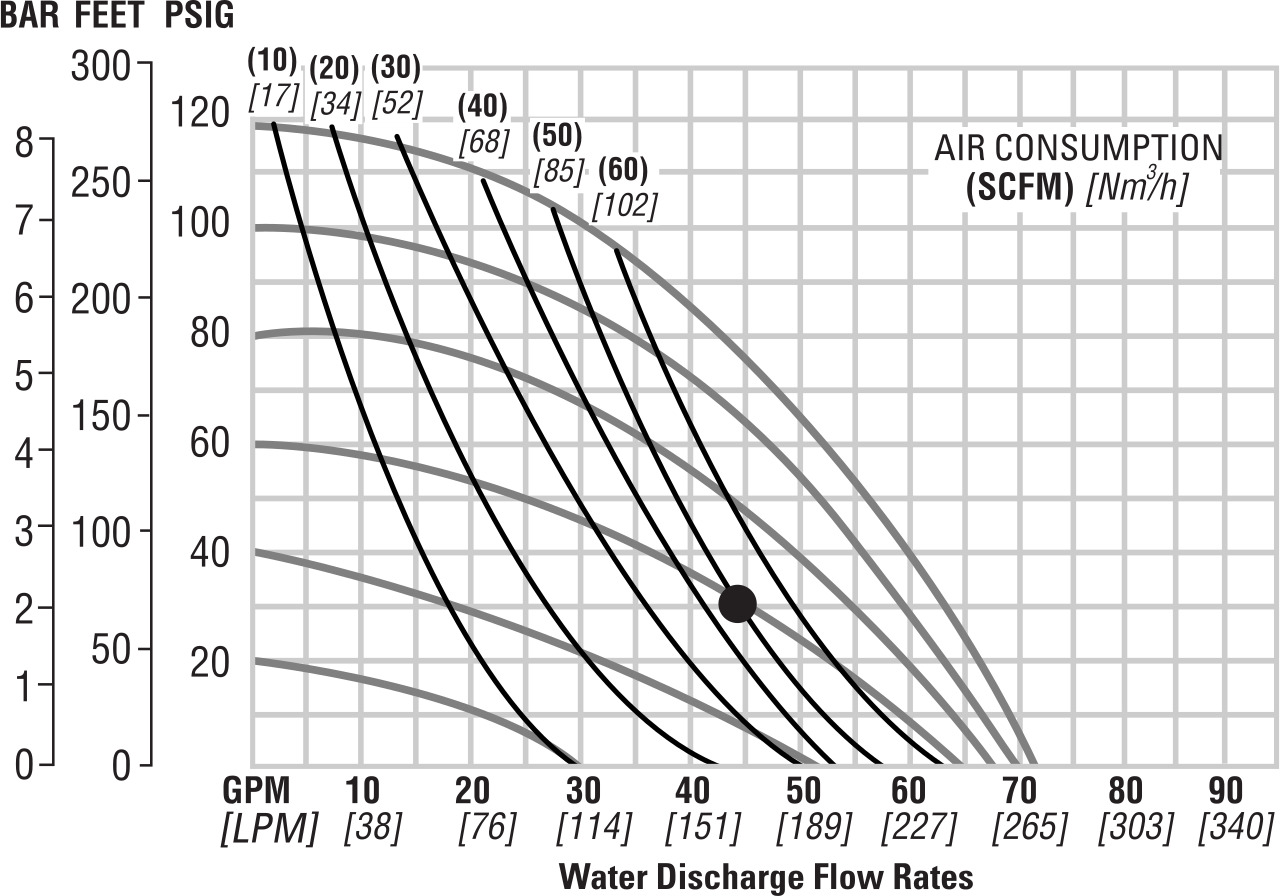

Max Flow Rate (gpm):
71.0
Flow Rate 40 Psi (gpm):
60.0
Flow Rate 50 Psi (gpm):
56.0
Flow Rate 60 Psi (gpm):
53.0
Flow Rate 70 Psi (gpm):
47.0
Flow Rate 80 Psi (gpm):
43.0
Flow Rate 90 Psi (gpm):
33.0
Flow Rate 100 Psi (gpm):
30.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
12.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
80.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
51
Shipping Dimensions:
16.25" W X 14.13" L X 18.5" H
Country Of Origin:
UNITIED STATES
