Attributes
Model:
1.5
Technical Construction:
CLAMPED
Wetted Path Material:
IRON
Diaphragm Material:
Neoprene
Diaphragm Design:
ULTRA-FLEX
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
BSPT
Inlet Size:
1.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size:
1.5
Discharge Orientation:
CENTER VERTICAL
Outer Piston Materials:
IRON
Air Side Material:
POLYPROPYLENE
Valve Material:
NEOPRENE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
NEOPRENE
O Rings Gasket Material:
NEOPRENE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure:
120.0
Max Air Pressure:
120.0

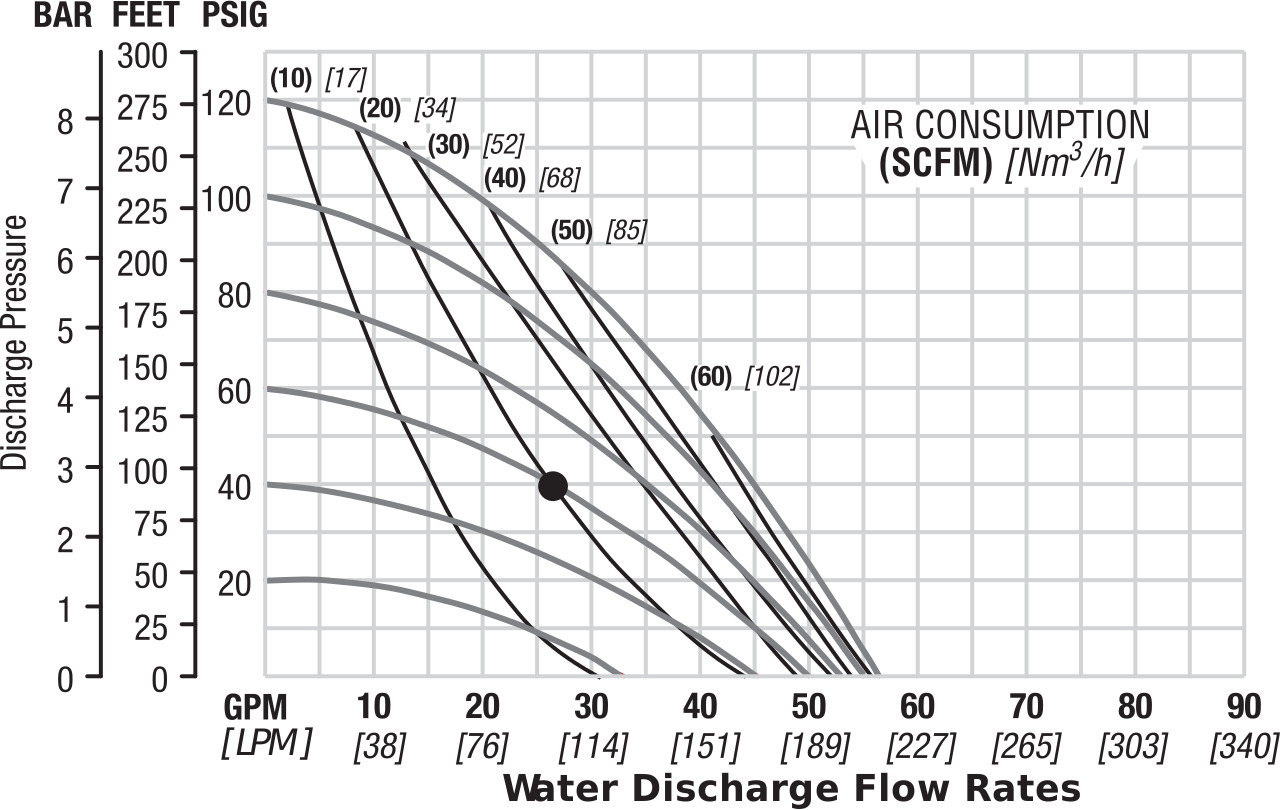

Max Flow Rate:
57.0
Flow Rate 40 Psi:
45.0
Flow Rate 50 Psi:
42.0
Flow Rate 60 Psi:
38.0
Flow Rate 70 Psi:
34.0
Flow Rate 80 Psi:
30.0
Flow Rate 90 Psi:
25.0
Flow Rate 100 Psi:
20.0
Flow Rate 120 Psi:
0.0
Max Suction Lift Dry:
14.0
Max Operating Temprature:
175.0
Min Operating Temprature:
32.0
Max Viscosity:
125000
Max Air Consumption:
65.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight:
54.65
Shipping Dimensions:
16.25" W X 14.13" L X 18.5" H
Country Of Origin:
UNITIED STATES
