Attributes for item 02-13374
Model (in.):
1
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Hytrel®
Diaphragm Design:
TPE IPD
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
1.0
Inlet Orientation:
SIDE LEFT
Discharge Size (in.):
1.0
Discharge Orientation:
SIDE LEFT
Outer Piston Materials:
NO OUTER PISTON
Air Side Material:
ALUMINUM
Valve Material:
Hytrel®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
HYTREL
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
.5" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.25

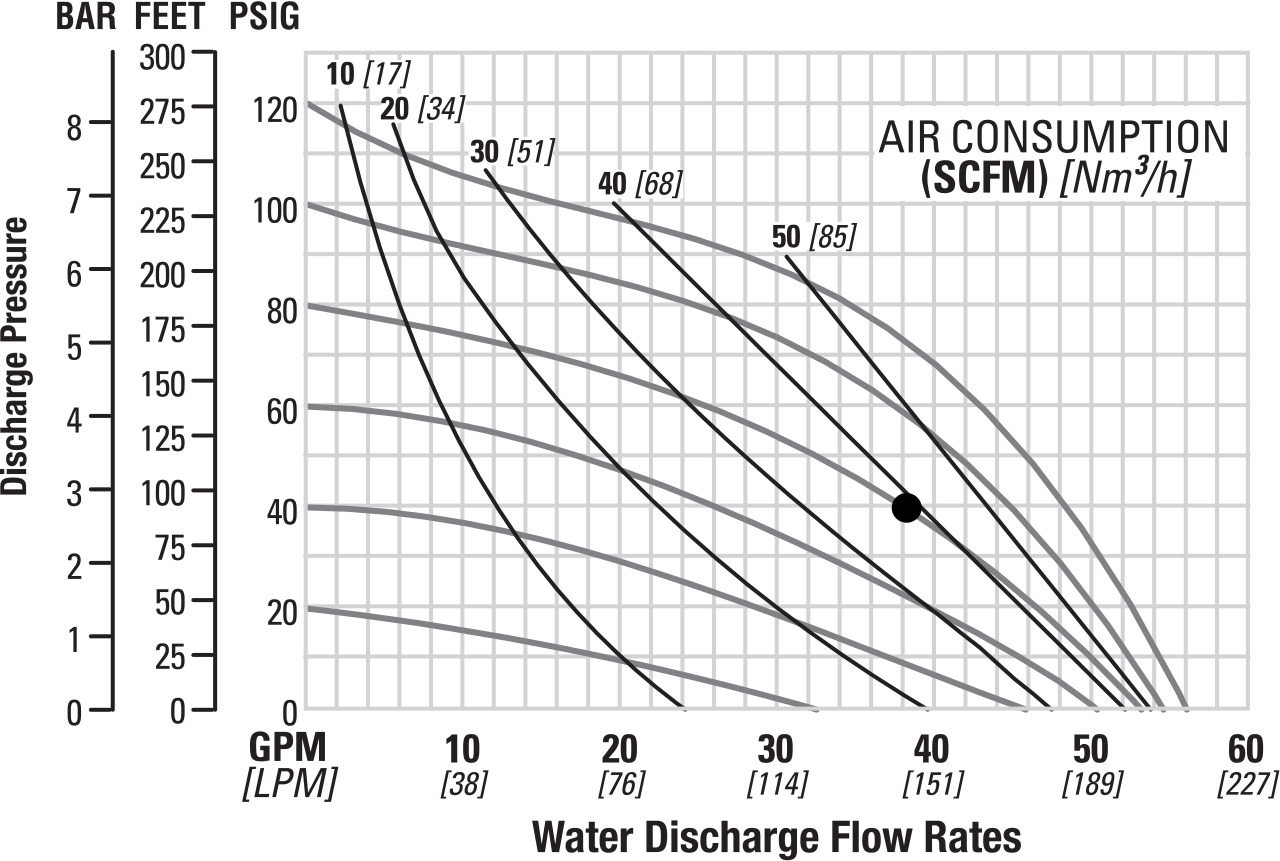

Max Flow Rate (gpm):
56.0
Flow Rate 40 Psi (gpm):
48.0
Flow Rate 50 Psi (gpm):
46.0
Flow Rate 60 Psi (gpm):
44.0
Flow Rate 70 Psi (gpm):
40.0
Flow Rate 80 Psi (gpm):
36.0
Flow Rate 90 Psi (gpm):
28.0
Flow Rate 100 Psi (gpm):
15.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
19.3
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
-20.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
60.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Dimensions:
19.25" W X 12.63" L X 13.75" H
Country Of Origin:
UNITIED STATES
