Attributes
Model:
1
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size:
1.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size:
1.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ALUMINUM|NICKEL PLATED
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PTFE
O Rings Gasket Material:
PTFE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure:
120.0
Max Air Pressure:
120.0
Max Diameter Solids:
0.13

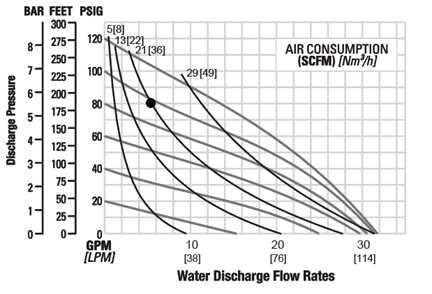

Max Flow Rate:
31.0
Flow Rate 40 Psi:
25.0
Flow Rate 50 Psi:
22.0
Flow Rate 60 Psi:
20.0
Flow Rate 70 Psi:
17.0
Flow Rate 80 Psi:
12.0
Flow Rate 90 Psi:
10.0
Flow Rate 100 Psi:
6.0
Flow Rate 120 Psi:
0.0
Max Suction Lift Dry:
10.0
Max Operating Temperature:
220.0
Min Operating Temperature:
40.0
Max Viscosity:
125000
Max Air Consumption:
30.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Dimensions:
22" W X 18.63" L X 34.88" H
Country Of Origin:
UNITIED STATES
