Attributes for item 02-13029
Model (in.):
1
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Santoprene®
Diaphragm Design:
SANITARY
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
1.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ALUMINUM|NICKEL PLATED
Valve Material:
SANITARY Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
SANITARY EPDM
O Rings Gasket Material:
SANITARY EPDM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.13

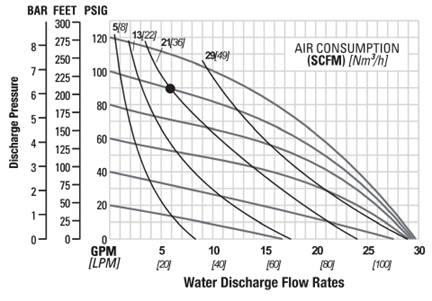

Max Flow Rate (gpm):
31.0
Flow Rate 40 Psi (gpm):
25.0
Flow Rate 50 Psi (gpm):
23.0
Flow Rate 60 Psi (gpm):
21.0
Flow Rate 70 Psi (gpm):
18.0
Flow Rate 80 Psi (gpm):
16.0
Flow Rate 90 Psi (gpm):
13.0
Flow Rate 100 Psi (gpm):
10.0
Flow Rate 120 Psi (gpm):
0.0

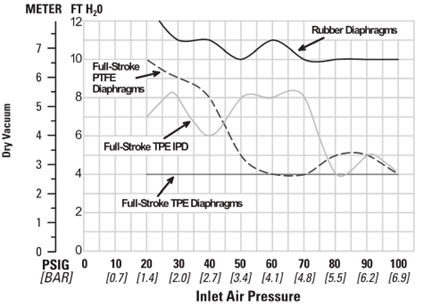

Max Suction Lift Dry (ft.):
8.0
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
30.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
80
Shipping Dimensions:
17.25" W X 15.25" L X 25.38" H
Country Of Origin:
UNITIED STATES
