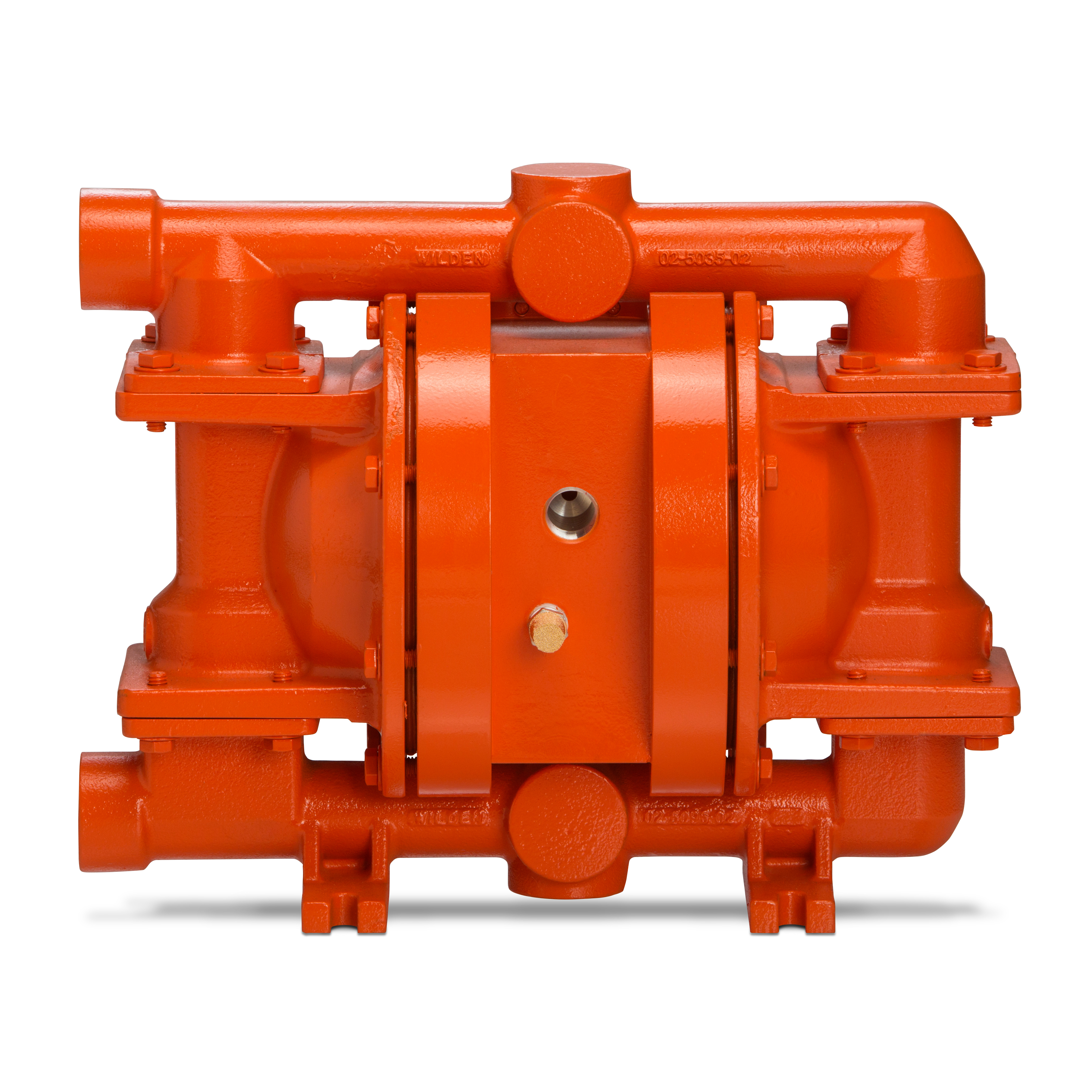

Attributes for item 02-12990
Model (in.):
1
Technical Construction:
BOLTED
Wetted Path Material:
IRON
Diaphragm Material:
FKM
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
1.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
IRON
Air Side Material:
ALUMINUM
Valve Material:
FKM
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
MILD STEEL
O Rings Gasket Material:
FKM
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.25
Max Flow Rate (gpm):
54.0
Flow Rate 40 Psi (gpm):
48.0
Flow Rate 50 Psi (gpm):
47.0
Flow Rate 60 Psi (gpm):
45.0
Flow Rate 70 Psi (gpm):
40.0
Flow Rate 80 Psi (gpm):
35.0
Flow Rate 90 Psi (gpm):
30.0
Flow Rate 100 Psi (gpm):
20.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
22.7
Max Operating Temperature (°F):
350.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
60.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Dimensions:
19.25" W X 12.63" L X 13.75" H
Country Of Origin:
UNITIED STATES
