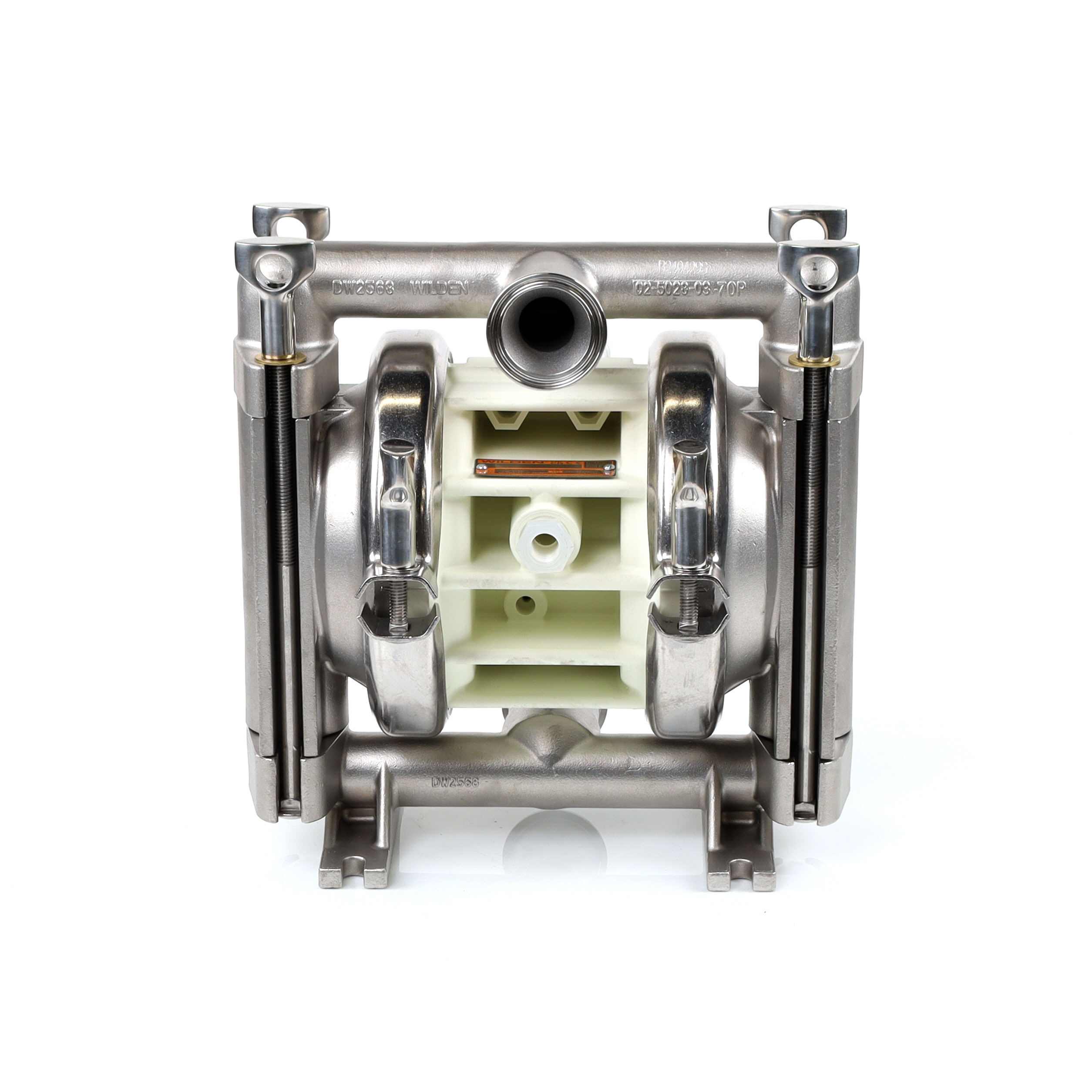

Attributes for item 02-12602
Model (in.):
1
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Hytrel®
Diaphragm Design:
TRADITIONAL SANITARY
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
1.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYPROPYLENE
Valve Material:
Hytrel®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
HYTREL
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
.25" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.13
Max Flow Rate (gpm):
45.2
Flow Rate 40 Psi (gpm):
40.0
Flow Rate 50 Psi (gpm):
38.0
Flow Rate 60 Psi (gpm):
37.0
Flow Rate 70 Psi (gpm):
35.0
Flow Rate 80 Psi (gpm):
31.0
Flow Rate 90 Psi (gpm):
29.0
Flow Rate 100 Psi (gpm):
27.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
25.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
60.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
?
3A:
NO
EHEDGE:
NO
CSA:
NO
Shipping Weight (lbs):
40
Shipping Dimensions:
11.75" W X 11.75" L X 12.13" H
Country Of Origin:
UNITIED STATES
