Attributes for item 02-12540
Model (in.):
1
Technical Construction:
Clamped
Wetted Path Material:
Polypropylene
Diaphragm Material:
PTFE|Neoprene
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
DIN
Inlet Size (in.):
1.0
Inlet Orientation:
Center Swivel
Discharge Size (in.):
1.0
Discharge Orientation:
Center Swivel
Outer Piston Materials:
PVDF
Air Side Material:
Polypropylene
Valve Material:
PTFE
Valve Type:
Valve Ball
Valve Seat MATERIAL:
Polypropylene
O Rings Gasket Material:
PTFE-Encapsulated FKM
Hardware Material:
Stainless Steel
Muffler Material:
Plastic
Self Priming:
TRUE
Power Source:
Compressed Air
Air Inlet Connection:
1/4" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.13

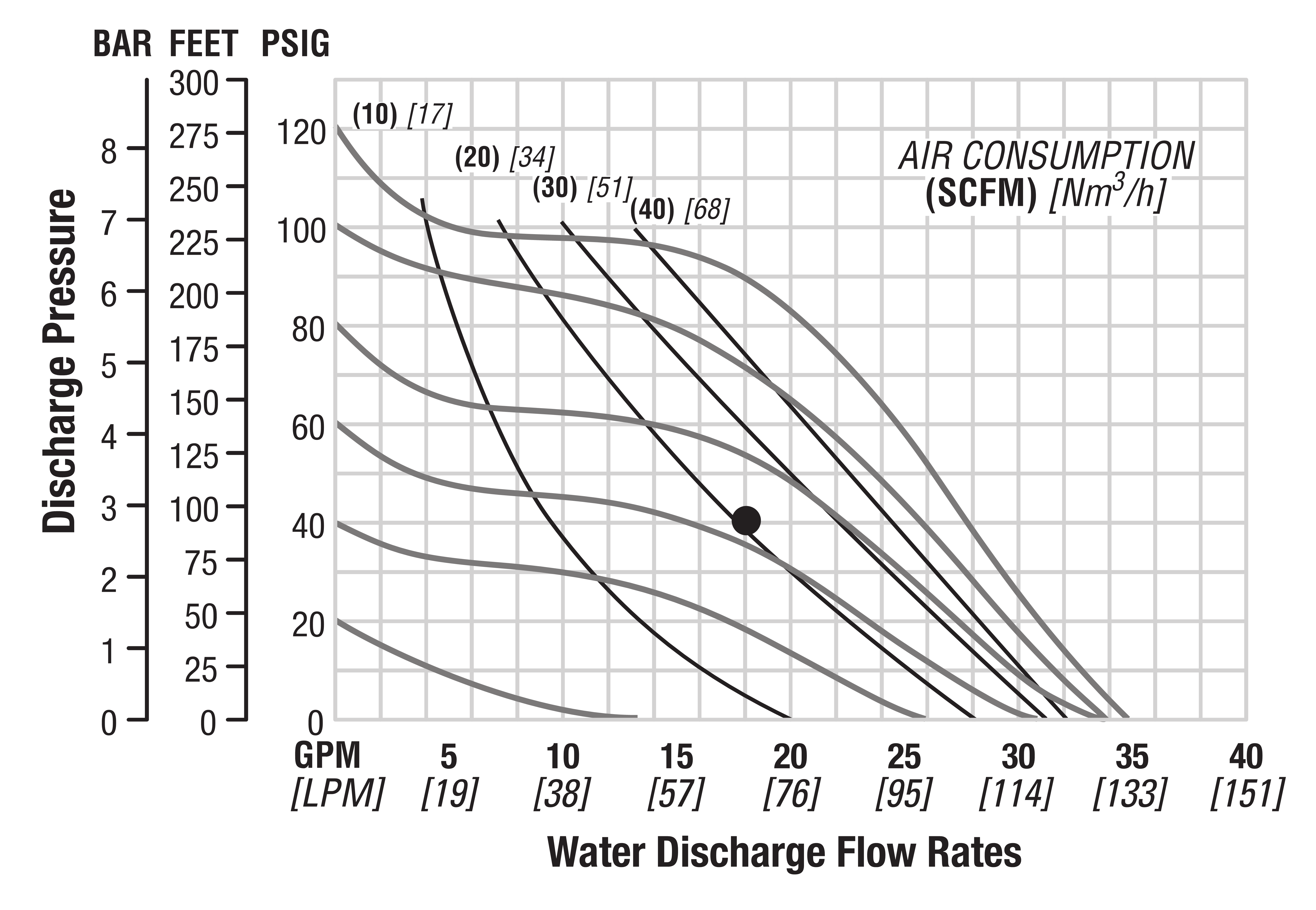

Max Flow Rate (gpm):
35.0
Flow Rate 40 Psi (gpm):
28.0
Flow Rate 50 Psi (gpm):
27.0
Flow Rate 60 Psi (gpm):
25.0
Flow Rate 70 Psi (gpm):
24.0
Flow Rate 80 Psi (gpm):
22.0
Flow Rate 90 Psi (gpm):
17.0
Flow Rate 100 Psi (gpm):
6.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
11.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
50.0
ATEX Rated:
FALSE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Weight (lbs):
18
Country Of Origin:
USA
Family:
Plastic Industrial
Lead Time (days):
10
