Attributes for item 02-12444
Model (in.):
1
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
NPT
Inlet Size (in.):
1.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.0
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
PTFE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
.25" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.13

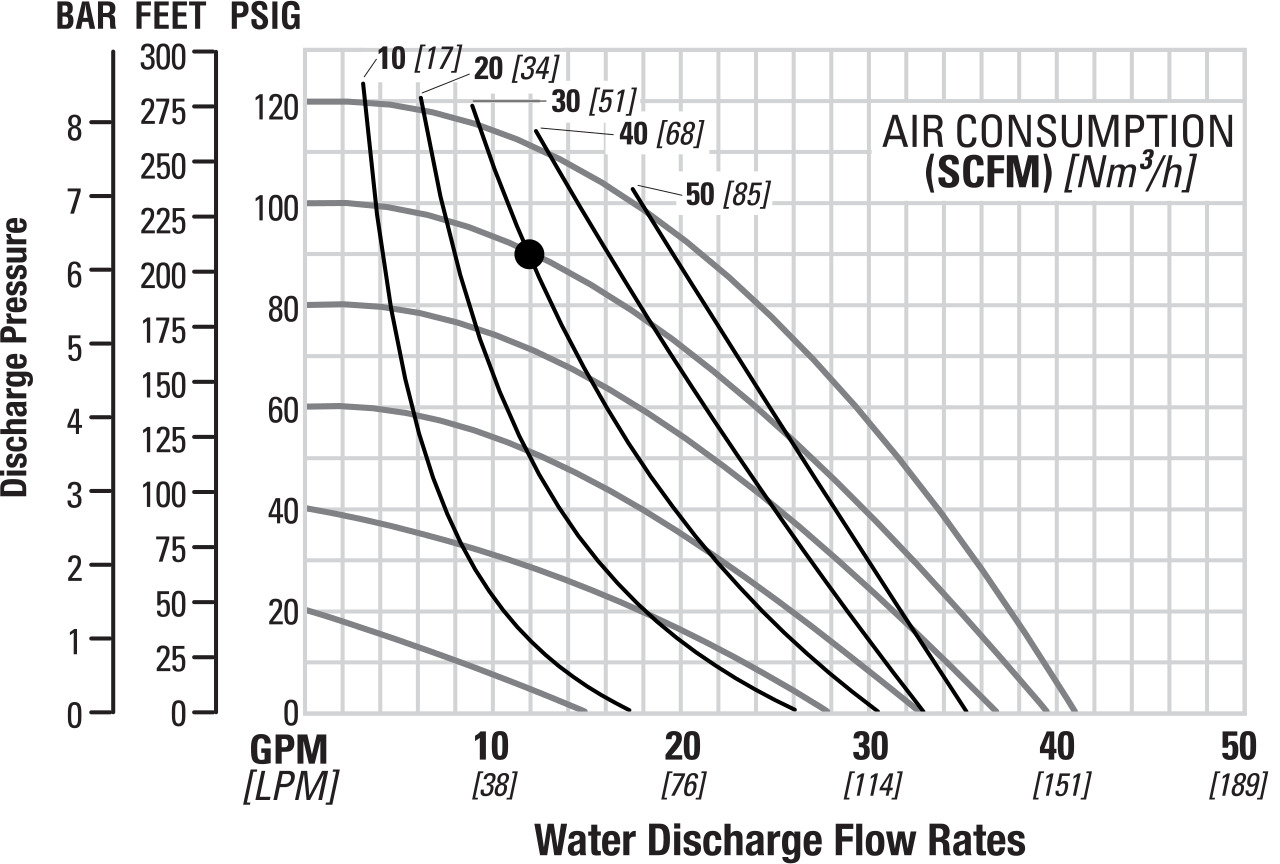

Max Flow Rate (gpm):
41.0
Flow Rate 40 Psi (gpm):
34.0
Flow Rate 50 Psi (gpm):
31.0
Flow Rate 60 Psi (gpm):
29.0
Flow Rate 70 Psi (gpm):
27.0
Flow Rate 80 Psi (gpm):
26.0
Flow Rate 90 Psi (gpm):
21.0
Flow Rate 100 Psi (gpm):
19.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
9.1
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
65.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
37
Shipping Dimensions:
11.75" W X 11.75" L X 12.13" H
Country Of Origin:
UNITIED STATES
