Attributes
Model:
1
Technical Construction:
BOLTED
Wetted Path Material:
PVDF
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
NPT
Inlet Size:
1.0
Inlet Orientation:
SIDE LEFT
Discharge Size:
1.0
Discharge Orientation:
SIDE LEFT
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure:
120.0
Max Air Pressure:
120.0
Max Diameter Solids:
0.18

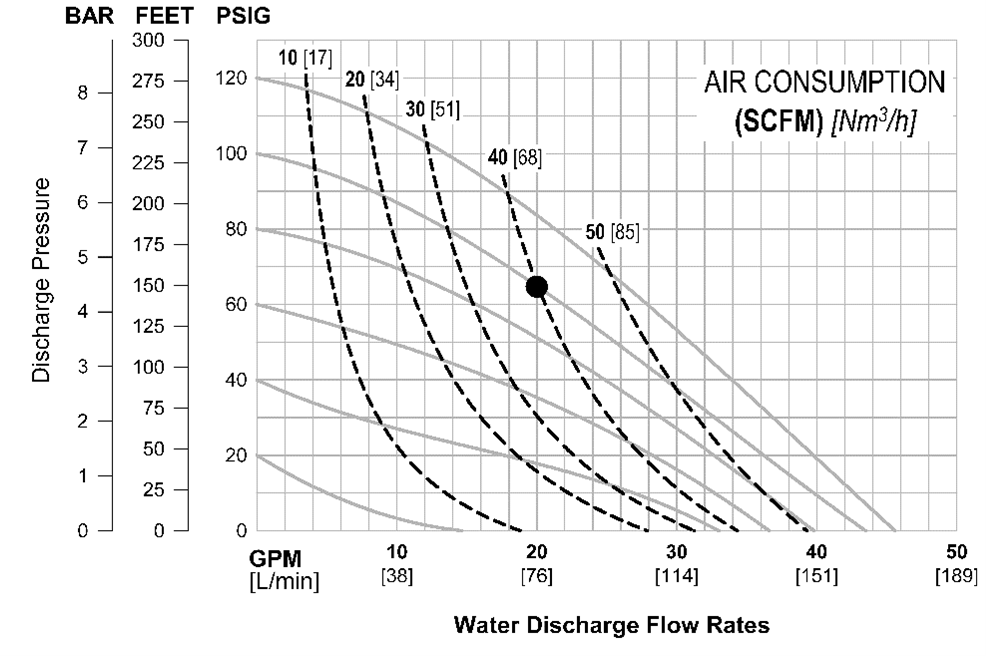

Max Flow Rate:
46.0
Flow Rate 40 Psi:
35.0
Flow Rate 50 Psi:
31.0
Flow Rate 60 Psi:
28.0
Flow Rate 70 Psi:
25.0
Flow Rate 80 Psi:
22.0
Flow Rate 90 Psi:
18.0
Flow Rate 100 Psi:
15.0
Flow Rate 120 Psi:
0.0
Max Suction Lift Dry:
7.9
Max Operating Temperature:
175.0
Min Operating Temperature:
40.0
Max Viscosity:
125000
Max Air Consumption:
60.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight:
32
Shipping Dimensions:
21" W X 12.63" L X 18.38" H
Country Of Origin:
UNITIED STATES
