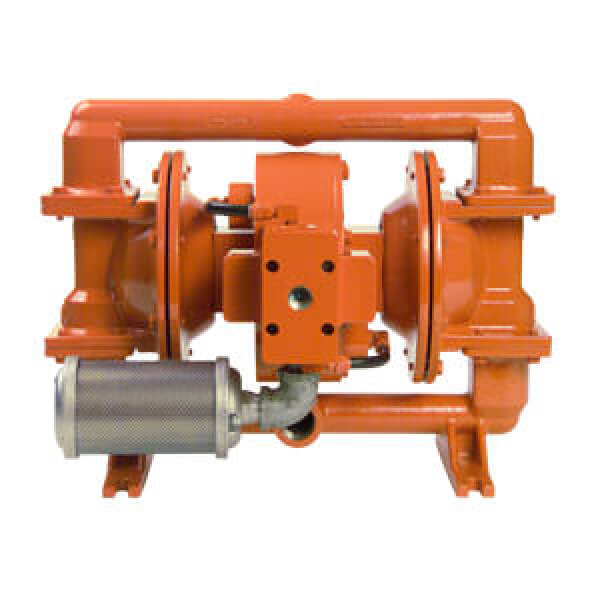

Attributes for item 02-11705
Model (in.):
1
Technical Construction:
BOLTED
Wetted Path Material:
IRON
Diaphragm Material:
Santoprene®
Diaphragm Design:
SANITARY
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
1.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
IRON
Air Side Material:
ALUMINUM
Valve Material:
Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
MILD STEEL
O Rings Gasket Material:
SANTOPRENE
Hardware Material:
DIAPHRAGM DEPENDENT
Muffler Material:
Aluminum
Self Priming:
YES
Power Source:
COMPRESSED AIR
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
-40.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
85
Shipping Dimensions:
19.88" W X 14.13" L X 15" H
Country Of Origin:
UNITIED STATES
