Attributes for item 01-11406
Model (in.):
0.5
Technical Construction:
Clamped
Wetted Path Material:
Stainless Steel
Diaphragm Material:
PTFE|EPDM
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
0.5
Inlet Orientation:
Center Swivel
Discharge Size (in.):
0.5
Discharge Orientation:
Center Swivel
Outer Piston Materials:
Stainless Steel
Air Side Material:
Aluminum
Valve Material:
FKM
Valve Type:
Valve Ball
Valve Seat MATERIAL:
Stainless Steel
O Rings Gasket Material:
PTFE
Hardware Material:
Stainless Steel
Muffler Material:
Aluminum
Self Priming:
TRUE
Power Source:
Compressed Air
Air Inlet Connection:
1/2" NPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.06

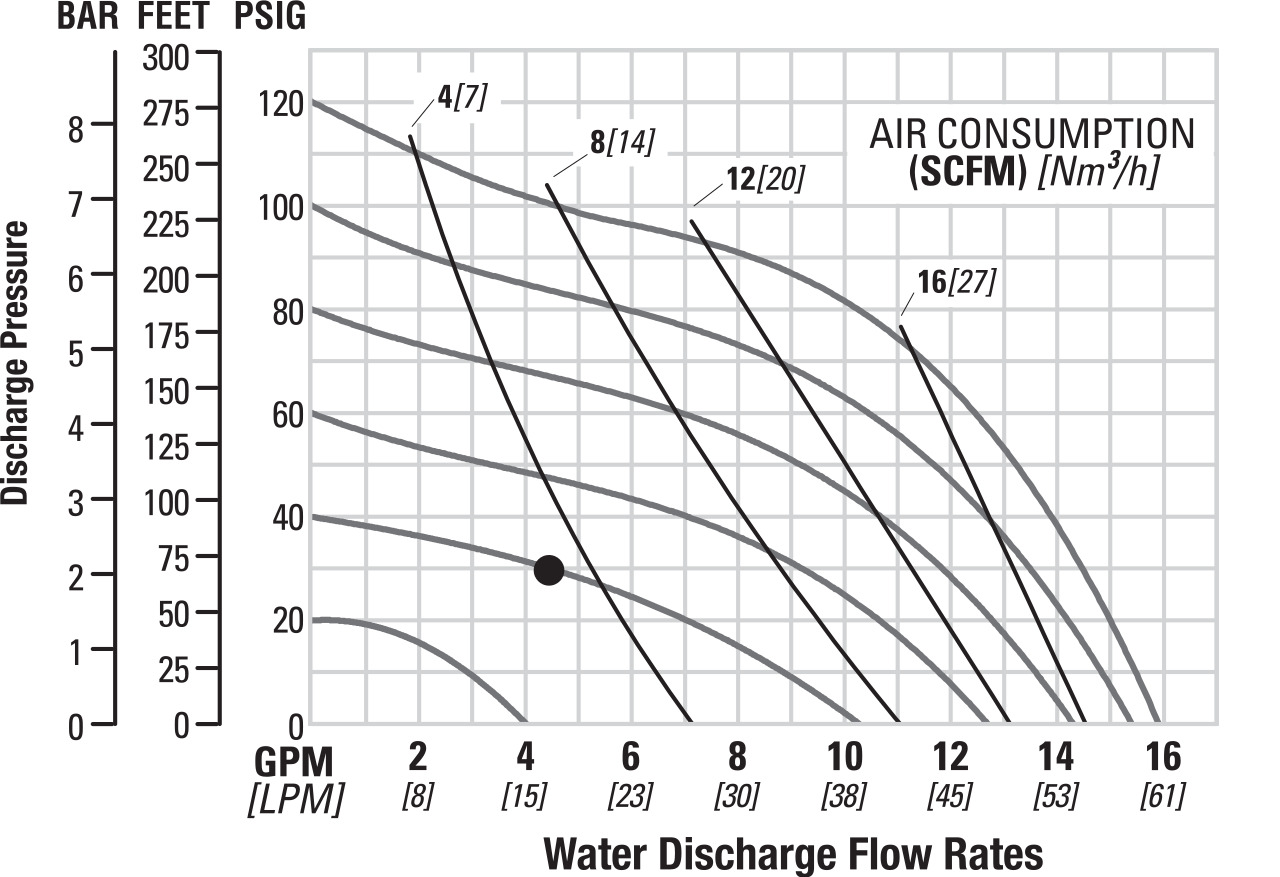

Max Flow Rate (gpm):
15.8
Flow Rate 40 Psi (gpm):
14.0
Flow Rate 50 Psi (gpm):
13.3
Flow Rate 60 Psi (gpm):
12.5
Flow Rate 70 Psi (gpm):
11.5
Flow Rate 80 Psi (gpm):
10.3
Flow Rate 90 Psi (gpm):
8.4
Flow Rate 100 Psi (gpm):
4.5
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
14.2
Max Suction Lift Wet (ft.):
31.7
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
40.0
Atex Rated:
TRUE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Dimensions:
10.75" W X 10" L X 11" H
Country Of Origin:
USA
