Attributes
Model:
0.5
Technical Construction:
BOLTED
Wetted Path Material:
PVDF
Diaphragm Material:
Santoprene®
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size:
0.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size:
0.5
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
SANTOPRENE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure:
125.0
Max Air Pressure:
125.0
Max Diameter Solids:
0.06

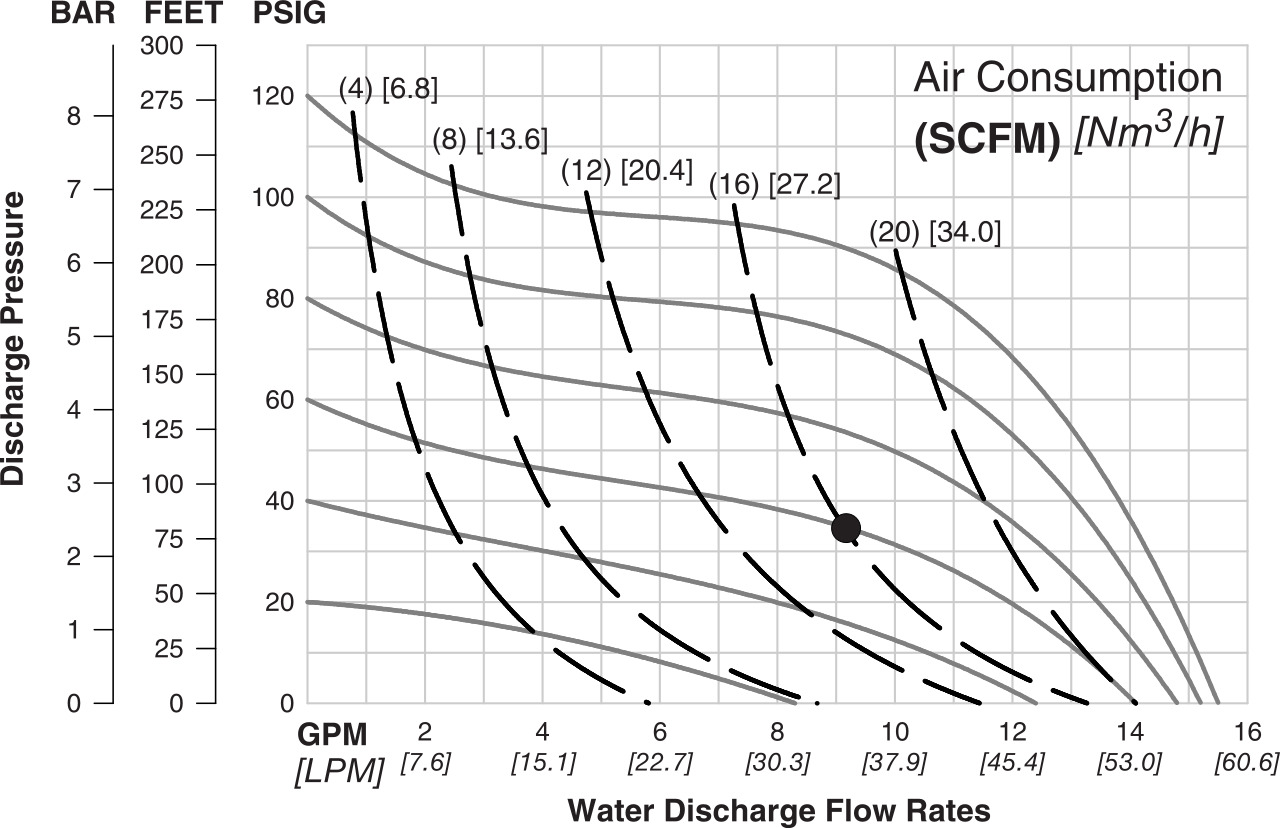

Max Flow Rate:
15.5
Flow Rate 40 Psi:
13.8
Flow Rate 50 Psi:
13.3
Flow Rate 60 Psi:
12.7
Flow Rate 70 Psi:
11.8
Flow Rate 80 Psi:
10.8
Flow Rate 90 Psi:
9.0
Flow Rate 100 Psi:
3.2
Flow Rate 120 Psi:
0.0
Max Suction Lift Dry:
17.0
Max Operating Temperature:
175.0
Min Operating Temperature:
32.0
Max Air Consumption:
25.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight:
14
Shipping Dimensions:
11.88" W X 10.88" L X 12.13" H
Country Of Origin:
UNITIED STATES
