Attributes
Model (in.):
0.5
Technical Construction:
BOLTED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
PTFE
Diaphragm Design:
PTFE IPD
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
NPT
Inlet Size (in.):
0.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
0.5
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
NO OUTER PISTON
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.06

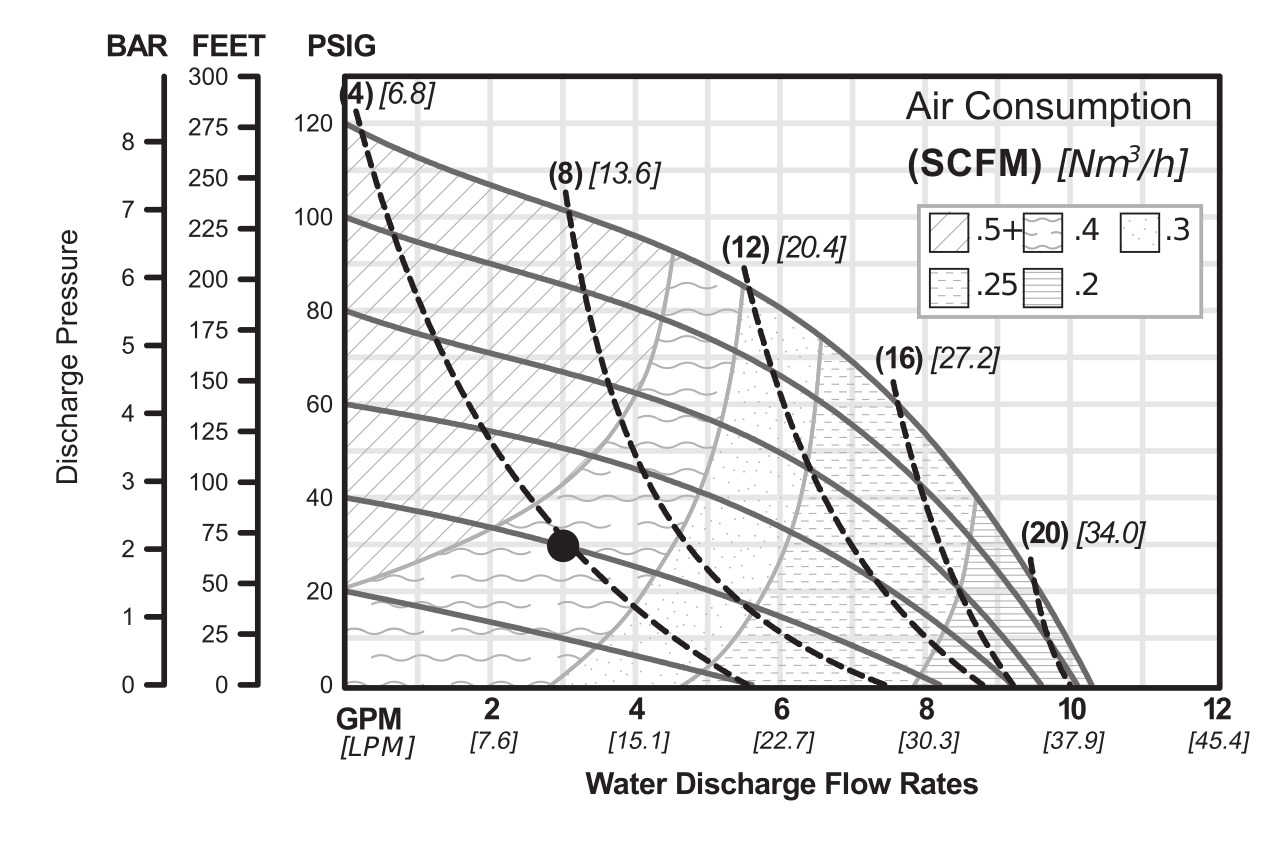

Max Flow Rate (gpm):
10.1
Flow Rate 40 Psi (gpm):
8.7
Flow Rate 50 Psi (gpm):
8.2
Flow Rate 60 Psi (gpm):
7.7
Flow Rate 70 Psi (gpm):
7.0
Flow Rate 80 Psi (gpm):
6.0
Flow Rate 90 Psi (gpm):
5.0
Flow Rate 100 Psi (gpm):
3.3
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
18.7
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Air Consumption (psi):
21.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
12.28
Shipping Dimensions:
11.88" W X 10.88" L X 12.13" H
Country Of Origin:
UNITIED STATES
