Attributes for item 01-10561
Model (in.):
0.5
Technical Construction:
CLAMPED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
EPDM
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
0.5
Inlet Orientation:
CENTER SWIVEL
Discharge Size (in.):
0.5
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
POLYPROPYLENE
Air Side Material:
POLYPROPYLENE
Valve Material:
EPDM
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/4" FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.06

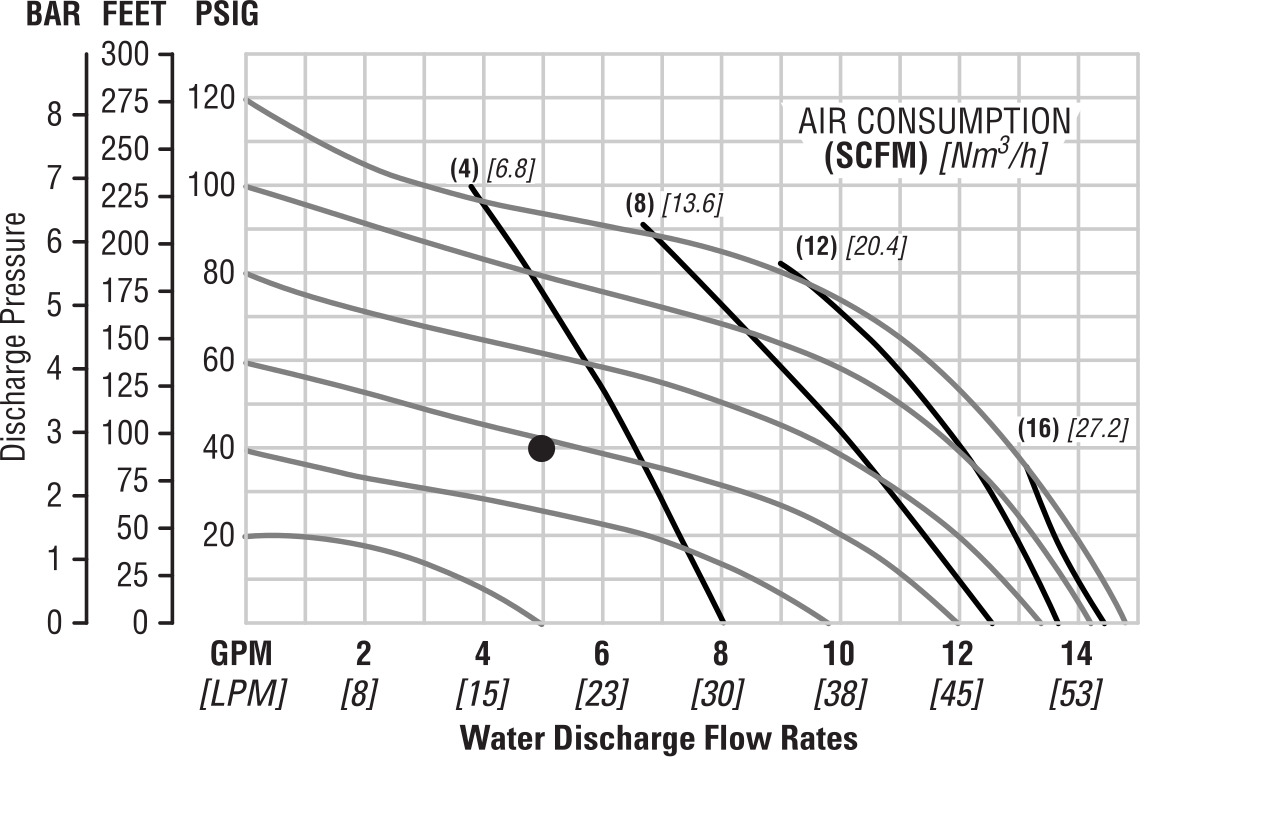

Max Flow Rate (gpm):
14.8
Flow Rate 40 Psi (gpm):
12.8
Flow Rate 50 Psi (gpm):
12.2
Flow Rate 60 Psi (gpm):
11.5
Flow Rate 70 Psi (gpm):
10.5
Flow Rate 80 Psi (gpm):
9.0
Flow Rate 90 Psi (gpm):
6.5
Flow Rate 100 Psi (gpm):
3.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
20.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Air Consumption (psi):
18.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
9
Shipping Dimensions:
10.75" W X 10" L X 11" H
Country Of Origin:
UNITIED STATES
