Attributes for item 01-10080
Model (in.):
0.5
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Buna-N
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
0.5
Inlet Orientation:
CENTER SWIVEL
Discharge Size (in.):
0.5
Discharge Orientation:
CENTER SWIVEL
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ACETAL
Valve Material:
Buna-N
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
Buna-N
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/4" NPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.06

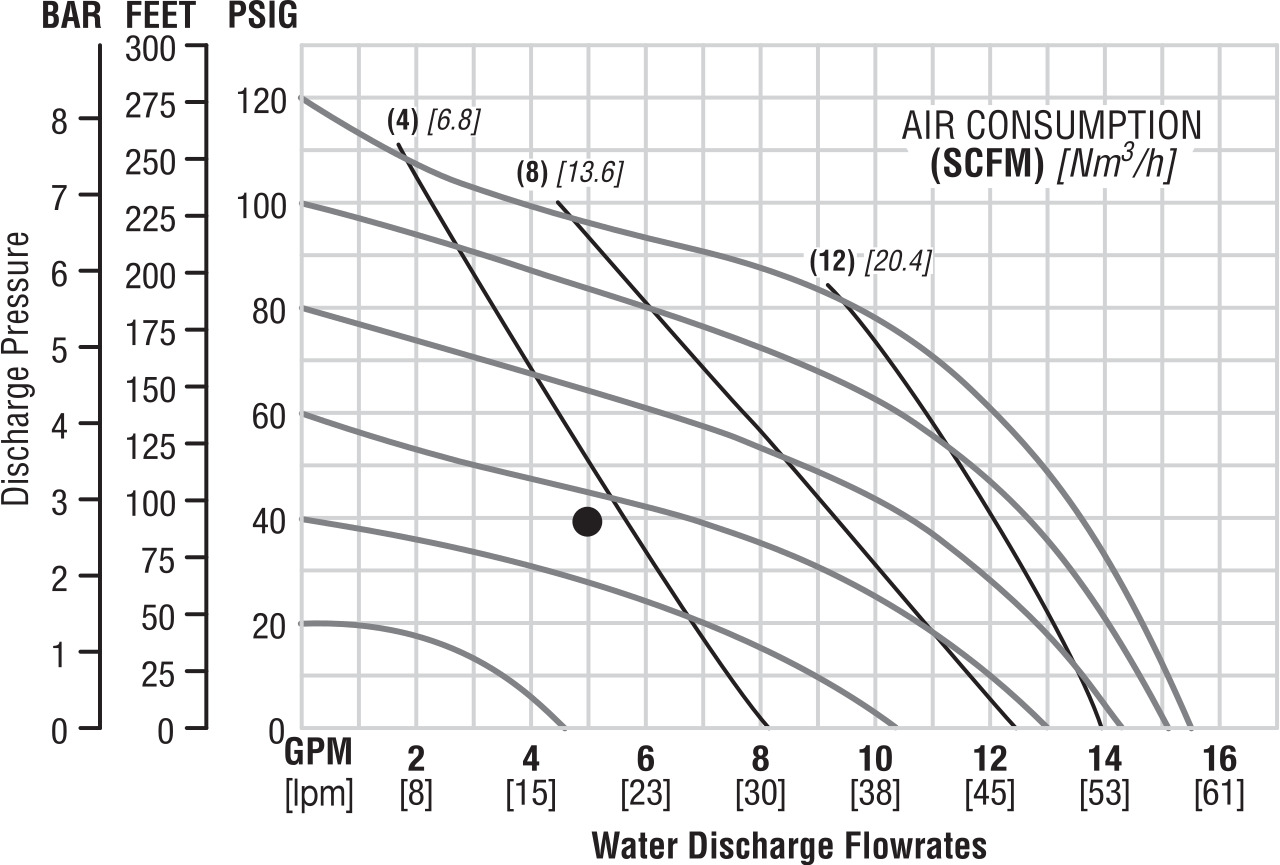

Max Flow Rate (gpm):
15.5
Flow Rate 40 Psi (gpm):
13.5
Flow Rate 50 Psi (gpm):
13.0
Flow Rate 60 Psi (gpm):
12.0
Flow Rate 70 Psi (gpm):
11.0
Flow Rate 80 Psi (gpm):
9.8
Flow Rate 90 Psi (gpm):
7.1
Flow Rate 100 Psi (gpm):
4.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
19.0
Max Operating Temperature (°F):
180.0
Min Operating Temperature (°F):
10.0
Max Air Consumption (psi):
16.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
20
Shipping Dimensions:
10.75" W X 10" L X 11" H
Country Of Origin:
UNITIED STATES
