Attributes
Model (in.):
0.25
Technical Construction:
BOLTED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
NPT
Inlet Size (in.):
0.25
Inlet Orientation:
SIDE RIGHT
Discharge Size (in.):
0.25
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
POLYPROPYLENE
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
POLYPROPYLENE
O Rings Gasket Material:
PTFE
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
0.25" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.06

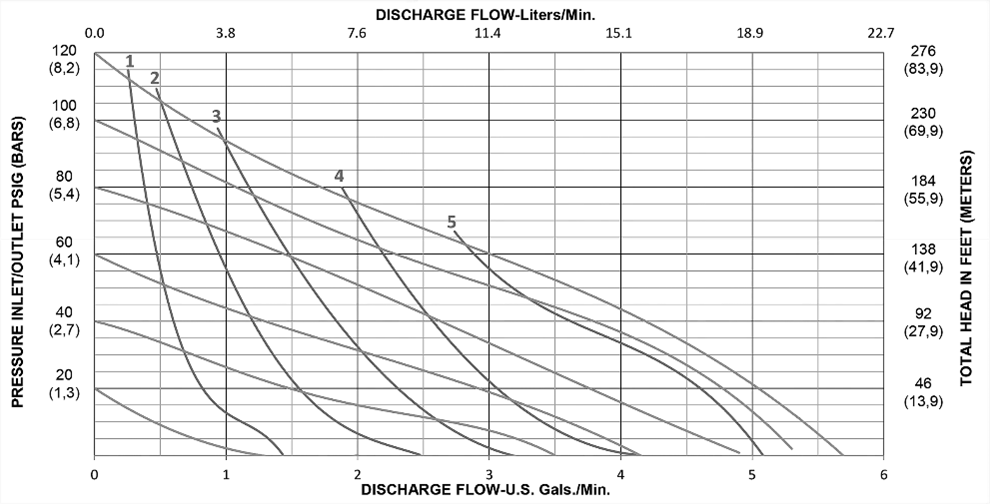

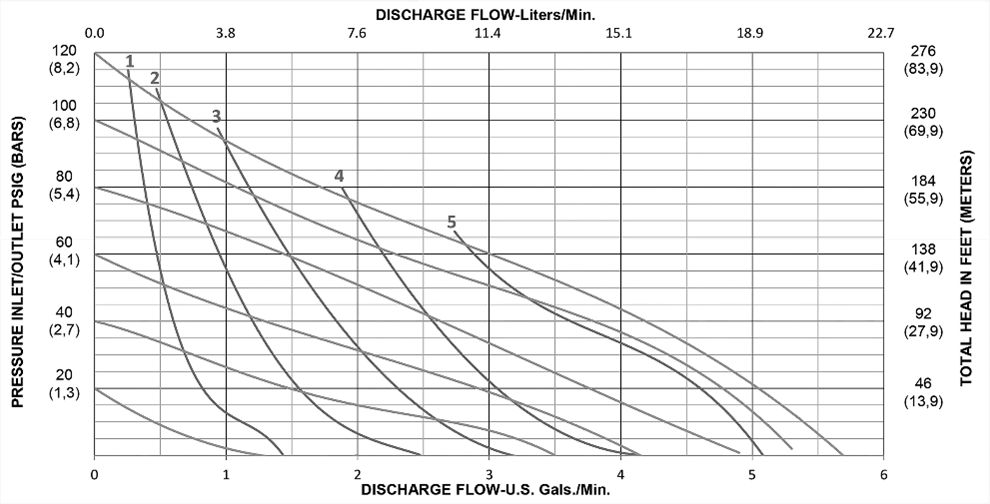

Max Flow Rate (gpm):
5.7
Flow Rate 40 Psi (gpm):
4.2
Flow Rate 50 Psi (gpm):
3.6
Flow Rate 60 Psi (gpm):
3.0
Flow Rate 70 Psi (gpm):
2.2
Flow Rate 80 Psi (gpm):
1.7
Flow Rate 90 Psi (gpm):
1.2
Flow Rate 100 Psi (gpm):
0.7
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
14.0
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
7.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
4
Country Of Origin:
UNITIED STATES
