Attributes
Model:
0.25
Technical Construction:
CLAMPED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
PTFE
Diaphragm Design:
PTFE IPD
Diaphragm Stroke:
Reduced-Stroke
Connection Standard:
NPT
Inlet Size:
0.25
Inlet Orientation:
SIDE RIGHT
Discharge Size:
0.25
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
NO OUTER PISTON
Air Side Material:
POLYPROPYLENE
Valve Material:
PTFE
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
PTFE-ENCAPSULATED FKM
Hardware Material:
STAINLESS STEEL
Muffler Material:
Plastic
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
0.125" FNPT
Maximum Allowable Operating Pressure:
125.0
Max Air Pressure:
125.0
Max Diameter Solids:
0.02

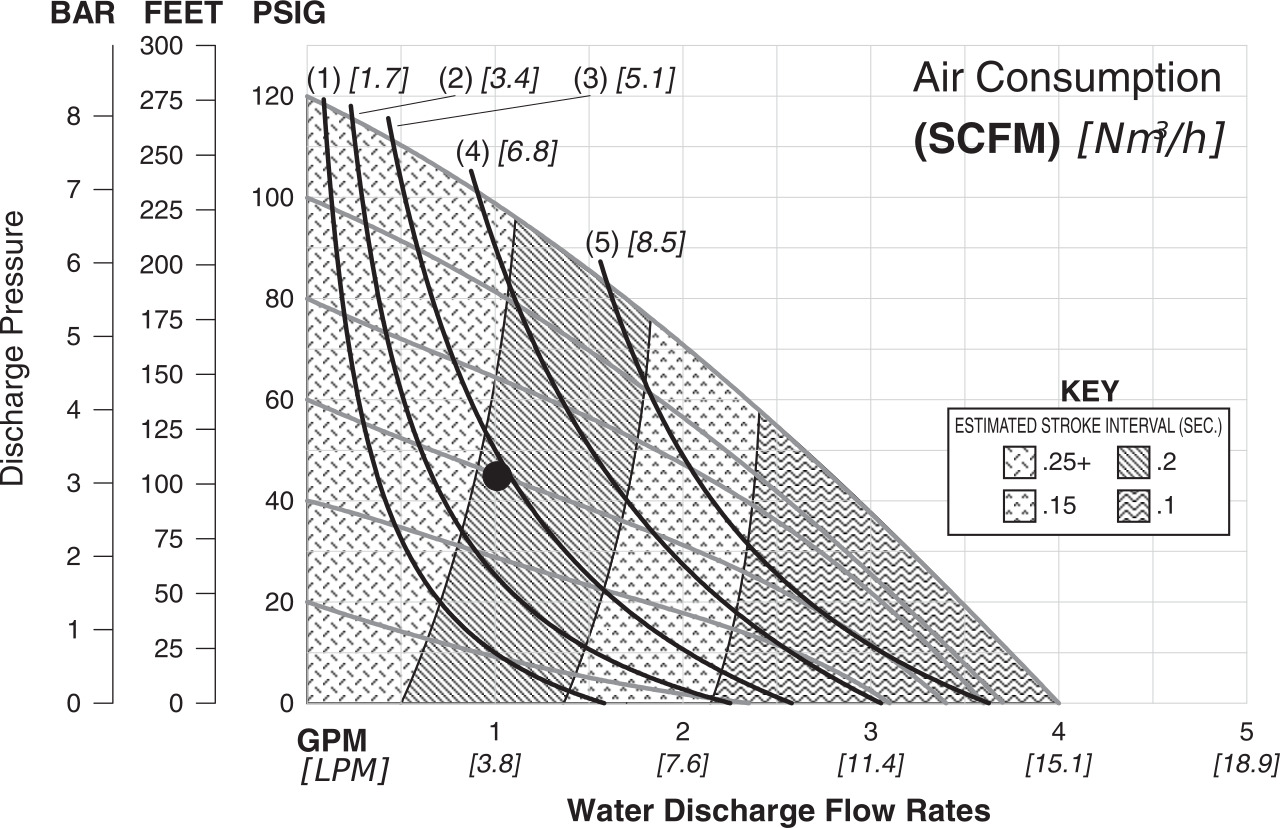

Max Flow Rate:
4.1
Flow Rate 40 Psi:
3.2
Flow Rate 50 Psi:
3.0
Flow Rate 60 Psi:
2.7
Flow Rate 70 Psi:
2.3
Flow Rate 80 Psi:
1.7
Flow Rate 90 Psi:
1.2
Flow Rate 100 Psi:
0.7
Flow Rate 120 Psi:
0.0
Max Suction Lift Dry:
14.7
Max Operating Temperature:
175.0
Min Operating Temperature:
40.0
Max Viscosity:
125000
Max Air Consumption:
6.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight:
11.12
Country Of Origin:
UNITIED STATES
