Attributes for item 00-10064
Model (in.):
0.25
Technical Construction:
Clamped
Wetted Path Material:
Stainless Steel
Diaphragm Material:
EPDM
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
0.5
Inlet Orientation:
Side Right
Discharge Size (in.):
0.25
Discharge Orientation:
Side Right
Outer Piston Materials:
Stainless Steel
Air Side Material:
Polypropylene
Valve Material:
PTFE
Valve Type:
Valve Ball
Valve Seat MATERIAL:
Stainless Steel
O Rings Gasket Material:
Buna-N
Hardware Material:
Stainless Steel
Muffler Material:
Plastic
Self Priming:
TRUE
Power Source:
Compressed Air
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.02

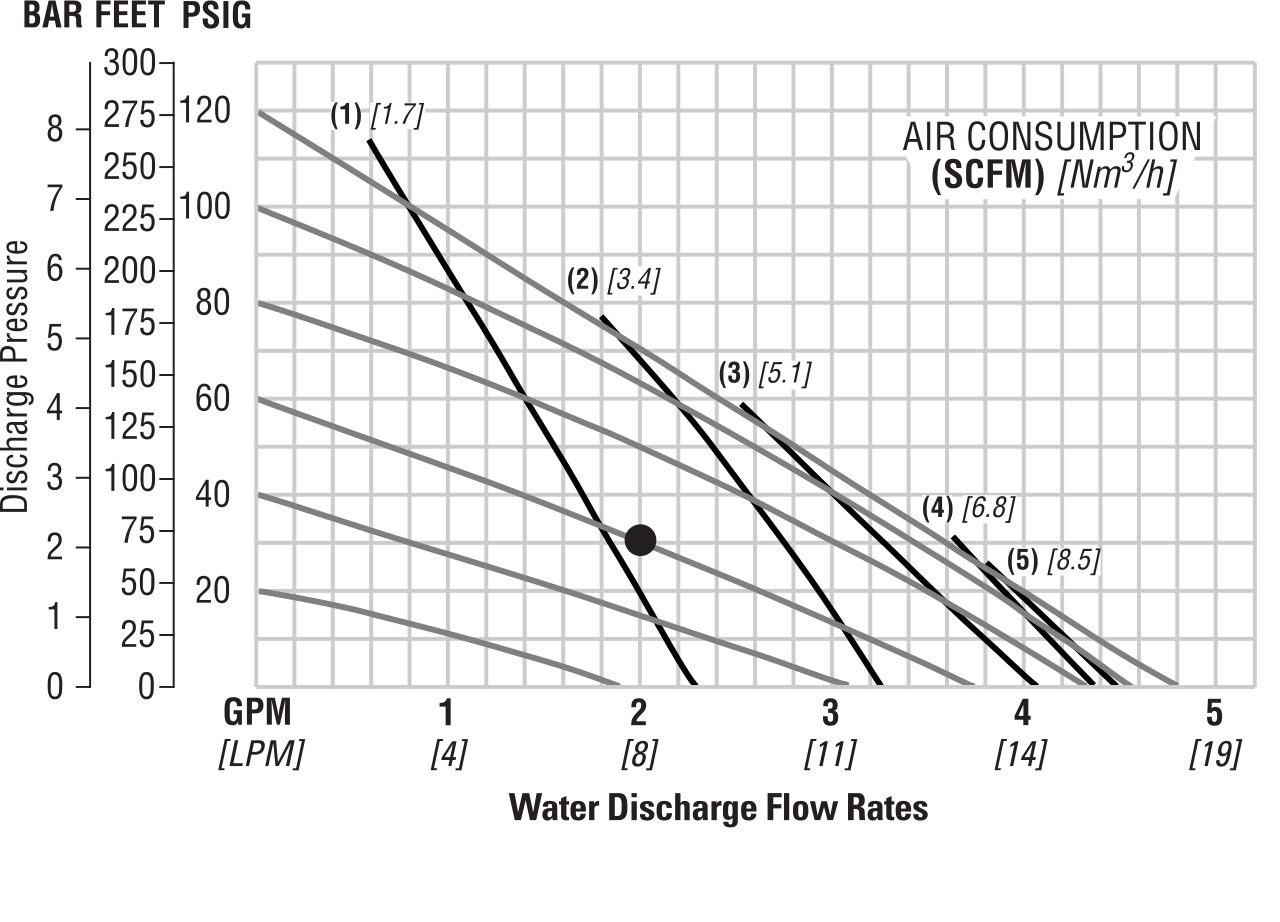

Max Flow Rate (gpm):
5.0
Flow Rate 40 Psi (gpm):
4.0
Flow Rate 50 Psi (gpm):
3.6
Flow Rate 60 Psi (gpm):
3.3
Flow Rate 70 Psi (gpm):
2.8
Flow Rate 80 Psi (gpm):
2.2
Flow Rate 90 Psi (gpm):
1.5
Flow Rate 100 Psi (gpm):
0.8
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
10.67
Max Suction Lift Wet (ft.):
30.5
Max Operating Temperature (°F):
175.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
7.0
Atex Rated:
FALSE
CE:
TRUE
UKCA:
TRUE
FDA:
FALSE
3A:
FALSE
EHEDGE:
FALSE
UL:
FALSE
CSA:
FALSE
Shipping Weight (lbs):
10.7
Country Of Origin:
USA
