Item: HYD117948WSP
Description: Water-Driven Pump, with a dilution range of (1:128 (0.8%) - 1:20 (5%)), and a flow rate up to 11 GPM.

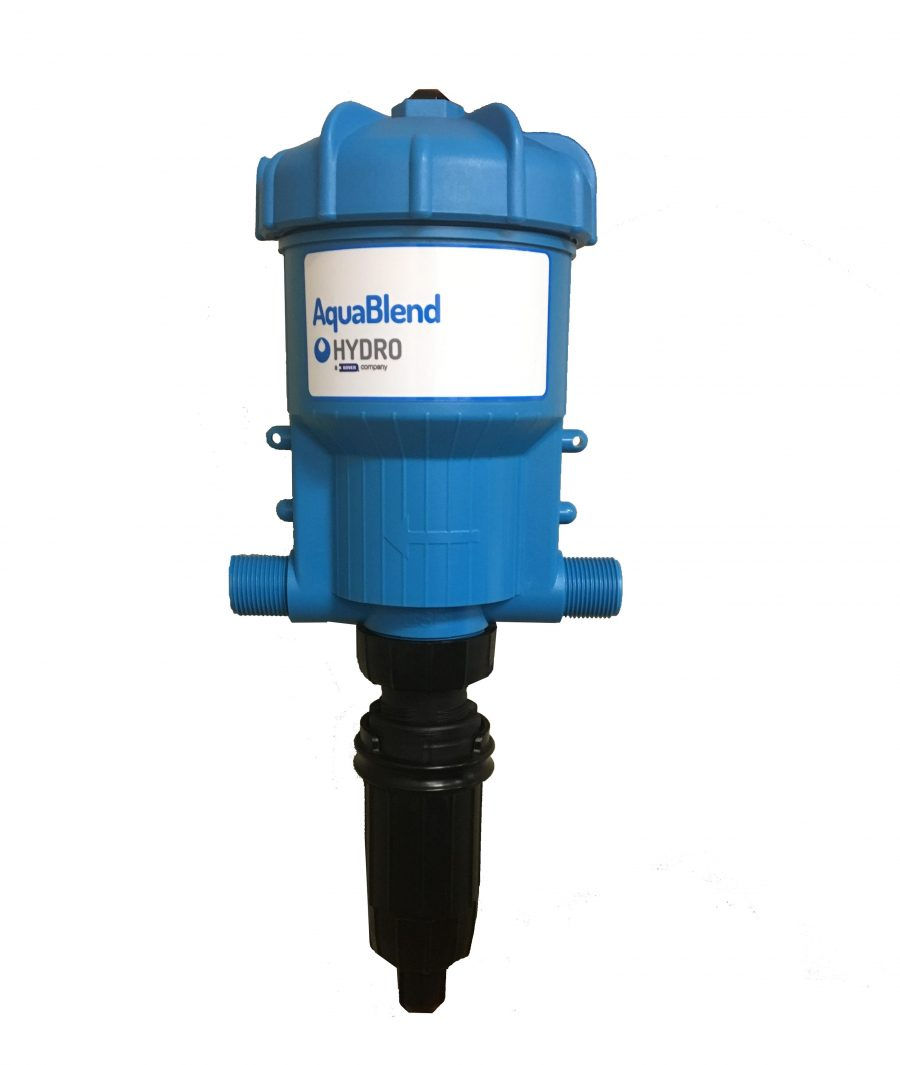

HYD117948WSP-product image
ImageSetByPath

AquaBlend WSP NPT Adjustable 5% Water Driven Pump - HYD117948WSP

Item: HYD117948WSP
Description: Water-Driven Pump, with a dilution range of (1:128 (0.8%) - 1:20 (5%)), and a flow rate up to 11 GPM.
  • Maximum Vertical Suction Of Concentrate: 12
  • Max Operating Pressure: 90 PSI
  • Max Flow Rate (gpm): 11.0

Resolve Pay Buy now, pay later

Net 30 credit terms
0% interest for 30 days Get Approved Today
Attributes for item HYD117948WSP
Model (in.):
AquaBlend
Self Priming:
Yes
Max Flow Rate (gpm):
11.0
Max Viscosity (cP):
2,000
Shipping Weight (lbs):
4
Country Of Origin:
United States
Average Dosing Accuracy:
+/- 5% of Ratio
Fluid Maximum Temprature:
100°F
Fluid Minimum Temprature:
34°F
Housing:
Acetal
Inlet Outlet Thread Type:
NPT
Market Type:
Animal Health | Horticulture
Max Operating Pressure:
90 PSI
Maximum Horizontal Suction Of Concentrate:
49
Maximum Vertical Suction Of Concentrate:
12
Min Flow Rate:
0.04
Min Operating Pressure:
5
Package Quantity:
1
Family:
AquaBlend
Repeatability:
+/- 3% of Ratio
Seal Material Available:
Aflas — Alkaline Concentration | Viton — Acids, Oils and Pesticides |EPDM — Alkaline Concentrates | Kalrez
Seal Type:
Viton
Lead Time (days):
15
Pipe Coupling:
3/4" NPT/GHT/BNP
Show All Attributes
Show Fewer Attributes
Recommended Products
Spare Parts for item HYD117948WSP
Item Overview for Hydro HYD117948WSP
Built for Chemical Delivery and Line Cleaning Solutions, the AquaBlend WSP NPT Adjustable 5% Water Driven Pump provides a focused Hydro Systems solution for controlled controlled fluid or chemical transfer. The equipment is characterized by Water-Driven Pump, with a dilution range of (500:1 (02%) to 20:1 (5%)), and a flow rate up to 11 GPM, matching the supplied description of Water-Driven Pump, with a dilution range of (500:1 (02%) to 20:1 (5%)), and a flow rate up to 11 GPM. The feature set centers in part on Not only is the AquaBlend water-driven pump specifically engineered to accurately inject chemistry into water, it lasts up to 12 million cycles before maintenance is..., giving operators a practical advantage for consistent controlled fluid or chemical transfer in Chemical Delivery and Line Cleaning Solutions. Use cases identified for the item include Chemical Delivery and Line Cleaning Solutions, across markets such as Animal Health and Horticulture, where the product can support horticulture and animal health applications. Keeping item HYD117948WSP on the purchase or maintenance record helps distinguish this configuration, and checking HYD117948WSP again can simplify replacement and compatibility verification.
