Attributes for item S100-NAA-V5AV-B30
Model (in.):
1
Technical Construction:
BOLTED
Wetted Path Material:
ALUMINUM
Diaphragm Material:
FKM
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
FNPT
Inlet Size (in.):
1.0
Inlet Orientation:
CENTER HORIZONTAL FRONT
Discharge Size (in.):
1.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
ALUMINUM
Air Side Material:
ALUMINUM
Valve Material:
Buna-N (FDA)
Valve Type:
MAX PASS
Valve Seat MATERIAL:
ALUMINUM
O Rings Gasket Material:
FKM
Hardware Material:
ZINC PLATED
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/2" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.75

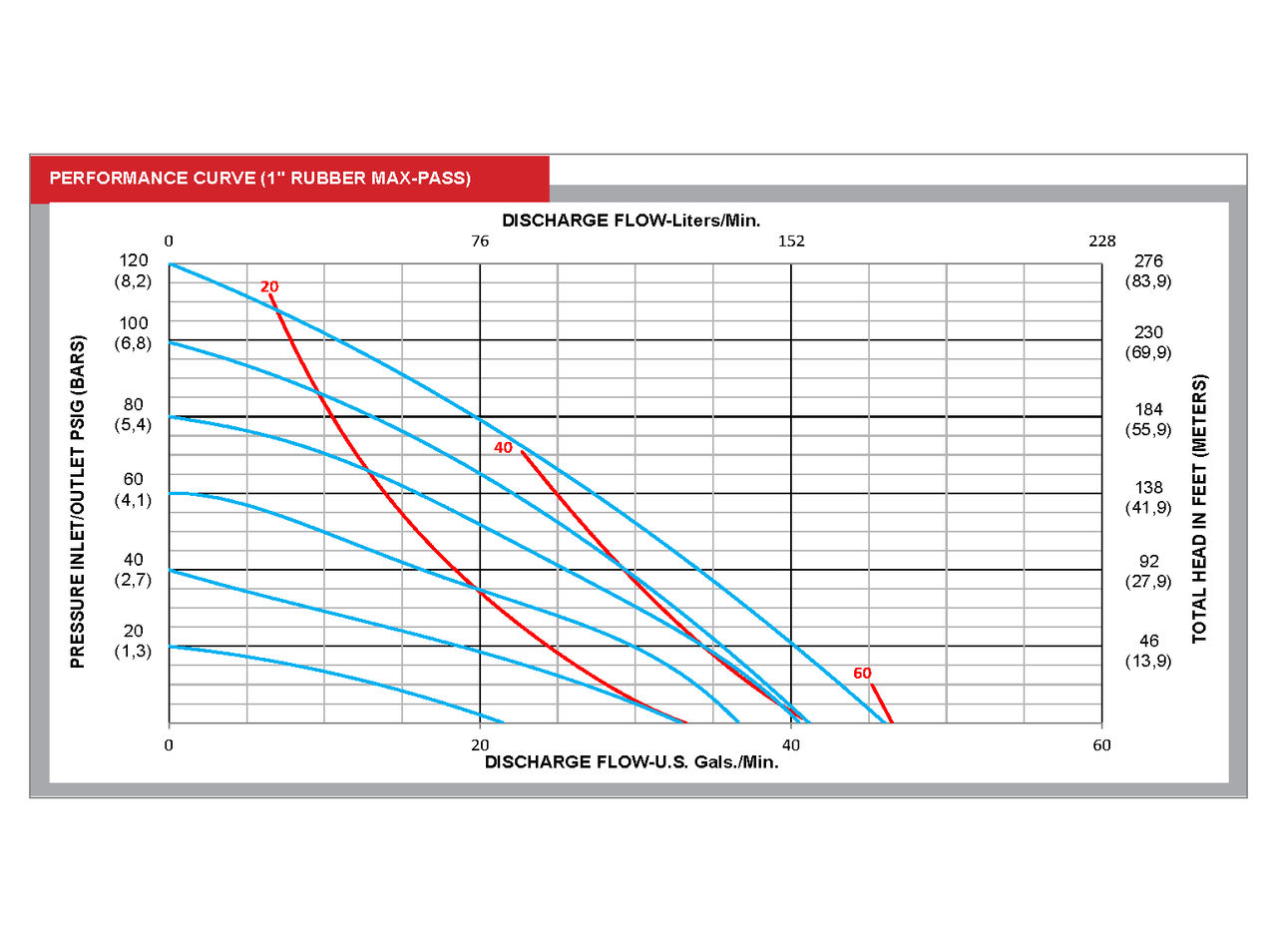

Max Flow Rate (gpm):
46.0
Flow Rate 60 Psi (gpm):
27.0
Flow Rate 70 Psi (gpm):
24.0
Flow Rate 80 Psi (gpm):
20.0
Flow Rate 100 Psi (gpm):
11.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
18.0
Max Suction Lift Wet (ft.):
27.5
Max Operating Temperature (°F):
350.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
60.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
26
Shipping Dimensions:
16-5/8"X9-5/8"X13-5/8"
Country Of Origin:
USA
