Attributes for item S050-SPK-SEKE-S70
Model (in.):
0.5
Technical Construction:
BOLTED
Wetted Path Material:
PVDF
Diaphragm Material:
Santoprene®
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
FNPS (FNPT/FBSP)
Inlet Size (in.):
0.5
Inlet Orientation:
SIDE RIGHT
Discharge Size (in.):
0.5
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
EPDM
Valve Type:
MAX PASS
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
EPDM
Hardware Material:
SS
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/4" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.38

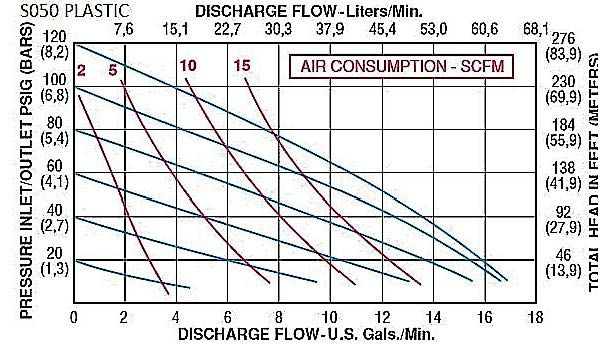

Max Flow Rate (gpm):
17.0
Flow Rate 60 Psi (gpm):
11.7
Flow Rate 70 Psi (gpm):
9.0
Flow Rate 80 Psi (gpm):
7.8
Flow Rate 100 Psi (gpm):
4.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
20.0
Max Suction Lift Wet (ft.):
30.0
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
0.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
20.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
14
Shipping Dimensions:
12"X8"X13-5/16"
Country Of Origin:
USA
