Attributes for item G200-TJ3-MMXT-GF0
Model (in.):
2
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
EPDM|FDA
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
2.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYETHYLENE|CONDUCTIVE
Valve Material:
EPDM (FDA)
Valve Type:
BALL
Valve Seat MATERIAL:
NONE
O Rings Gasket Material:
PTFE
Hardware Material:
SS
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/2" FNPT
Maximum Allowable Operating Pressure (psig):
100.0
Max Air Pressure (psig):
100.0
Max Diameter Solids (in.):
0.562

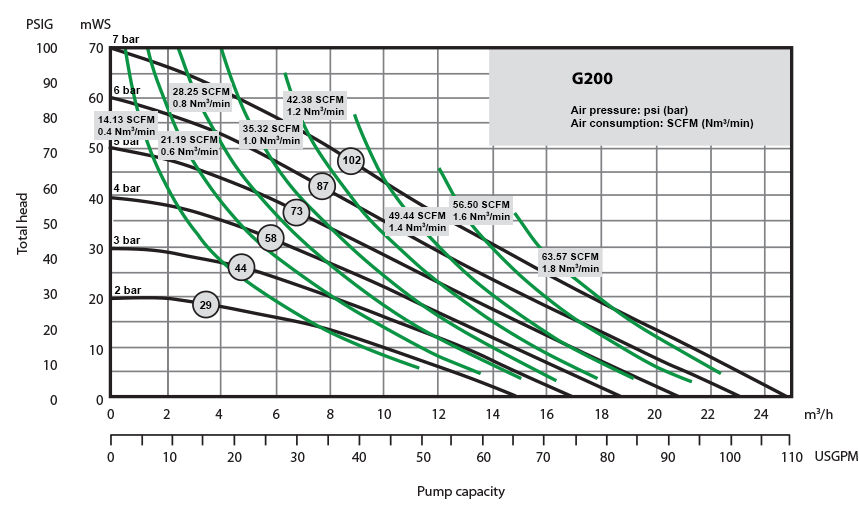

Max Flow Rate (gpm):
106.0
Flow Rate 40 Psi (gpm):
67.0
Flow Rate 50 Psi (gpm):
55.0
Flow Rate 60 Psi (gpm):
48.0
Flow Rate 70 Psi (gpm):
35.0
Flow Rate 80 Psi (gpm):
30.0
Flow Rate 90 Psi (gpm):
17.0
Flow Rate 100 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
9.8
Max Suction Lift Wet (ft.):
29.5
Max Operating Temperature (°F):
280.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
63.57
ATEX Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
64
Country Of Origin:
USA
Family:
HYGENIC/FDA
Lead Time (days):
25
